Name: airMAX 5 GHz, 10 dBi Omni Antenna
Brand: Ubiquiti
SKU: AMO-5G10
Availability: InStock

Designed for seamless integration.

Provides powerful 360° coverage, 2x2 MIMO performance in Line‑of‑Sight (LoS) or Non‑Line‑of‑Sight (NLoS) applications. Every airMAX Omni antenna has a built-in Rocket mount, so installation requires no special tools.

AMO-2G13

2.4 GHz, 13 dBi carrier-class 2x2 MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios.

UISP airMAX Omni 2.4 GHz, 13 dBi Antenna

airMAX 2.4 GHz, 13 dBi, Omni

airMAX 2.4 GHz, 13 dBi Omni Antenna

Default

AMO-2G10

2.4 GHz, 10 dBi carrier-class 2x2 dual-polarity MIMO omnidirectional antenna.

airMAX 2.4 GHz, 10 dBi Omni Antenna

airMAX 2.4 GHz, 10 dBi Omni

5 GHz, 13 dBi carrier-class 2x2 MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios.Provides powerful 360° coverage, 2x2 MIMO performance in Line‑of‑Sight (LoS) or Non‑Line‑of‑Sight (NLoS) applications. Every airMAX Omni antenna has a built-in Rocket mount, so installation requires no special tools.Features:<ul><li>Patented, dual-polarity omni design</li><li>Robust mechanical design for outdoor application use</li><li>Plug and play integration</li></ul>

AMO-5G13

5 GHz, 13 dBi carrier-class 2x2 dual-polarity MIMO omnidirectional antenna.

airMAX Omni 5 GHz, 13 dBi Antenna

airMAX 5 GHz, 13 dBi, Omni

AMO-5G10

5 GHz, 10 dBi carrier-class 2x2 dual-polarity MIMO omnidirectional antenna.

AMO-5G10

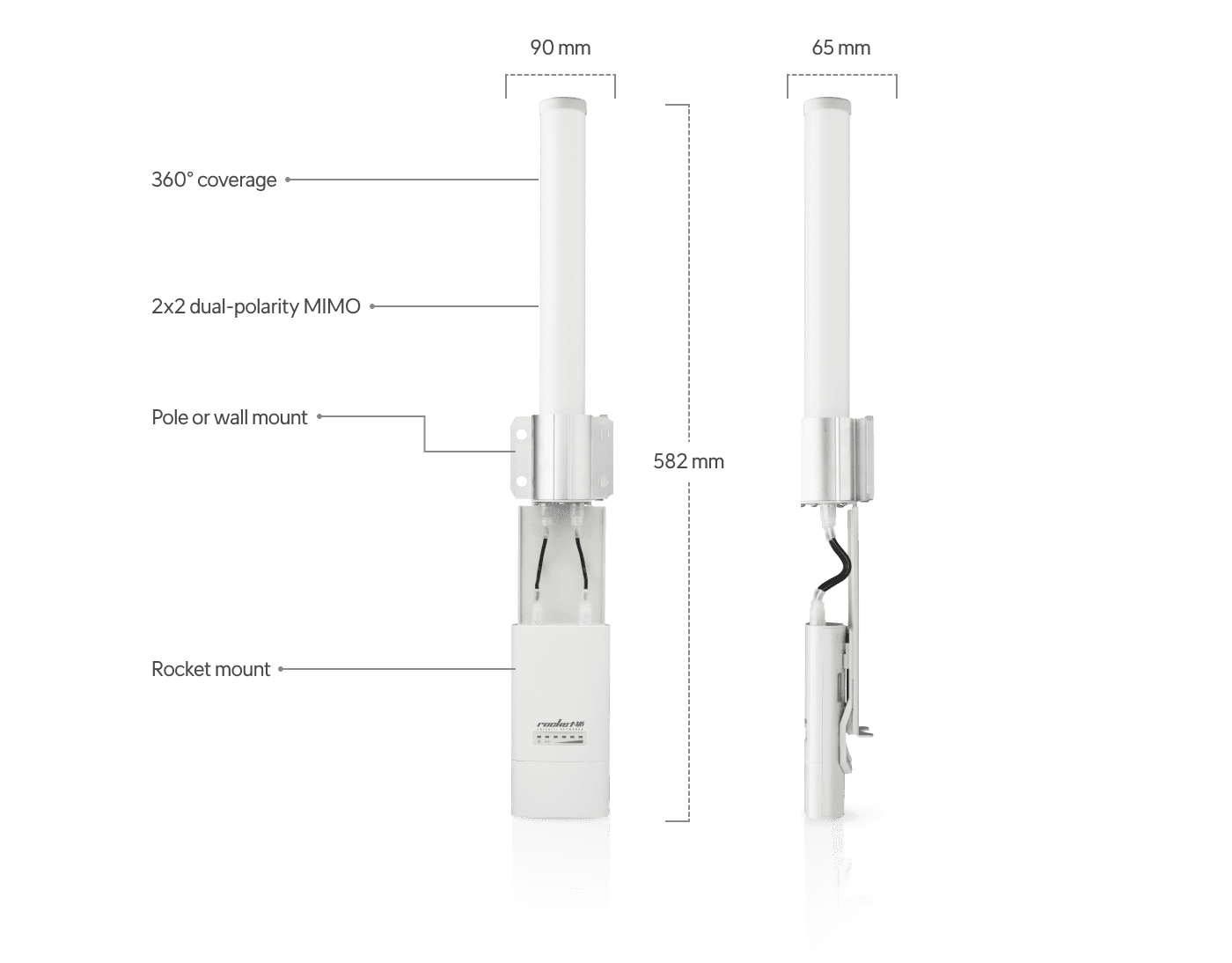

Dimensions	582 x 90 x 65 mm (22.9 x 3.5 x 2.6")
Weight	680 g (1.5 lb)
Frequency Range	5.45 - 5.85 GHz
Gain	10 dBi
Elevation Beamwidth	12°
Max. VSWR	1.6:1
Downtilt	4°
Wind Survivability	200 km/h (125 mph)
Wind Loading	44.5 N @ 160 km/h (10 lbf @ 100 mph)
Polarization	Dual-Linear
Cross-pol Isolation	25 dB min.
ETSI Specification	EN 302 326 DN2
Mounting	Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
