A fail-safe magnetic lock that connects to a UA Hub so you can unlock outfitted inswing and outswing doors from anywhere. This 12V DC-powered lock holds between 270-540 kg (600-1,200 lb), depending on your selection, and sends real-time access and status details to your UA Hub. This lock can be installed on a wide variety of door types.

UA-Lock-Magnetic

Holding force

Holds up to 270 kg (600 lb)

Holds up to 540 kg (1200 lb)

Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub (UA Hub).

Access Magnetic Lock

Magnetic Lock

Connects an electric/magnetic lock to an Access Hub.

UACC-Cable-DoorLockRelay

Variant

1-Pair Relay Cable

2-Pair Relay Cable

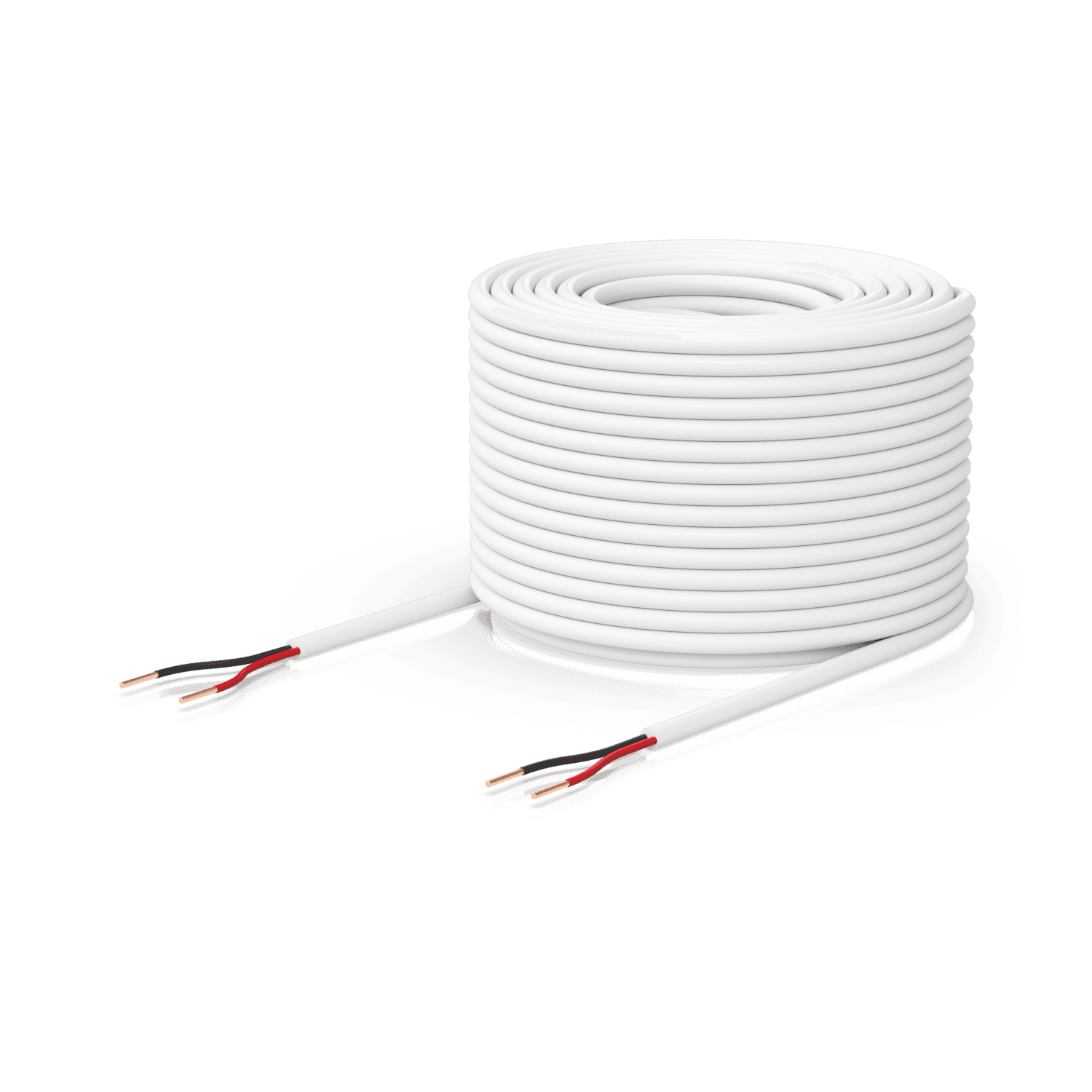

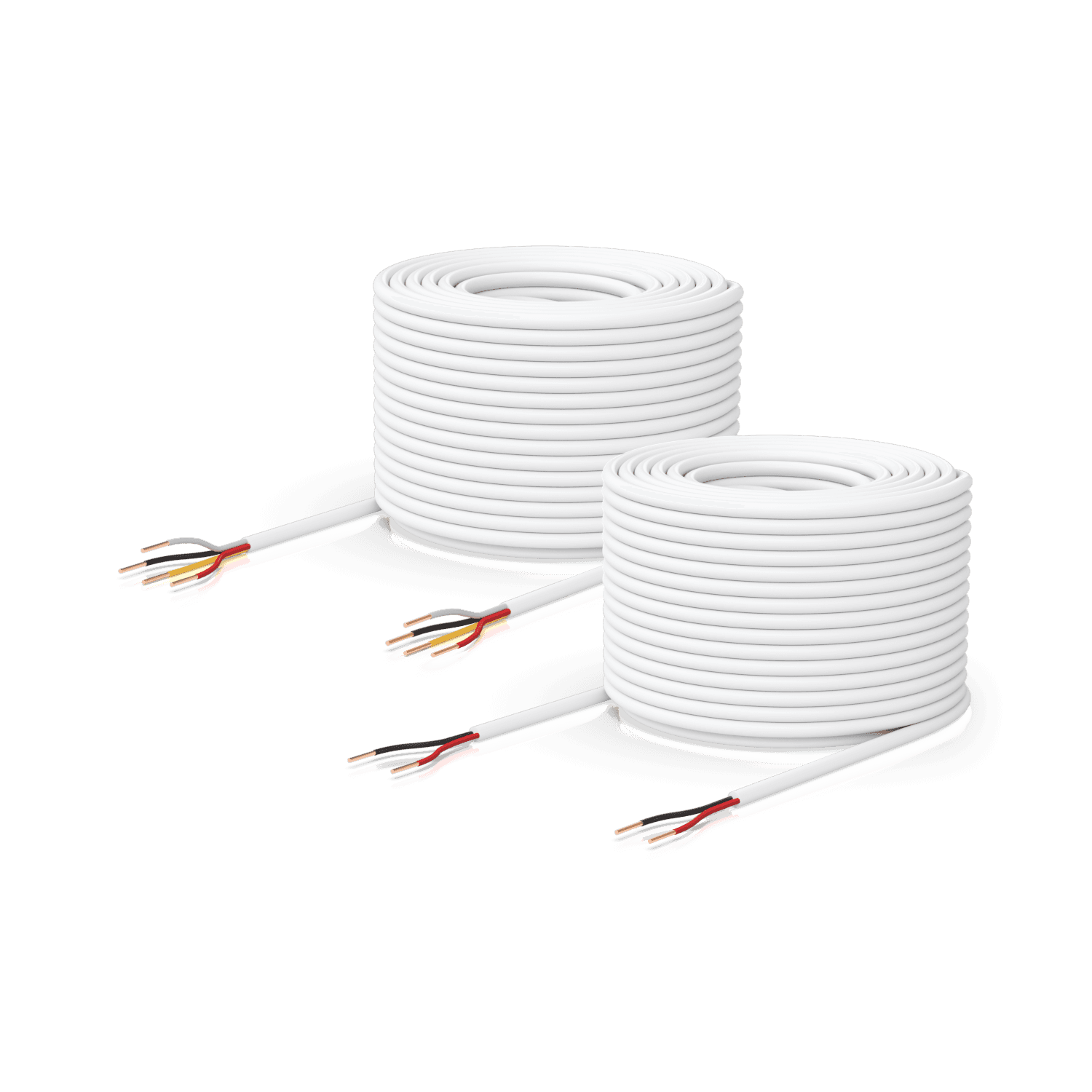

A 500-foot (152.4 m) spool of one or two-pair, low-voltage cable.

Door Lock Relay Cable

The UniFi Access Rescue KeySwitch is a single pole dual throw manual KeySwitch designed to work with the UniFi Access system. In the event of a system malfunction, the UA-Rescue KeySwitch allows for a user to manually unlock any door controlled by the UniFi Access Hub. Compatible with both Fail Safe and Fail Secure lock systems, the UniFi Access Rescue KeySwitch is an integral part of any robust Door Access solution.

UA-Rescue

Emergency KeySwitch providing open door redundancy in the event of a system malfunction.

Access Rescue KeySwitch

Keyed emergency override for your Access Hub.

Default

A fail-secure electric strike lock that allows you to unlock outfitted doors from anywhere. Built for strength and longevity, the UA Lock Electric can complete up to 1 million open-close cycles and hold up to 1,200 kg (2,500 lb). This versatile lock can be installed on an aluminum, steel, or wooden door frame, so you can place it wherever you need to enhance your door security. This 12V DC-powered lock also meets all applicable ANSI safety standards and can be connected to a UA Hub in minutes.

UA-Lock-Electric

Fail-secure electric strike lock that connects to a UniFi Access Hub (UA Hub) and holds up to 1,200 kg (2,500 lb).

Access Electric Lock

Fail-secure electric strike lock that connects to a UniFi Access Hub (UA Hub).

Electric Lock

UniFi Access Intercom surface angle mount accessory.

UACC-Intercom-SAM

UniFi Access Intercom surface angle mount accessory.

Access Intercom Surface Angle Mount

Intercom Surface Angle Mount

UniFi Access Intercom flush mount accessory.

UACC-Intercom-FM

UniFi Access Intercom flush mount accessory.

Access Intercom Flush Mount

Intercom Flush Mount

UniFi Access Intercom sunshield accessory

UACC-Intercom-Sunshield

UniFi Access Intercom sunshield accessory.

Access Intercom Sunshield

Intercom Sunshield

The card data is encrypted with both AES-128 and with UniFi Access proprietary security mechanism. These additional security measures protect the card number from leaks and duplication.

UA-Card

A pack of (20) highly secure NFC cards used with our Access Readers to unlock doors.

Access Card

Highly secure NFC smart fob that uses multi-layer encryption, including proprietary UniFi Access security protocols.

UA-Pocket

Highly secure NFC smart fob that uses multi-layer encryption, including proprietary UniFi Access security protocols.

Specifications
Weight	UACC-Cable-DoorLockRelay-2P: 5.6 kg kg (12.3 lb) UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb)
Cable length	152.4 m (500 ft)
Jacket OD	UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18") UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17")
Jacket material	Thermoplastic elastomer (TPE)
Jacket color	White
Conductor wire gauge	UACC-Cable-DoorLockRelay-2P: 18/22 AWG UACC-Cable-DoorLockRelay-1P: 18 AWG
Insulation material	Semi-rigid polyvinyl chloride (SR-PVC)

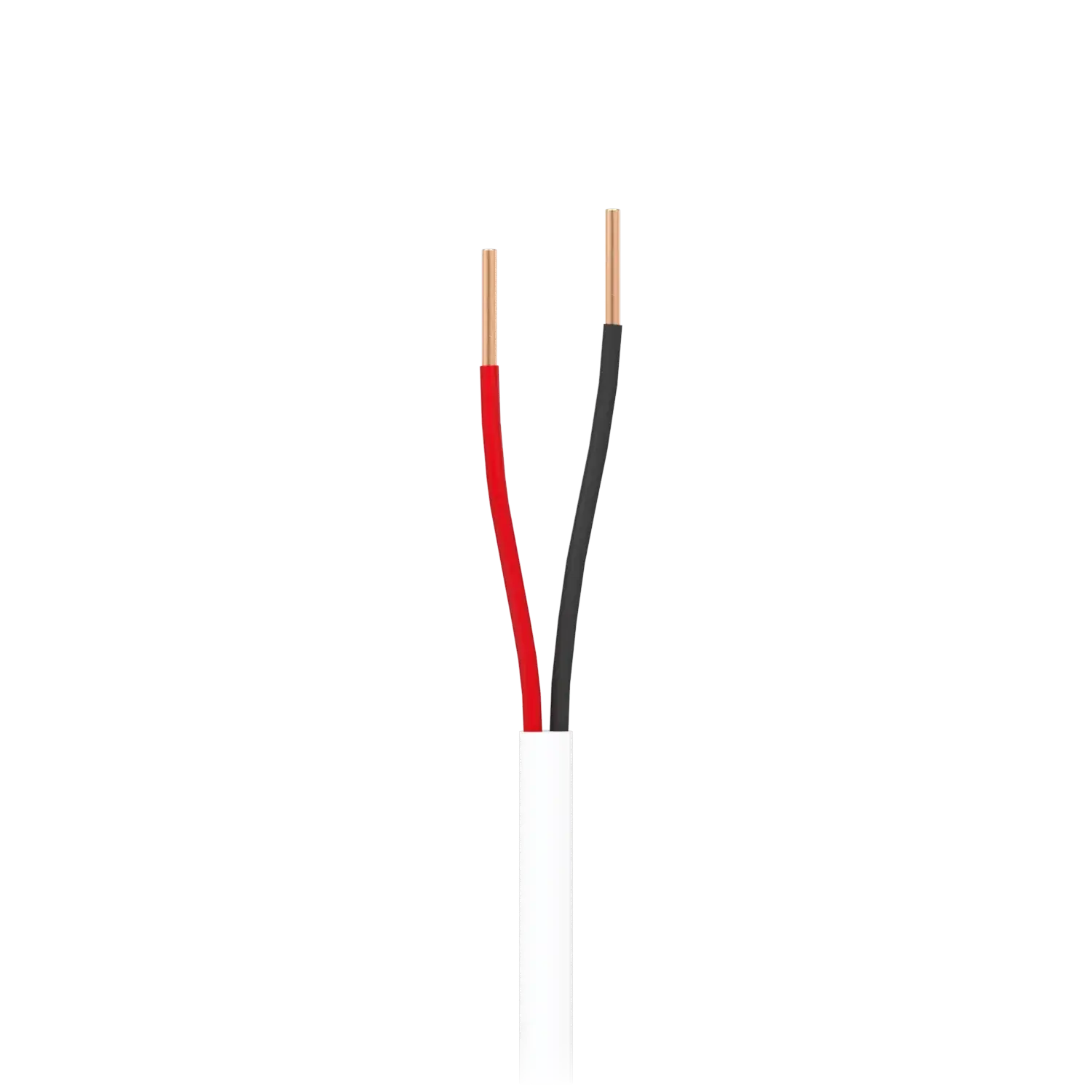

Insulation color	UACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG) UACC-Cable-DoorLockRelay-1P: black/red (18AWG)
Number of conductors	UACC-Cable-DoorLockRelay-2P: 4 UACC-Cable-DoorLockRelay-1P: 2
Conductor material	Solid bare copper
Max. pull tension	UACC-Cable-DoorLockRelay-2P: 24.2 kgf UACC-Cable-DoorLockRelay-1P: 16.4 kgf
Min. bend radius	UACC-Cable-DoorLockRelay-2P: 56 mm (2.2") UACC-Cable-DoorLockRelay-1P: 33 mm (1.3")
Conductor DCR	UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG) UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG)
Voltage	36V DC
Flame rating	VW-1
Current rating	18AWG: 2A for 500 ft length 22AWG: 1A for 500 ft length
Storage temperature	-45 to 65° C (-40 to 149° F)
Ambient operating temperature	-45 to 65° C (-40 to 149° F)
