Switch 48 (750W)
Standard 48 PoE Hi-Power (Gen1)
US-48-750W (750W)
$1,025.00
Sold Out
Layer 2, PoE switch with (48) GbE, PoE+ and 24V passive PoE RJ45 ports, (2) 1G SFP ports, and (2) 10G SFP+ ports.

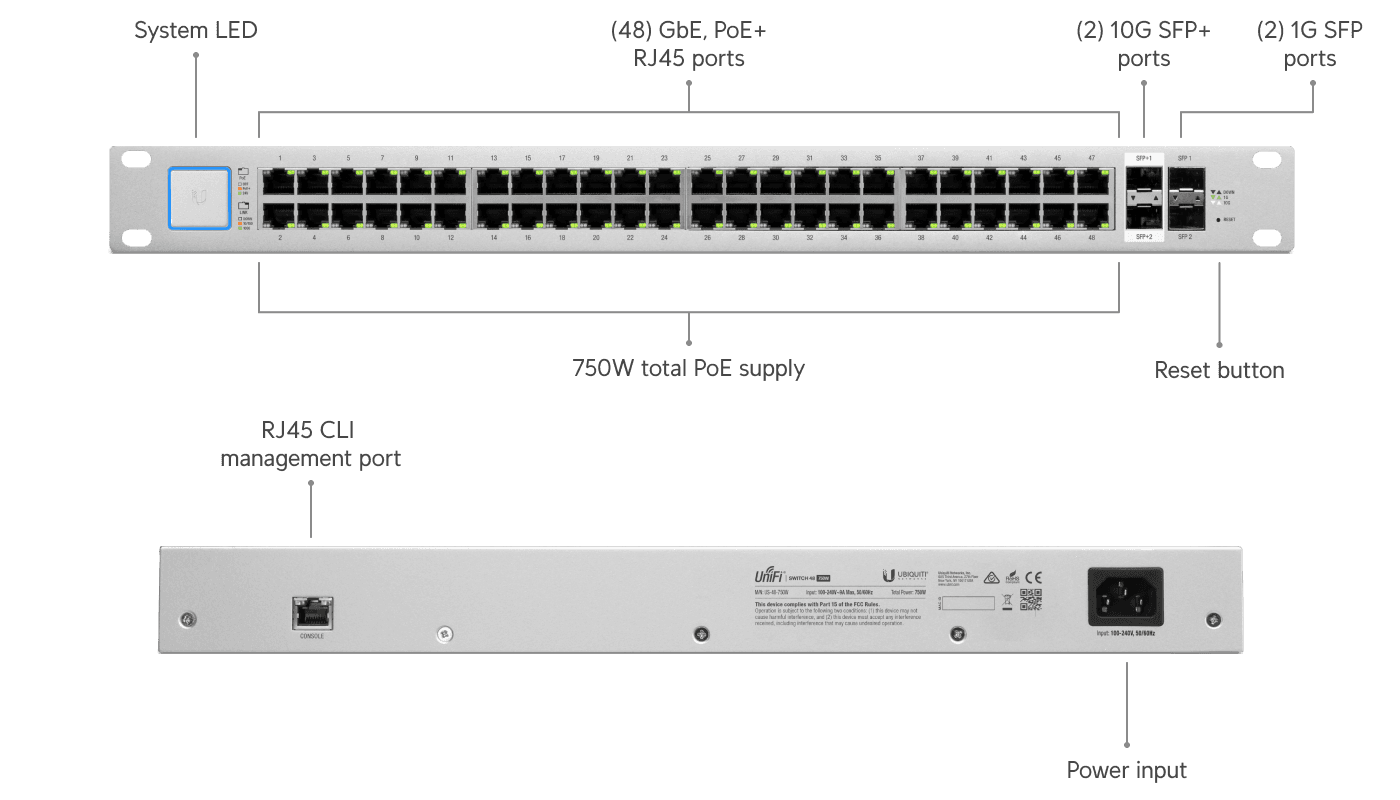

(48) GbE PoE+ ports
(2) 1G SFP, (2) 10G SFP+ ports
750W total PoE availability
To subscribe to back in stock emails.
Technical Specifications
| Mechanical | |
|---|---|

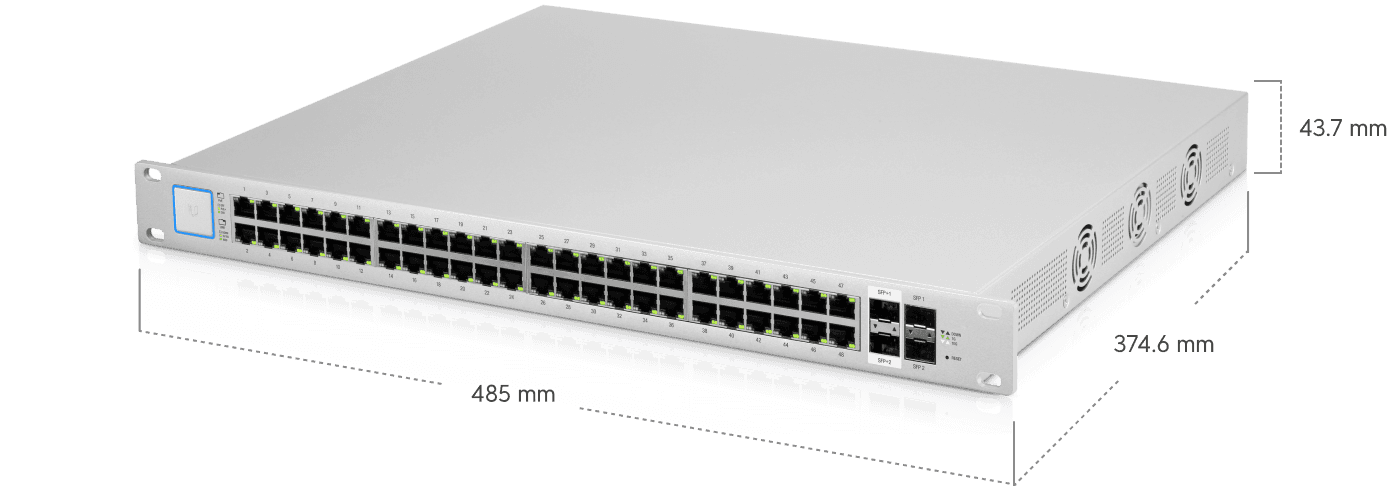

| Dimensions | 485 x 374.6 x 43.7 mm (19.1 x 14.8 x 1.7") |
| Weight | 6.5 kg (14.3 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band (1) RJ45 Serial port Out-of-Band |
| Networking interface | (48) GbE RJ45 ports (2) 1G SFP ports (2) 1/10G SFP+ ports |
| PoE interface | (48) PoE/PoE+ (Pins 1, 2+; 3, 6-)
24V DC passive PoE (Pins 4, 5+; 7, 8-) |
| Total non-blocking throughput | 70 Gbps |
| Switching capacity | 140 Gbps |
| Forwarding rate | 104.16 Mpps |
| Power method | Universal input, 100—240V AC, 50/60 Hz |
| Power supply | AC/DC, internal, 750W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | Excluding PoE output: 64W Including PoE output: 750W |
| Total available PoE | 750W |
| Max. PoE wattage per port by PSE | 24V Passive PoE: 17W PoE+: 34W |
| Voltage range PoE mode | 24V Passive PoE: 20–27V PoE+: 50—57V |
| ESD/EMP protection | Air: ± 24kV, contact: ± 24kV |
| Sound level* Fan level 0 Fan level 1 Fan level 2 Fan level 3 | 12.1 dBr 18.1 dBr 21.6 dBr 24.7 dBr * Background noise level: 27.5 dBa. |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | PoE Speed/Link/Activity |
| SFP | Speed/Link/Activity |
