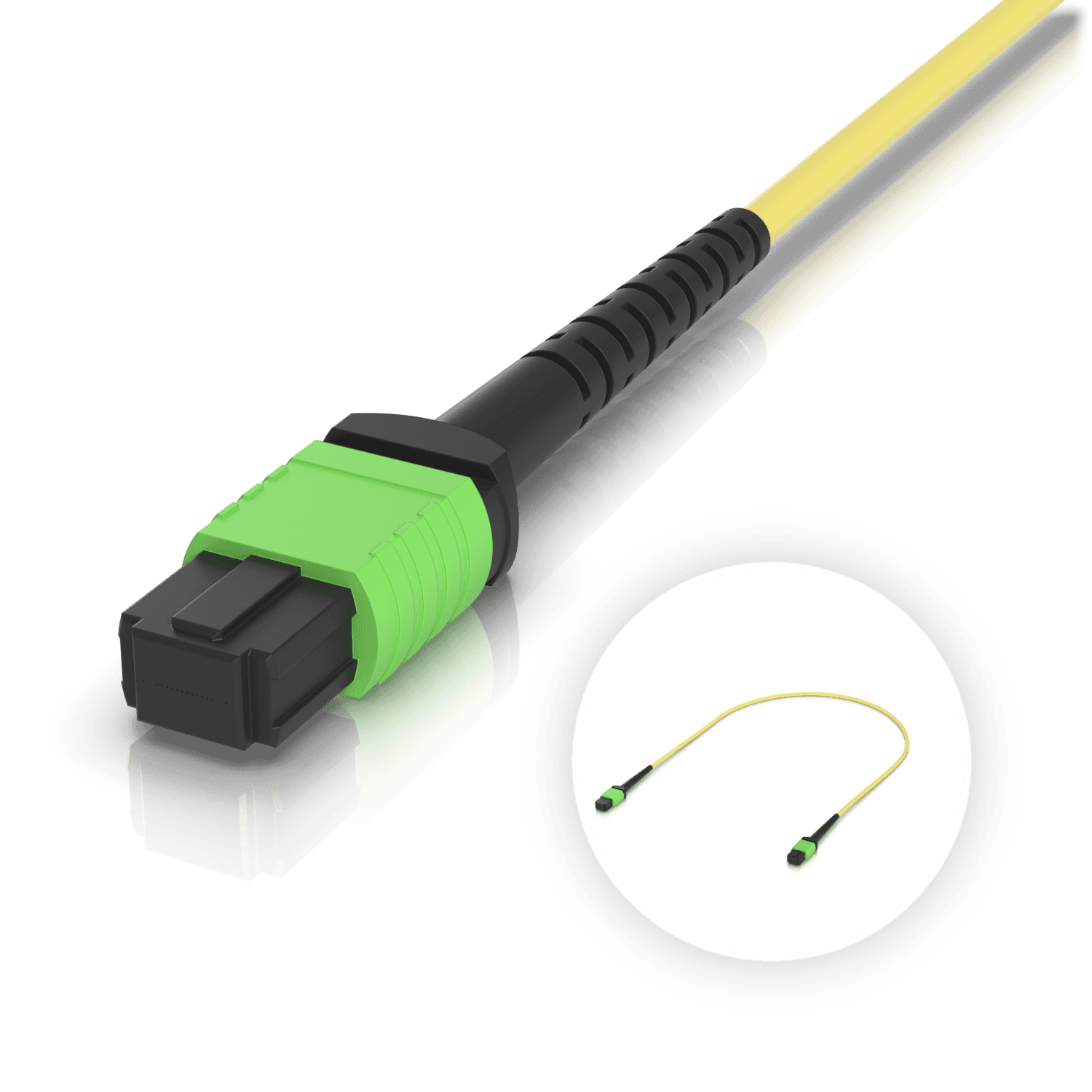

OS2 MPO-12 APC Fiber Patch Cable
UACC-OFC-SA-MPMP-0.5M
$66.00
OS2 MPO-12 APC Fiber Patch Cable
UACC-OFC-SA-MPMP-0.5M
$66.00
Indoor OS2 single-mode fiber patch cable with MPO-12 Type B APC connectors designed for 100G applications.
OS2 single-mode fiber
MPO-12 Type B APC connectors
Cable length: 0.5 to 10 m
$66.00
1
Technical
Available Lengths
0.5, 1, 3, 5, 10 m
(1.6, 3.3, 9.8, 16.4, 32.8 ft)
Pack Options
Single Unit
10-Pack (0.5/1/3m)
Connector
(2) MPO-12 Type B APC
Operating Environment
Indoor
Cable
Fiber Mode
OS2
Jacket Diameter
3 mm (0.12")
Jacket Material
Low smoke zero halogen (LSZH)
Jacket Color
Yellow
Wavelength
1310/1550 nm
Insertion Loss
≤ 0.6 dB
Return Loss
≥ 20 dB
Repeatability
≤ 0.1 dB
Durability
≤ 0.2 dB (1,000 times mating)
Ambient Operating Temperature
-40 to 75° C (-40 to 167° F)
