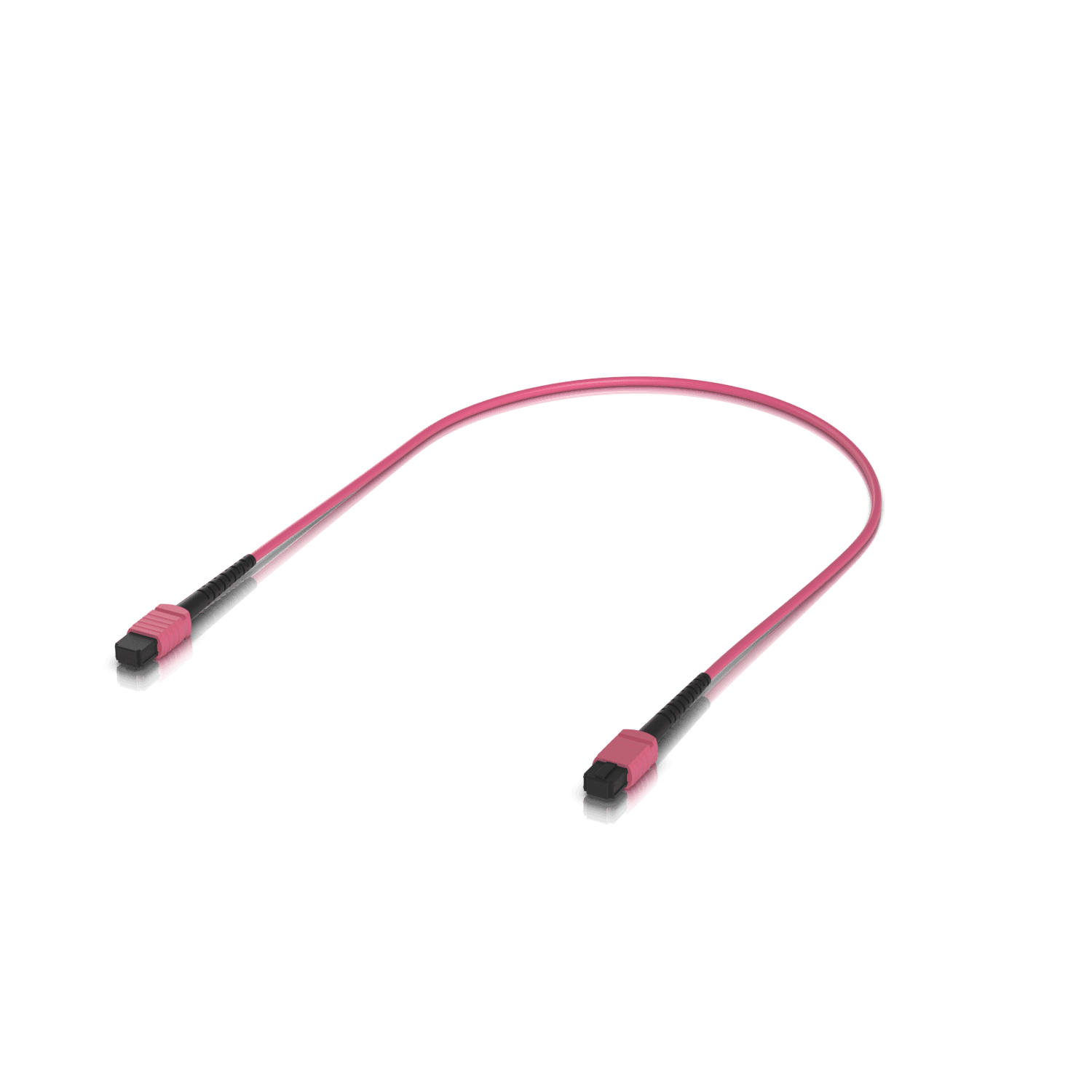

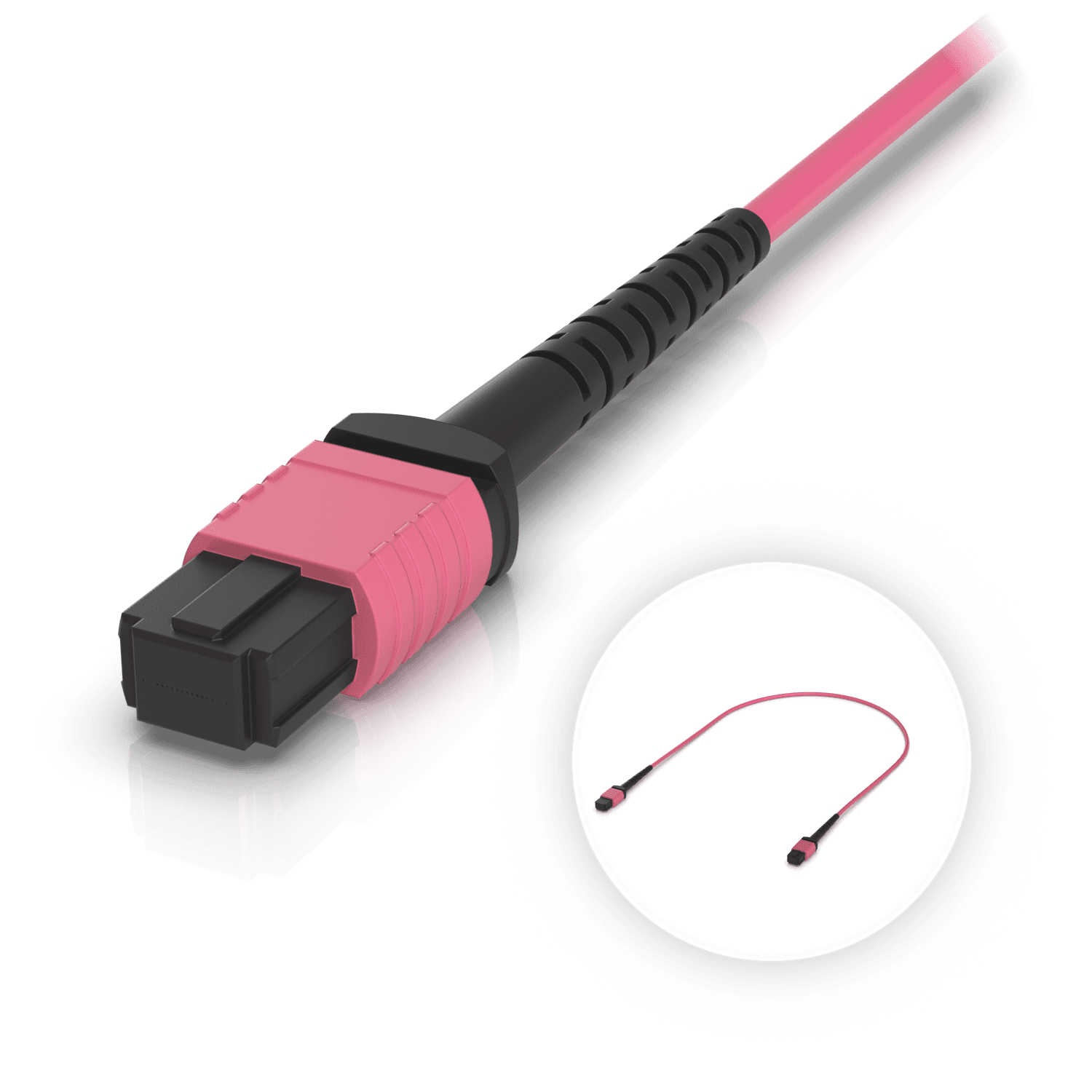

OM4 MPO-12 UPC Fiber Patch Cable
UACC-OFC-MA-MPMP-0.5M
$45.00
OM4 MPO-12 UPC Fiber Patch Cable
UACC-OFC-MA-MPMP-0.5M
$45.00
Indoor OM4 multi-mode fiber patch cable with MPO-12 Type B UPC connectors designed for 100G applications.
OM4 multi-mode fiber
MPO-12 Type B UPC connectors
Cable length: 0.5 to 100 m
$45.00
1
Technical
Available Lengths
0.5, 1, 3, 5, 10, 15, 30, 60, 100 m
(1.6, 3.3, 9.8, 16.4, 32.8, 49.2, 98.4, 196.9, 328 ft)
Pack Options
Single Unit
10-Pack (0.5/1/3 m)
Connector
(2) MPO-12 Type B UPC
Operating Environment
Indoor
Cable
Fiber Mode
OM4
Jacket Diameter
3 mm (0.12")
Jacket Material
Low smoke zero halogen (LSZH)
Jacket Color
Rose
Wavelength
850 nm
Insertion Loss
≤ 0.6 dB
Return Loss
≥ 20 dB
Repeatability
≤ 0.1 dB
Durability
≤ 0.2 dB (1,000 times mating)
Ambient Operating Temperature
-40 to 75° C (-40 to 167° F)
