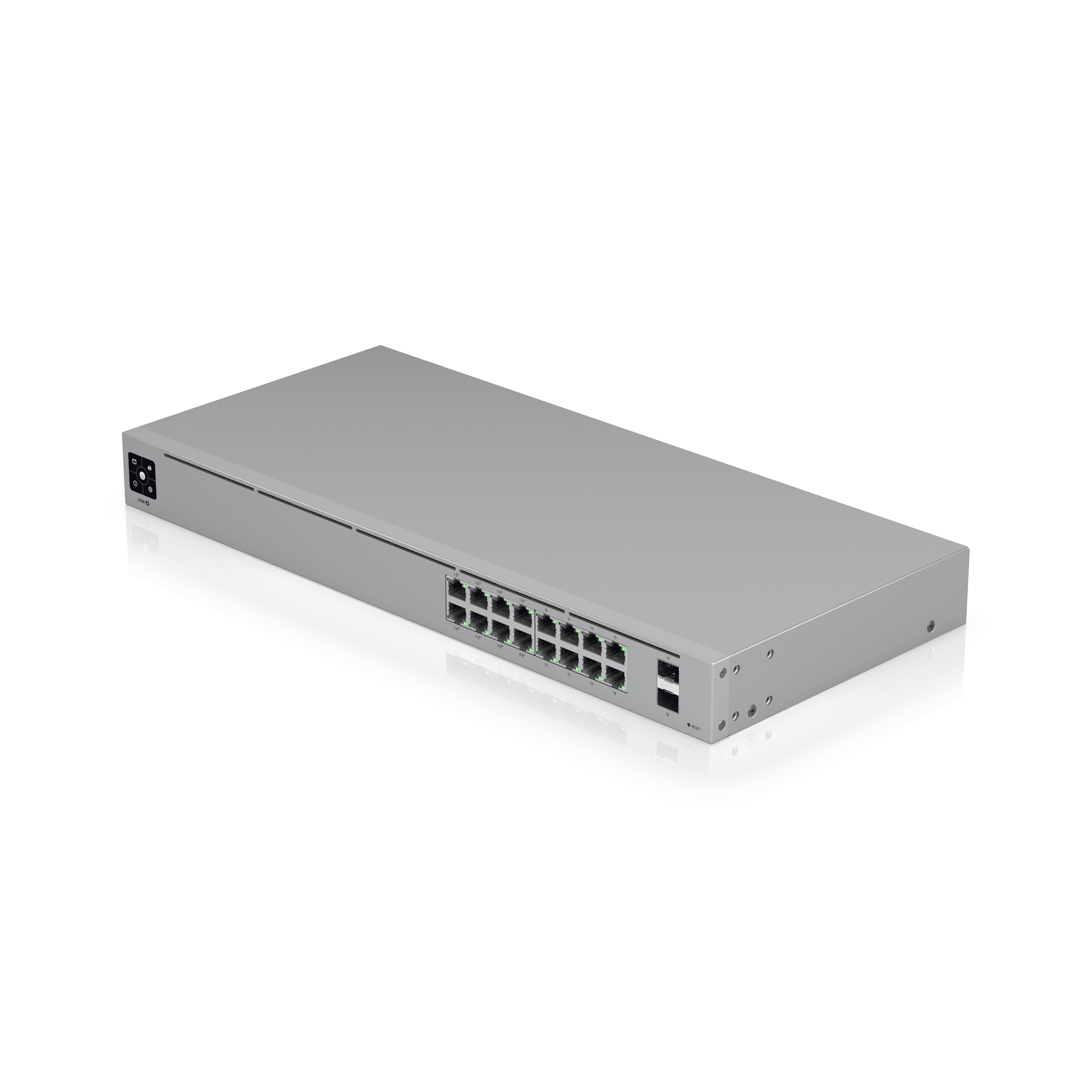

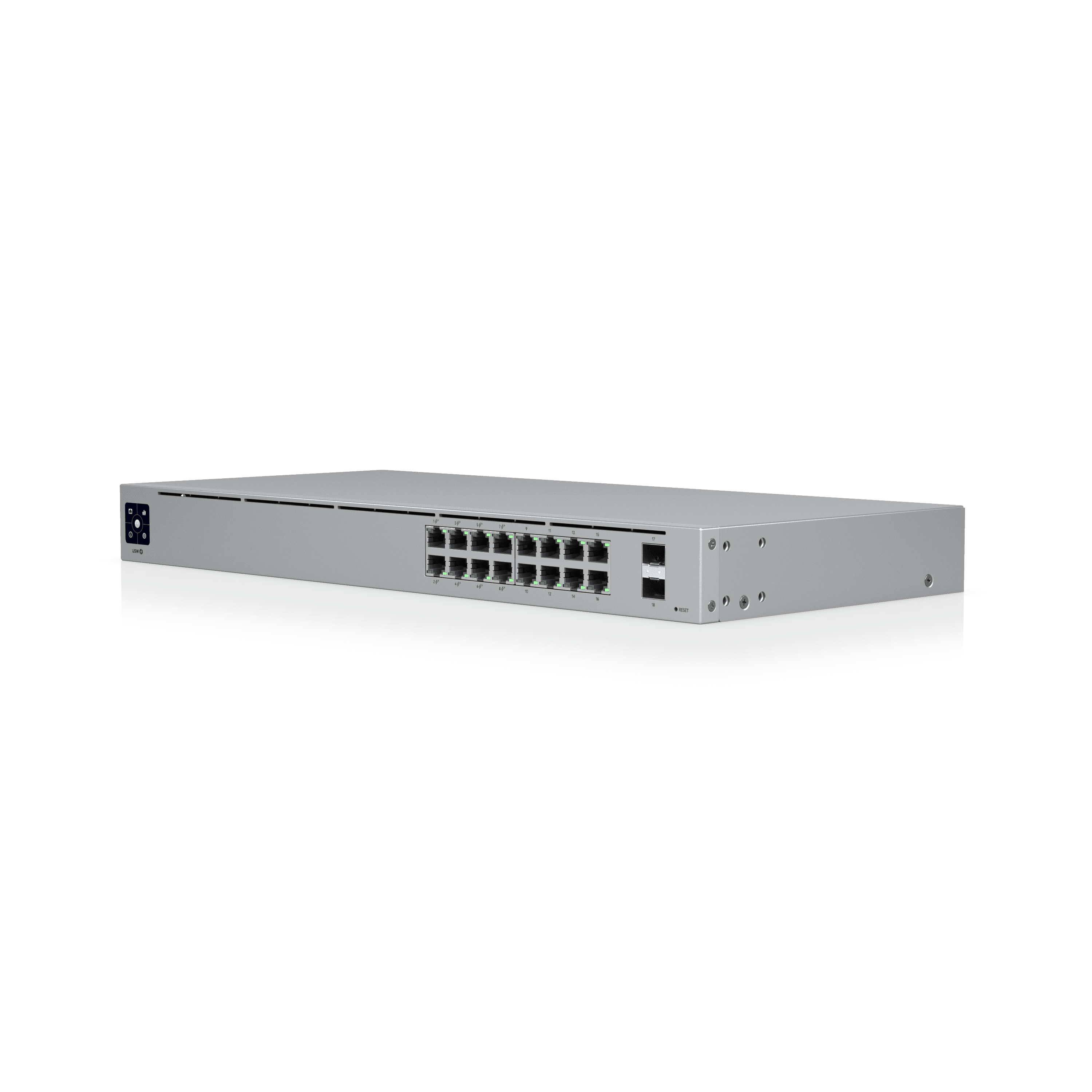

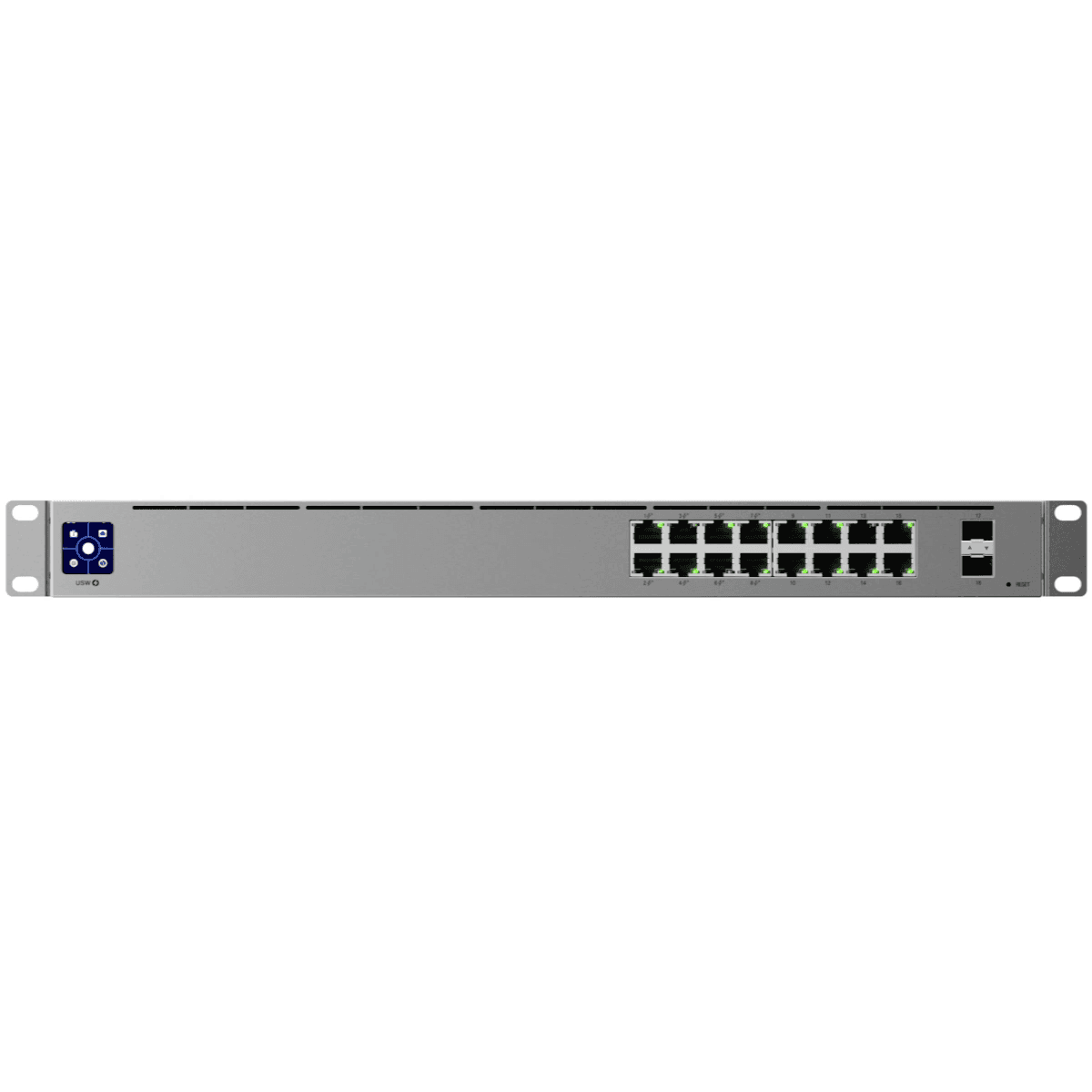

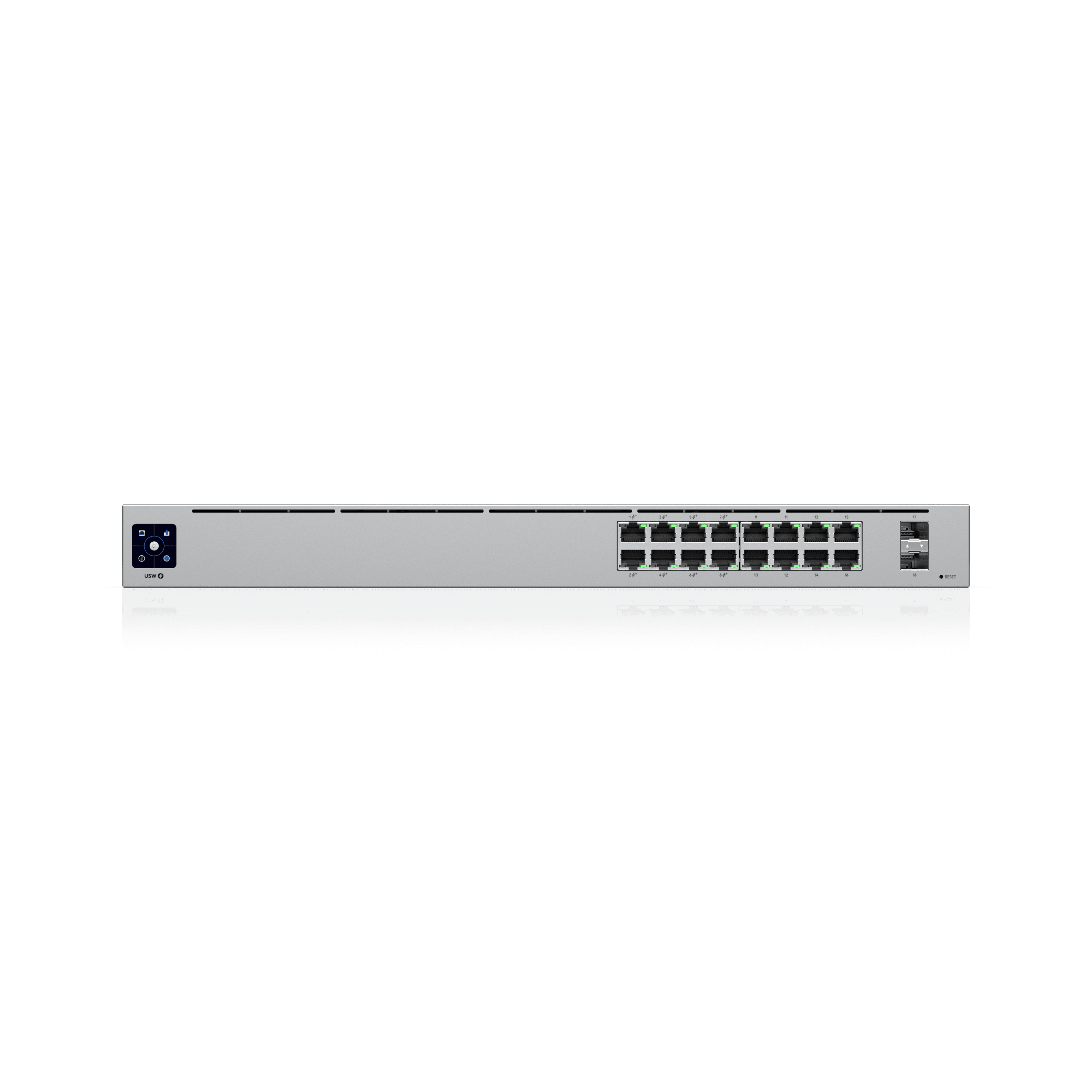

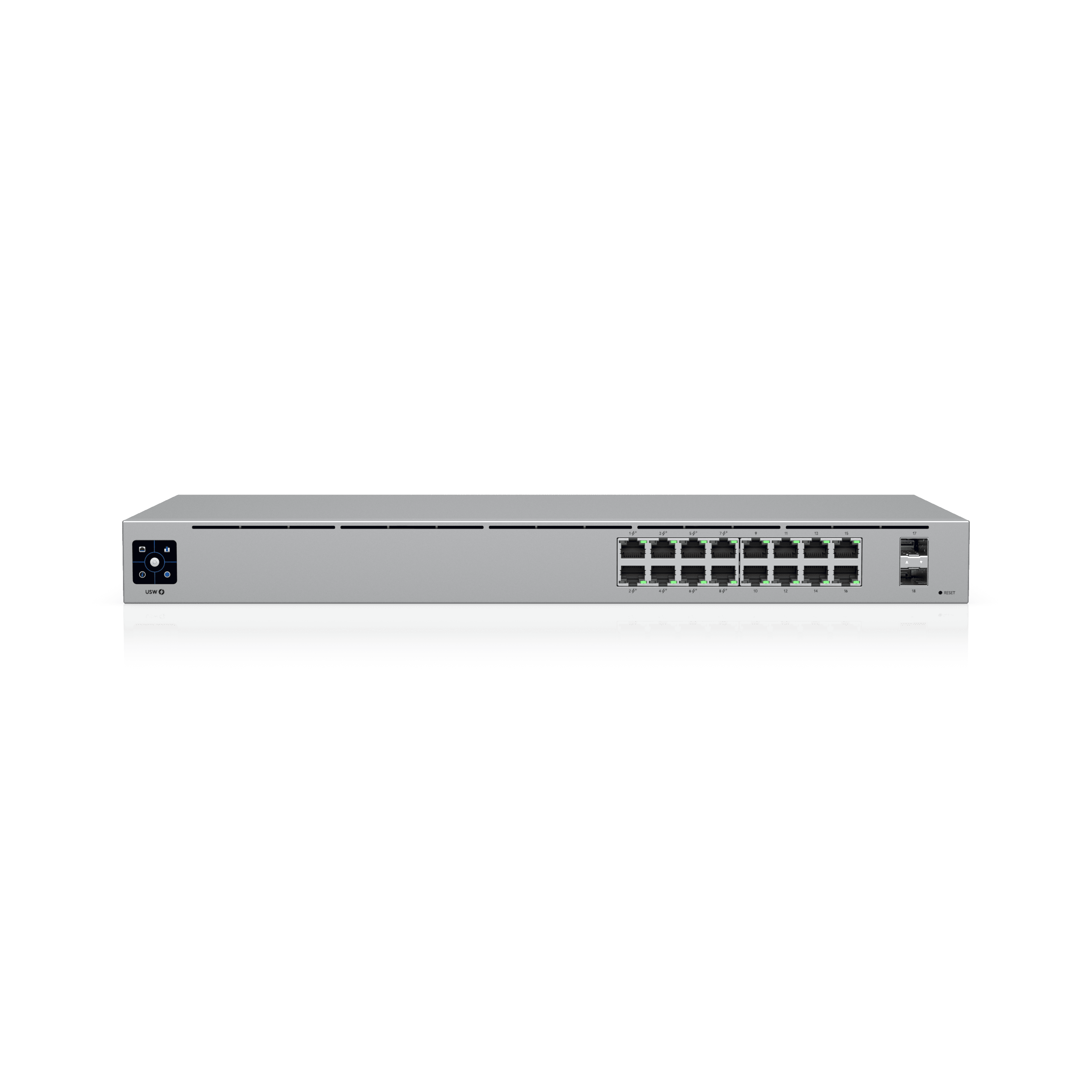

Standard 16 PoE
USW-16-POE (42W)
$299.00

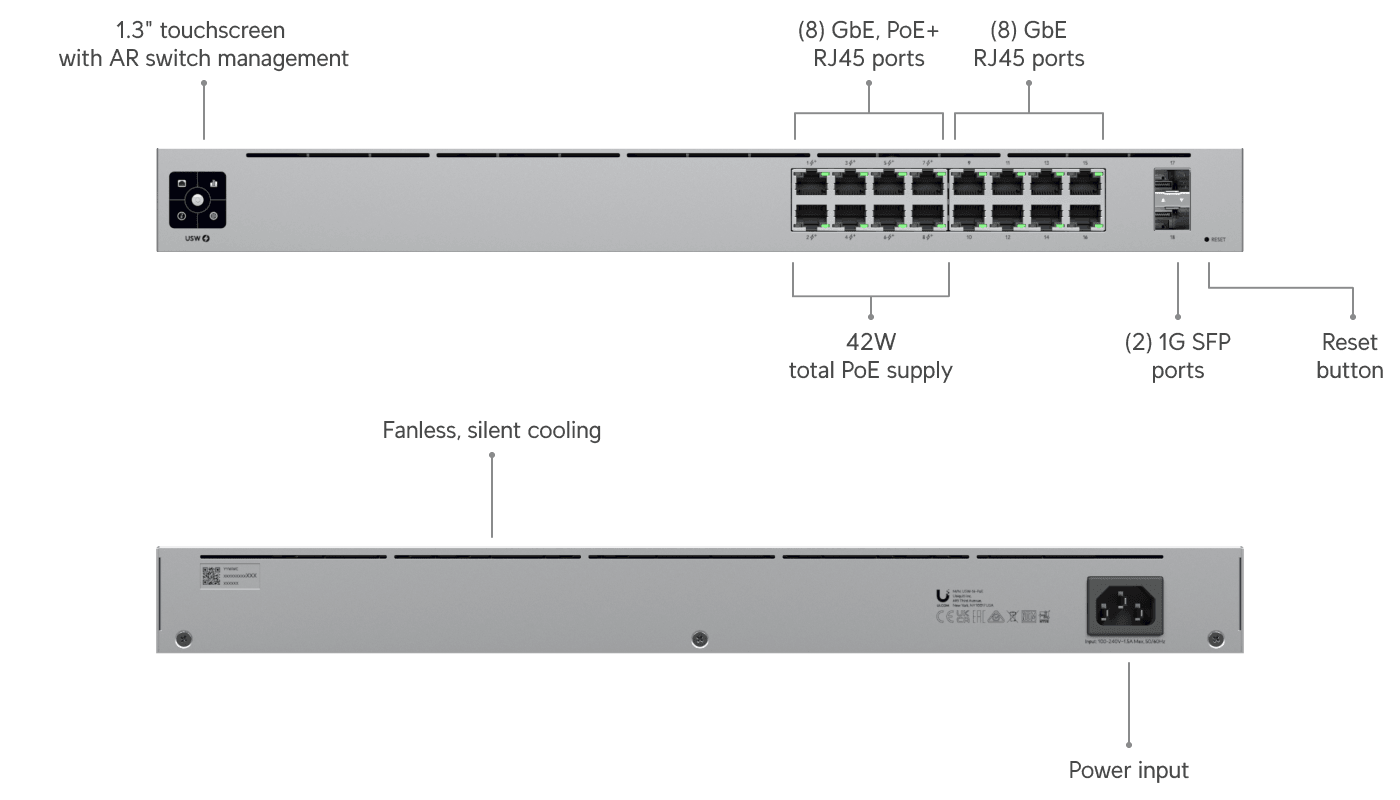

A 16-port, Layer 2 PoE switch with a silent, fanless cooling system.

(8) GbE PoE+, (8) GbE ports

(2) 1G SFP ports

42W total PoE availability

Fanless, silent cooling

Standard 24 PoE
Additional (8) GbE PoE+ ports
$379.00
Standard 48 PoE
$589.00
Installation Guide
Technical Specifications
Mechanical

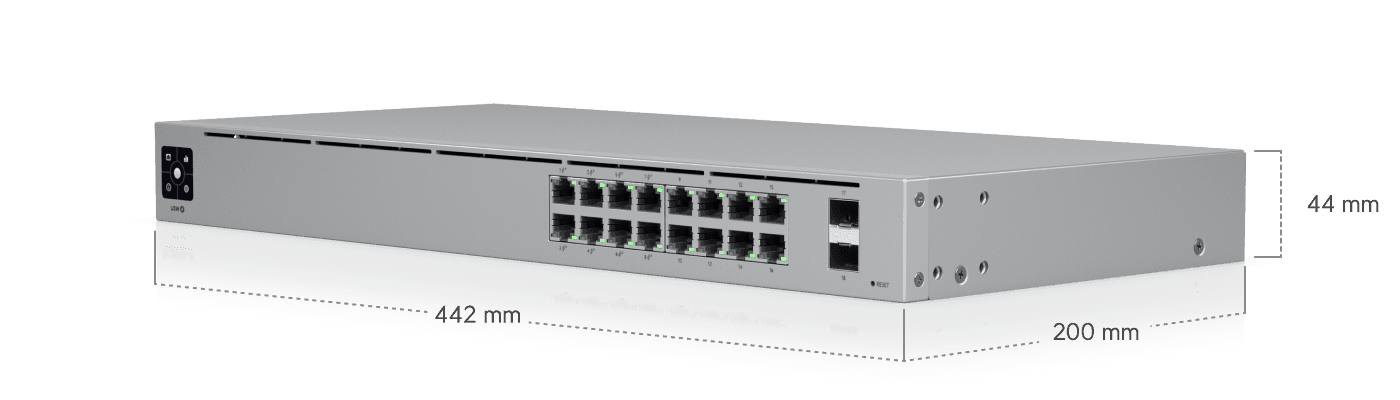

Dimensions442 x 200 x 44 mm (17.4 x 7.9 x 1.7")
WeightWithout mounting brackets: 2.8 kg (6.2 lb)
With mounting brackets: 2.9 kg (6.4 lb)
Enclosure materialSGCC steel
Hardware
Management interfaceEthernet In-Band
Networking interface(16) GbE RJ45 ports
(2) 1G SFP ports
PoE interface(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput18 Gbps
Switching capacity36 Gbps
Forwarding rate26.78 Mpps
Power methodUniversal input, 100—240V AC, 50/60 Hz
Power supplyAC/DC, internal, 60W
Supported voltage range100—240V AC
Max. power consumption18W (Excluding PoE output)
Total available PoE42W
Max. PoE wattage per port by PSE PoE+: 32W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
ESD/EMP protectionAir: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" touchscreen
ButtonFactory reset
Shock and vibrationETSI300-019-1.4 Standard
Ambient operating temperature-5 to 40° C (23 to 104° F)
Ambient operating humidity10 to 90% noncondensing
CertificationsCE, FCC, IC
LEDs
SystemStatus
EthernetPoE
Speed/link/activity
SFPLink/activity
Application Requirements
UniFi Network Version 7.2.94 and later
