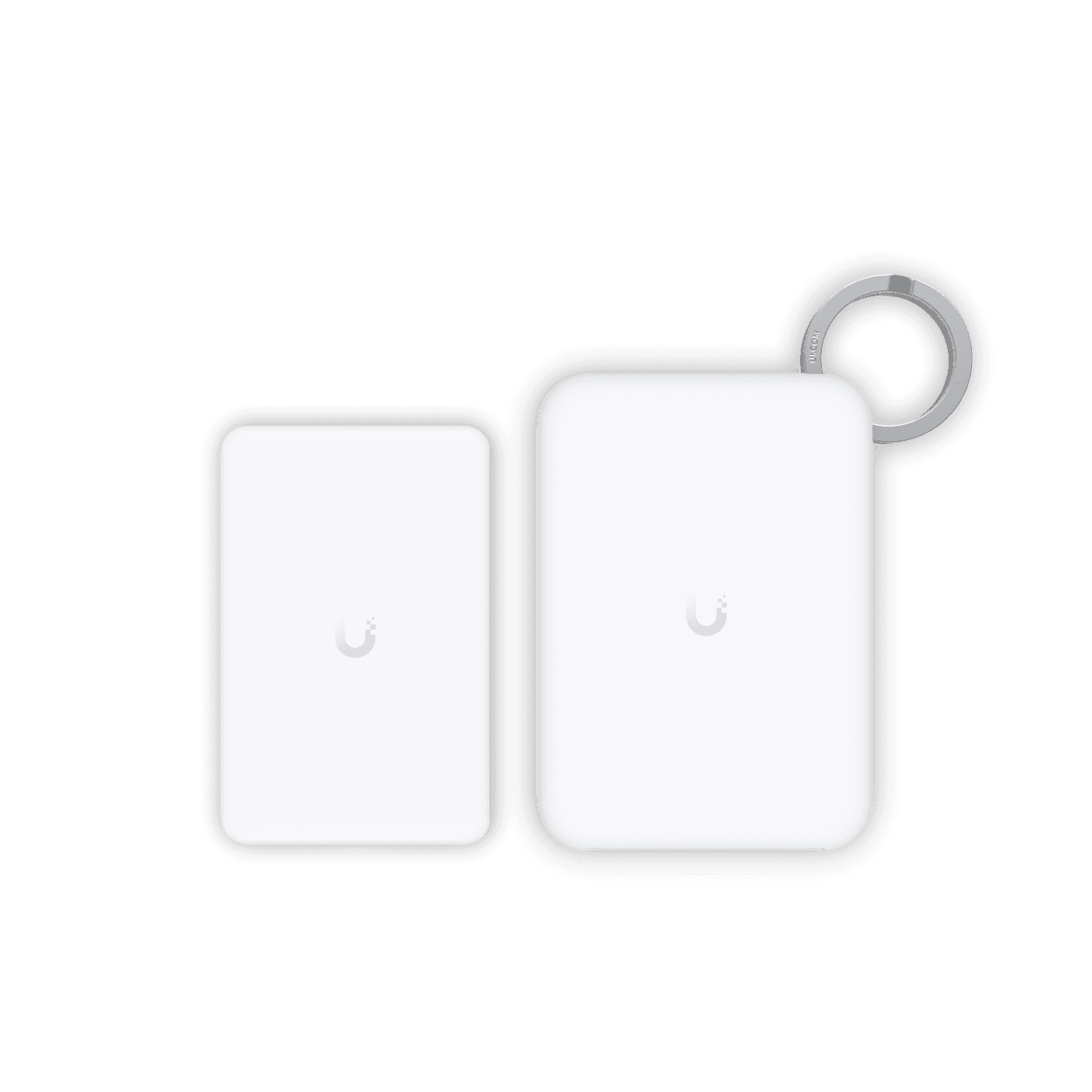

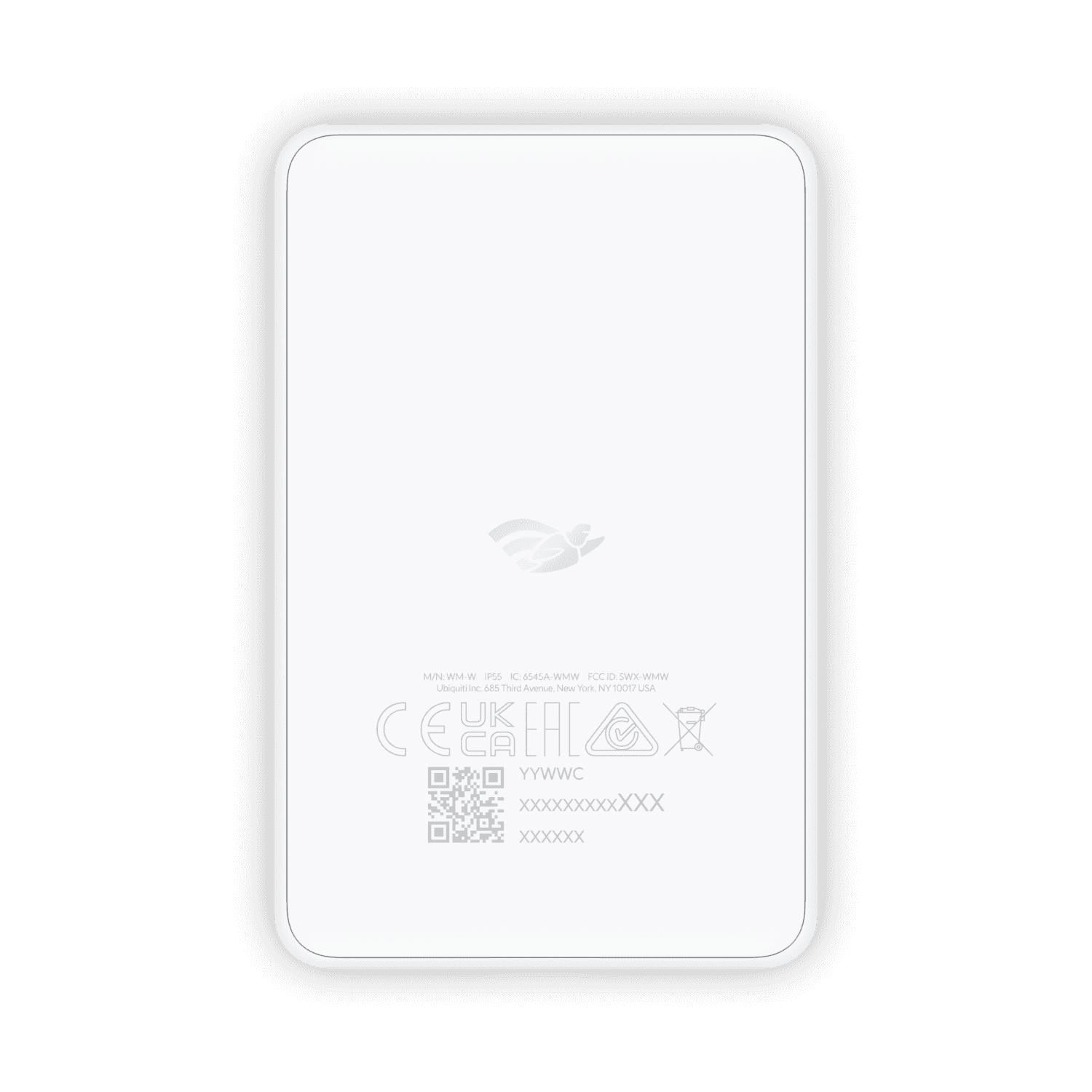

WiFiMan Wizard
WM-W
$99.00

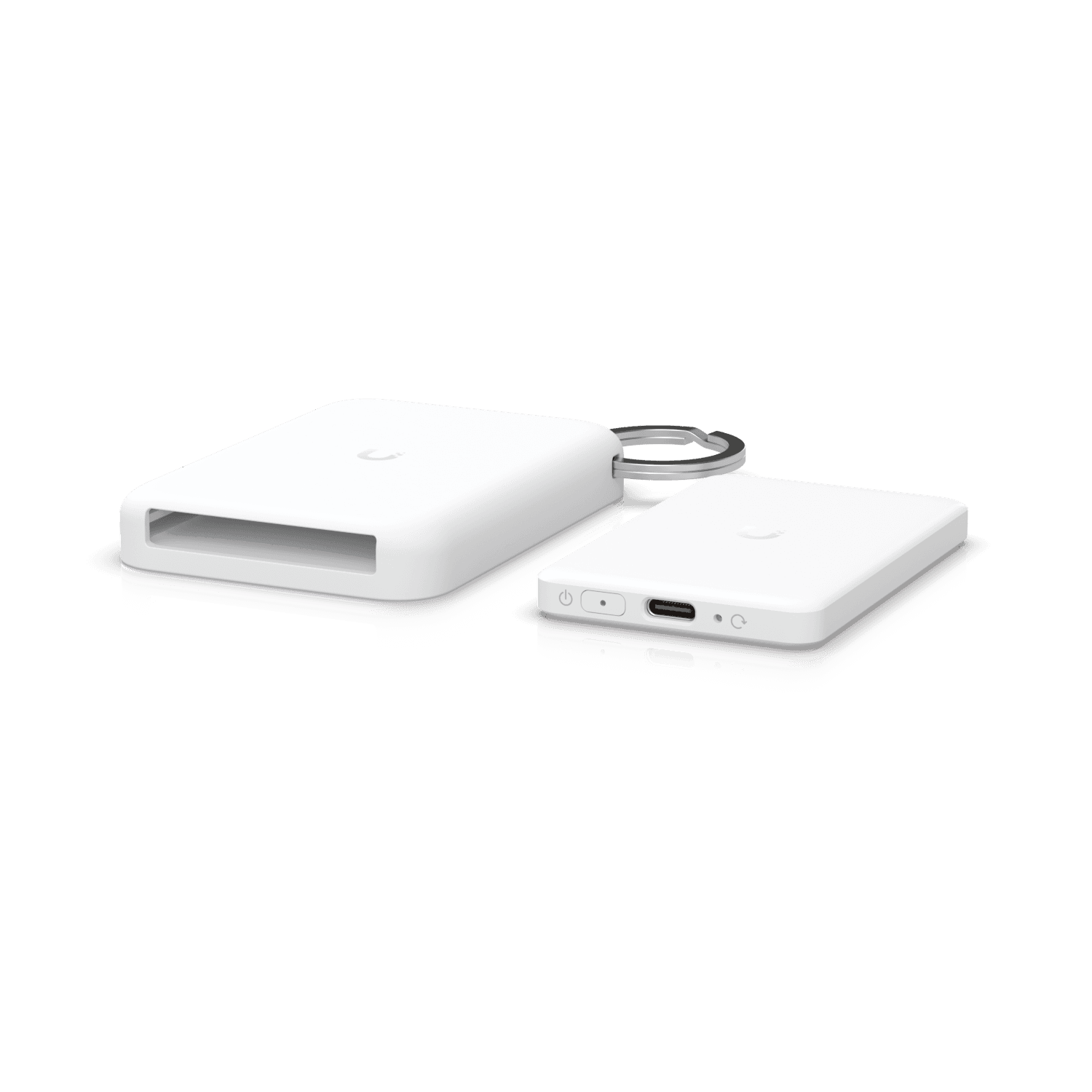

A portable spectrum analyzer designed for the WiFiMan iOS and Android mobile app.

2.4 GHz and 5 GHz unlicensed band scanning

240 minutes continuous scanning battery life

BLE smartphone pairing with USB-C charging port

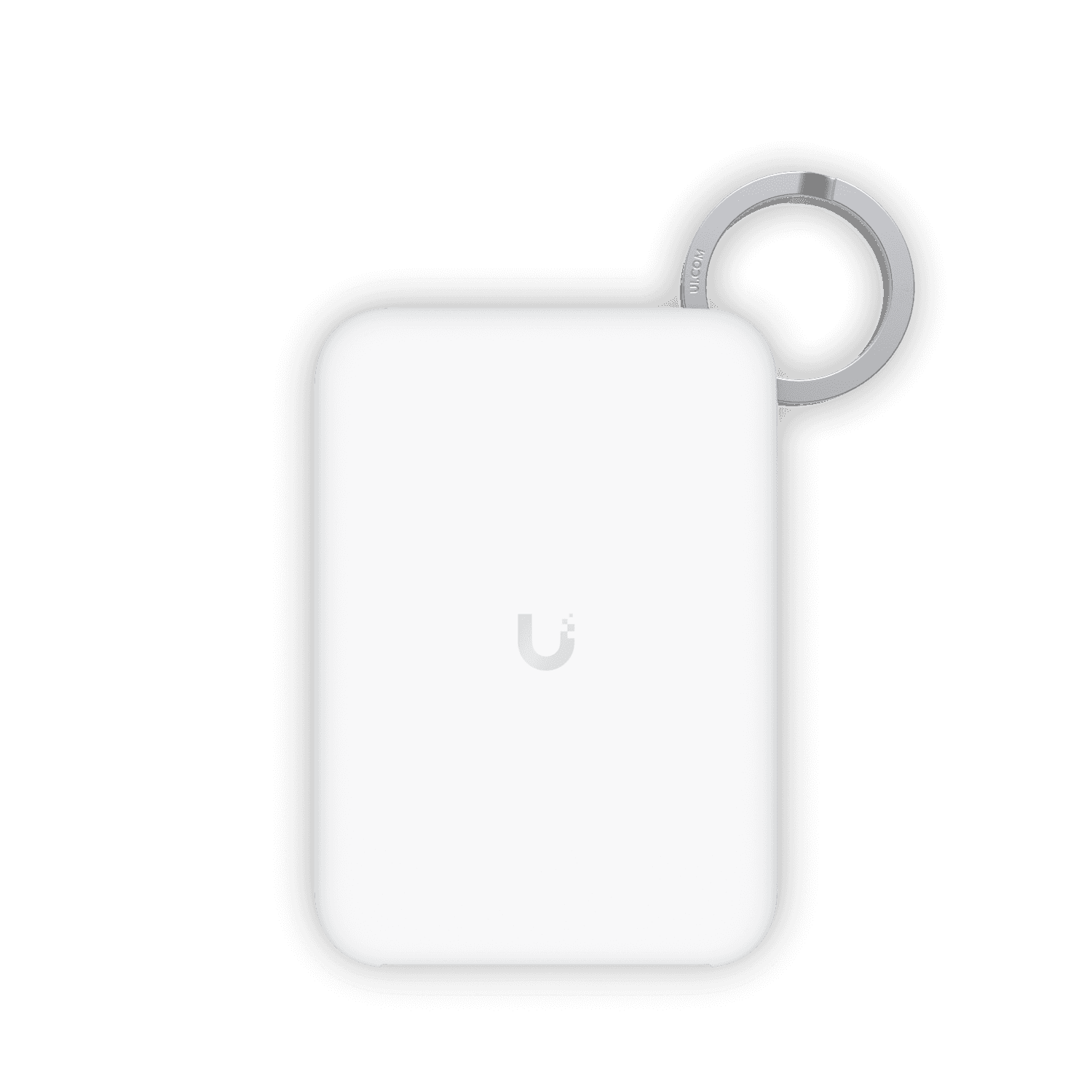

iPhone Magsafe attachable support*

*A mag-safe case is required to attach this device to an iPhone.

Installation Guide
Technical Specifications
Mechanical
Dimensions78.5 x 50.5 x 7.9 mm (3.1 x 2 x 0.3")
Weight32 g (1.1 oz)
Enclosure materialPlastic
WeatherproofingIP55
Hardware
Management interfaceBluetooth
Power methodLi-ion battery
Power supplyRechargeable Li-ion battery, 3.7V DC, 300mAh
Max. power consumption32.4mW
Charger voltageUSB-C, 5V DC/1A
LEDWhite/blue/red

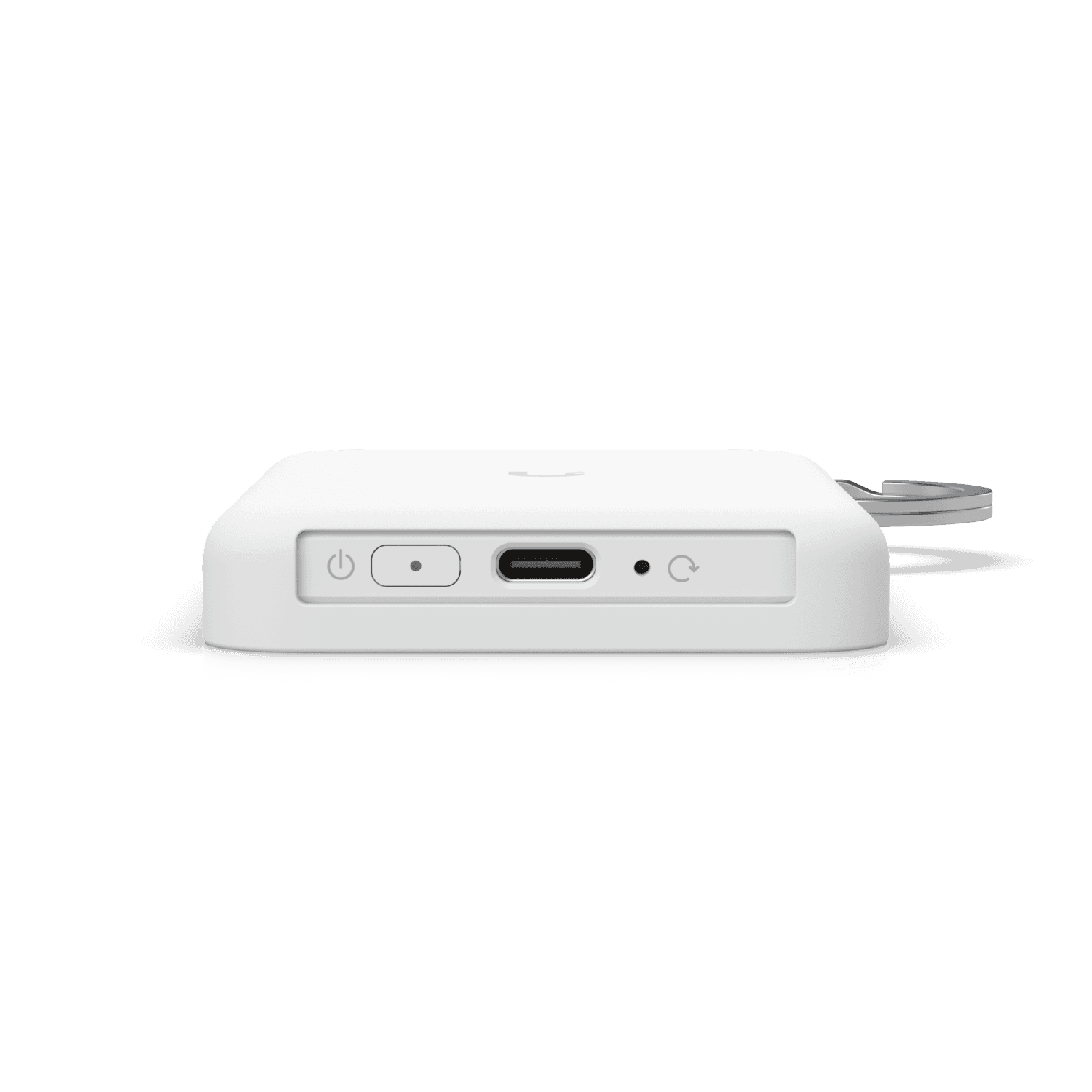

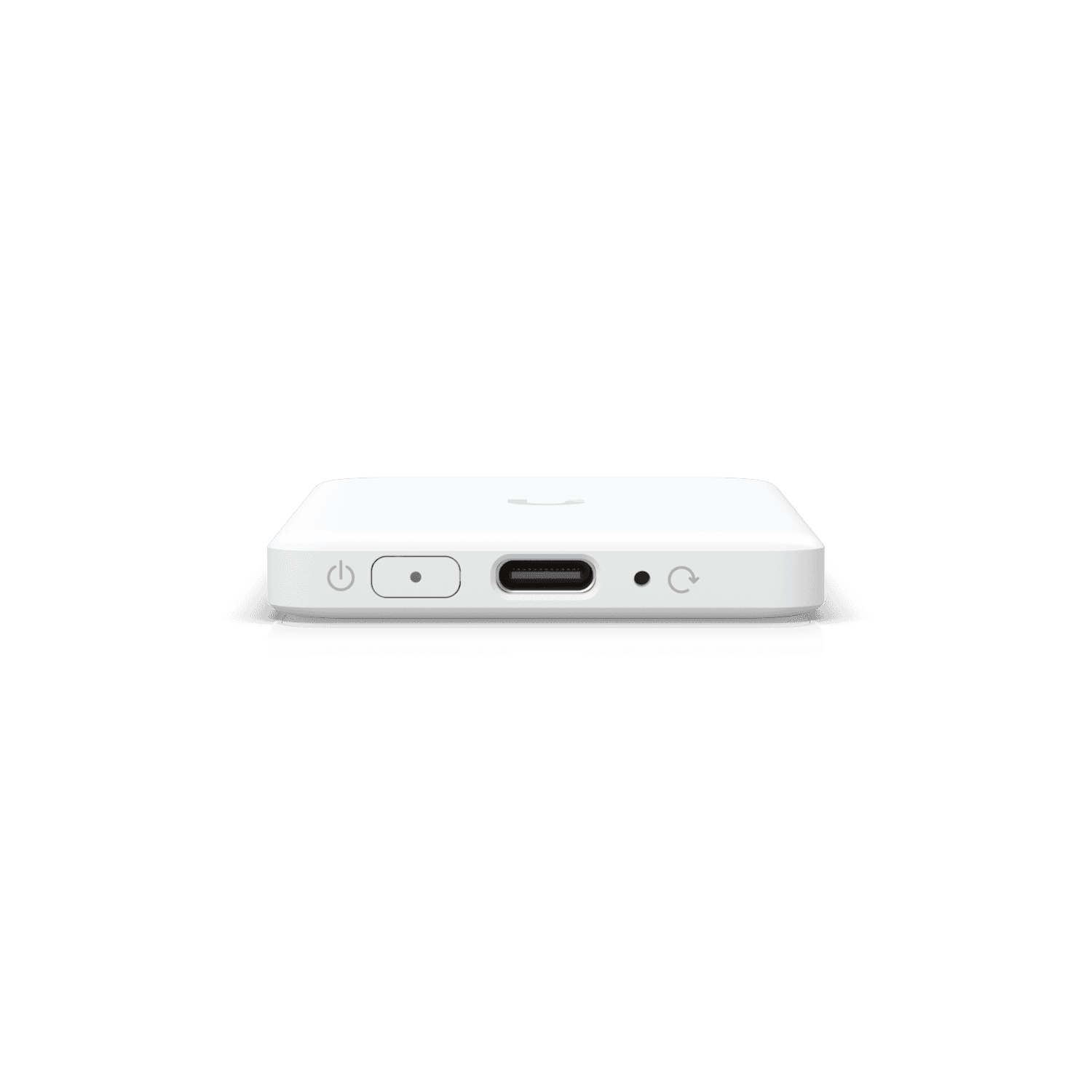

Buttons(1) Power
(1) Factory-reset
Ambient operating temperature0 to 40° C (32 to 104° F)
Ambient operating humidity10 to 90% noncondensing
CertificationsCE, FCC, IC
SSID Scan
Frequency range2.4 to 2.5 GHz
5.15 to 5.85 GHz
Amplitude range-96 dBm to 0 dBm
Amplitude resolution1 dBm
Software
Management applicationUniFi WiFiman iOS™: Version 0.18.0 and later
UniFi WiFiman Android™: Version 1.15.0 and later
