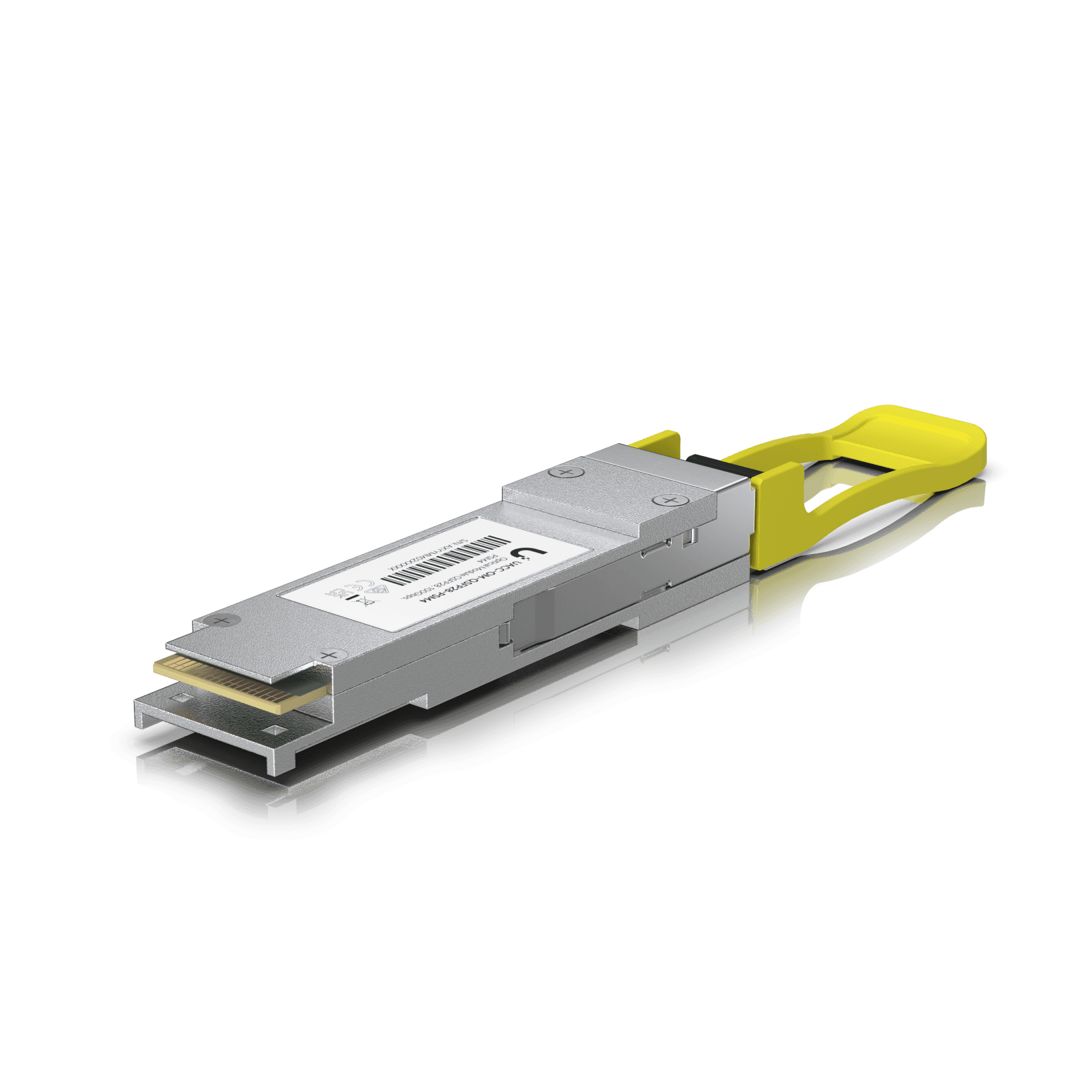

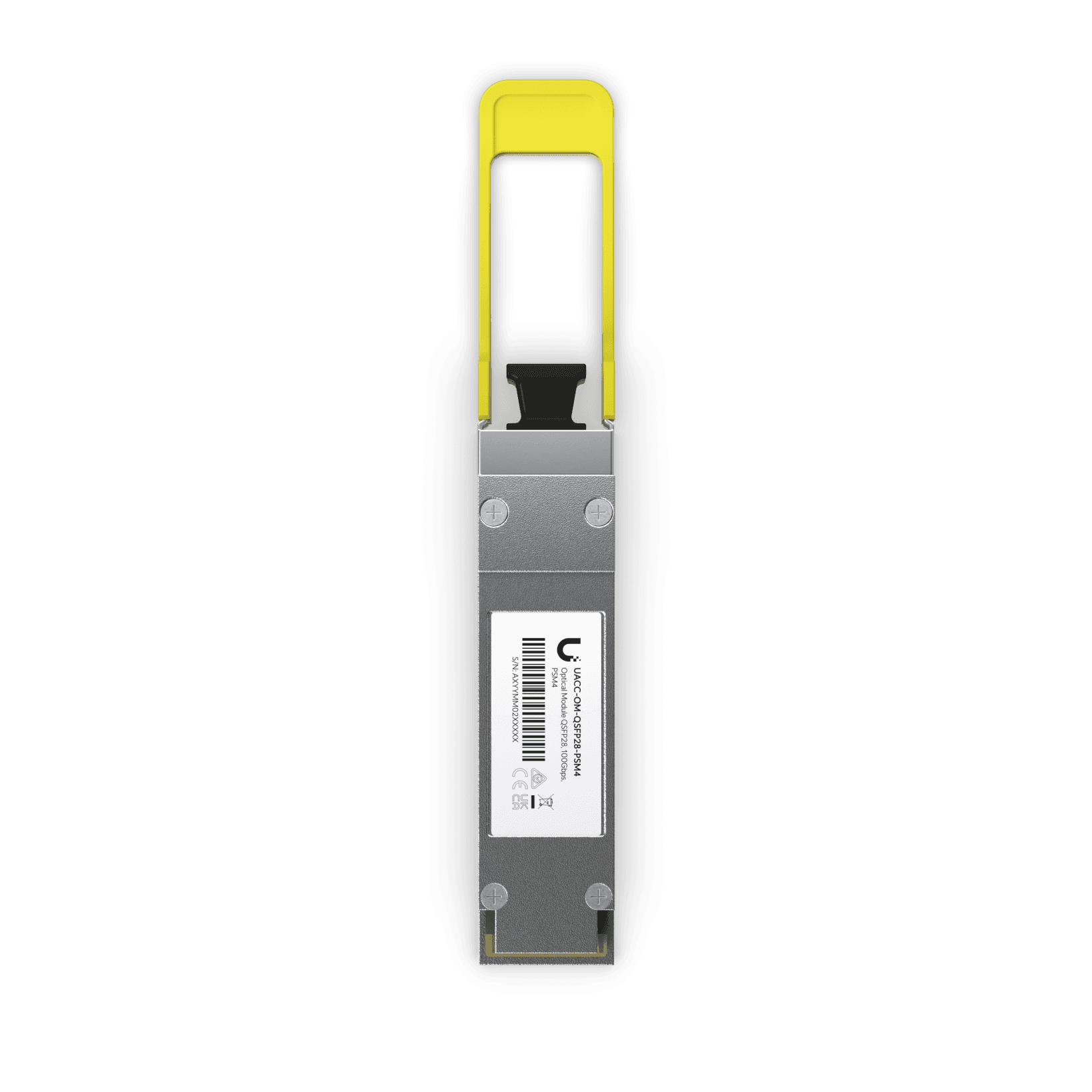

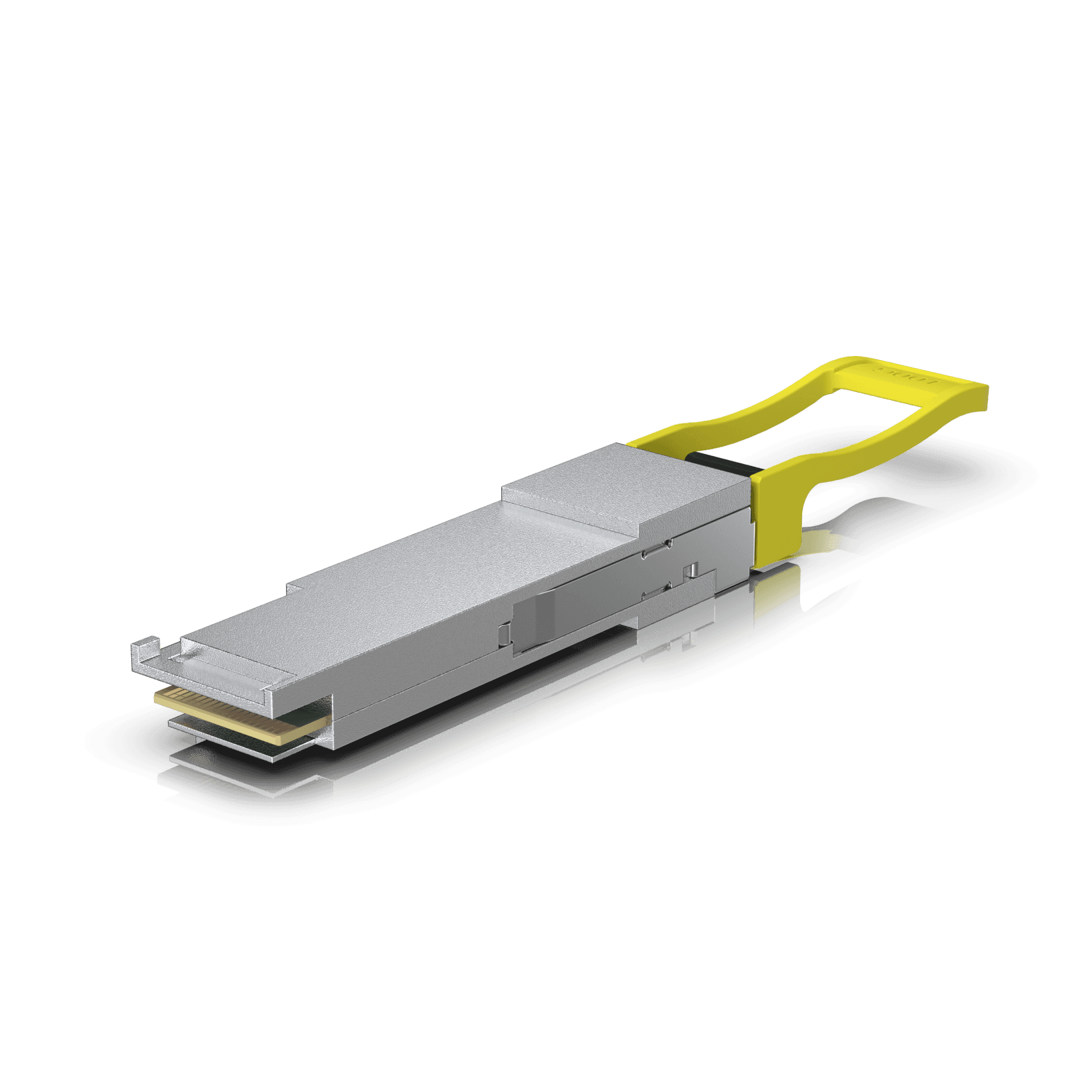

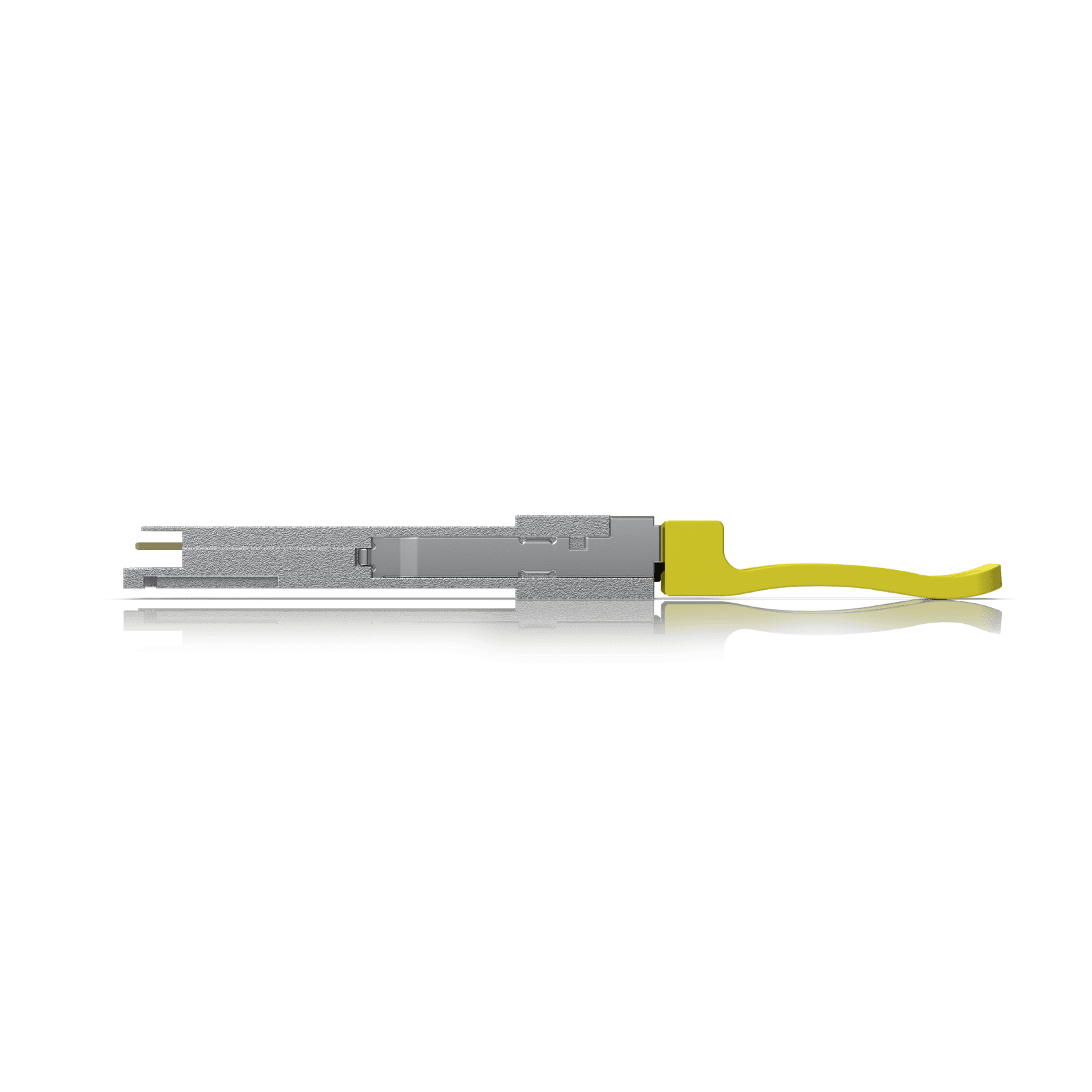

100G PSM4 Single-Mode Optical Module
UACC-OM-QSFP28-PSM4
$179.00
QSFP28 transceiver that supports 100G connections up to 2 km using single-mode fiber with an MPO-12 APC connector.
Max data rate: 100 Gbps
Compatible with QSFP28 and QSFP+ interfaces
MPO-12 Type B APC connector
Supports single-mode fiber connections up to 2 km*
*Requires OS2 single-mode fiber. Transmission distance is limited to 500 m with OS1 single-mode fiber. Fiber cable is not included.
$179.00
1
Technical Specification
| Supported media | Single-mode fiber |
| Connector type | (1) MPO 1x12 |
| TX wavelength | 1310 nm |
| RX wavelength | 1310 nm |
| Data rate | 100 Gbps |
| Max. power consumption | 3.5W |
| Cable distance | 2 km |
| Ambient operating temperature | 0 to 70° C (32 to 158° F) |
