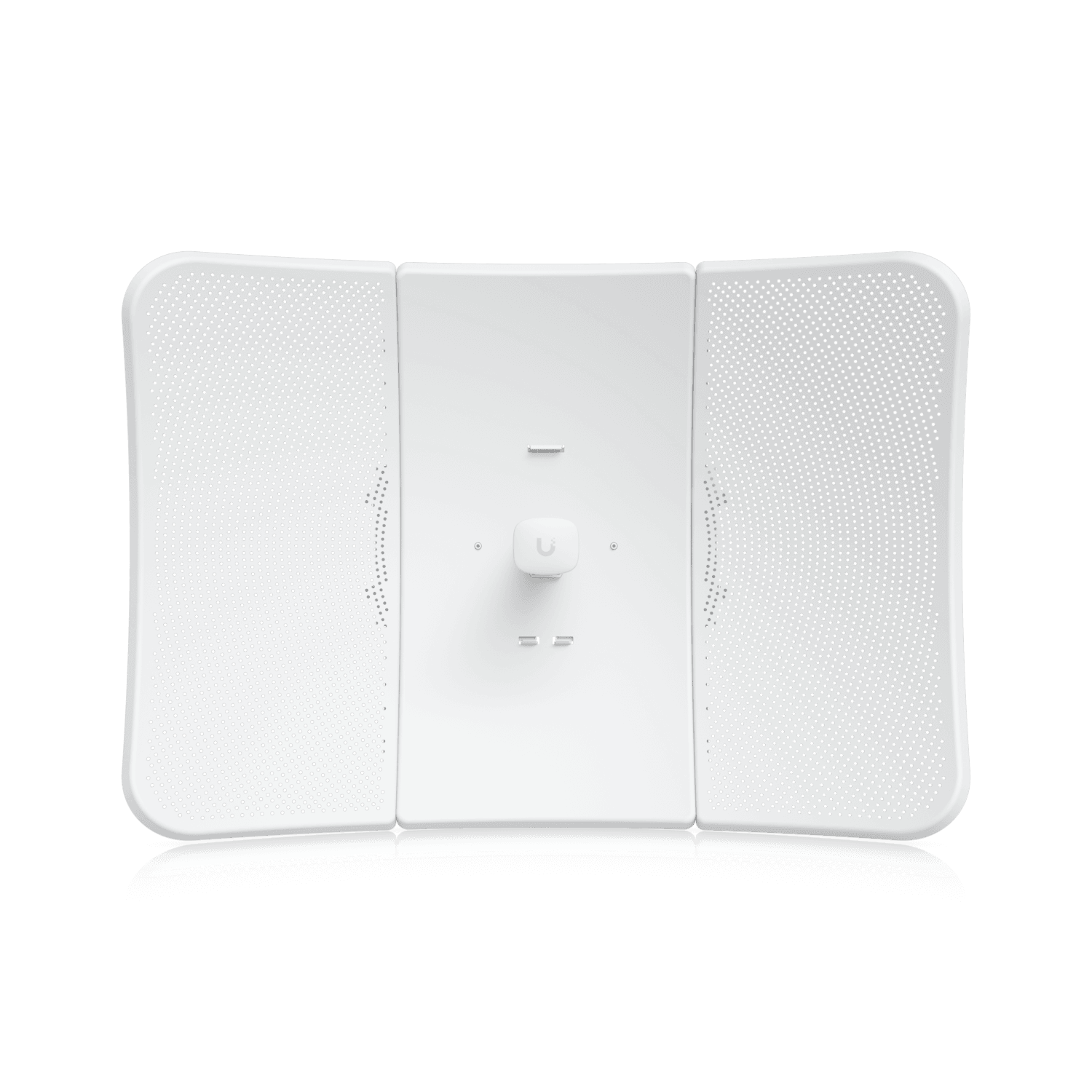

airMAX LiteBeam 5AC Extreme-Range
LBE-5AC-XR
$129.00
airMAX LiteBeam 5AC Extreme-Range
LBE-5AC-XR
$129.00
Ultra-lightweight, outdoor, wireless station designed to create extremely long-distance links.
$129.00
1
Technical
Dimensions
747 x 525 x 347 mm
(29.4 x 20.7 x 13.7")
Weight
3.2 kg (7.1 lb)
Enclosure Materials
Aluminum alloy, UV stabilized polycarbonate
Mounting Material
UV stabilized polycarbonate
Mounting
Pole Mount (Integrated)
Pole Mount Diameter
⌀35 to 60 mm (⌀1.38 to 2.36")
Wind Loading
1100 N at 200 km/h (247.29 lbf at 125 mph)
Weatherproofing
IPX6
Networking Interface
(1) GbE RJ45 port
Power Method
Passive PoE 2-pair (4, 5+; 7, 8- return)
Power Supply
24V DC, 0.5A gigabit PoE adapter (Included)
Supported Voltage Range
22—27V DC
Max. Power Consumption
7W
RF Connections
Internal
Buttons
(1) Factory reset
LEDs
Power
✓
Ethernet
✓
Ambient Operating Temperature
-40 to 70° C (-40 to 158° F)
Ambient Operating Humidity
5 to 95% non-condensing
NDAA Compliant
✓
Certifications
FCC, IC, CE
Operating Modes
PtP
PtMP
Management
Radio
WEB UI
Services
Dynamic DNS
✓
Ping Watchdog
✓
Remote Log
✓
SNMP
✓
SSH
✓
Webserver
✓
Tools
Constellation
✓
Utilities
airView®
✓
Antenna Alignment
✓
Discovery Utility
✓
Ping
✓
Speed Test
✓
Traceroute
✓
Total Throughput
450+ Mbps
Encryption
WPA2-PSK (AES)
Supported Frequency Range
Worldwide
5.15 - 5.85 GHz
Max. Conducted TX Power
25 dBm
Management Radio
2400 - 2483.5 MHz
Channel Bandwidth
10/20/30/40/50/60/80 MHz
Antenna Gain
29 dBi
Isolation
20 dB
Electrical Downtilt
0°
