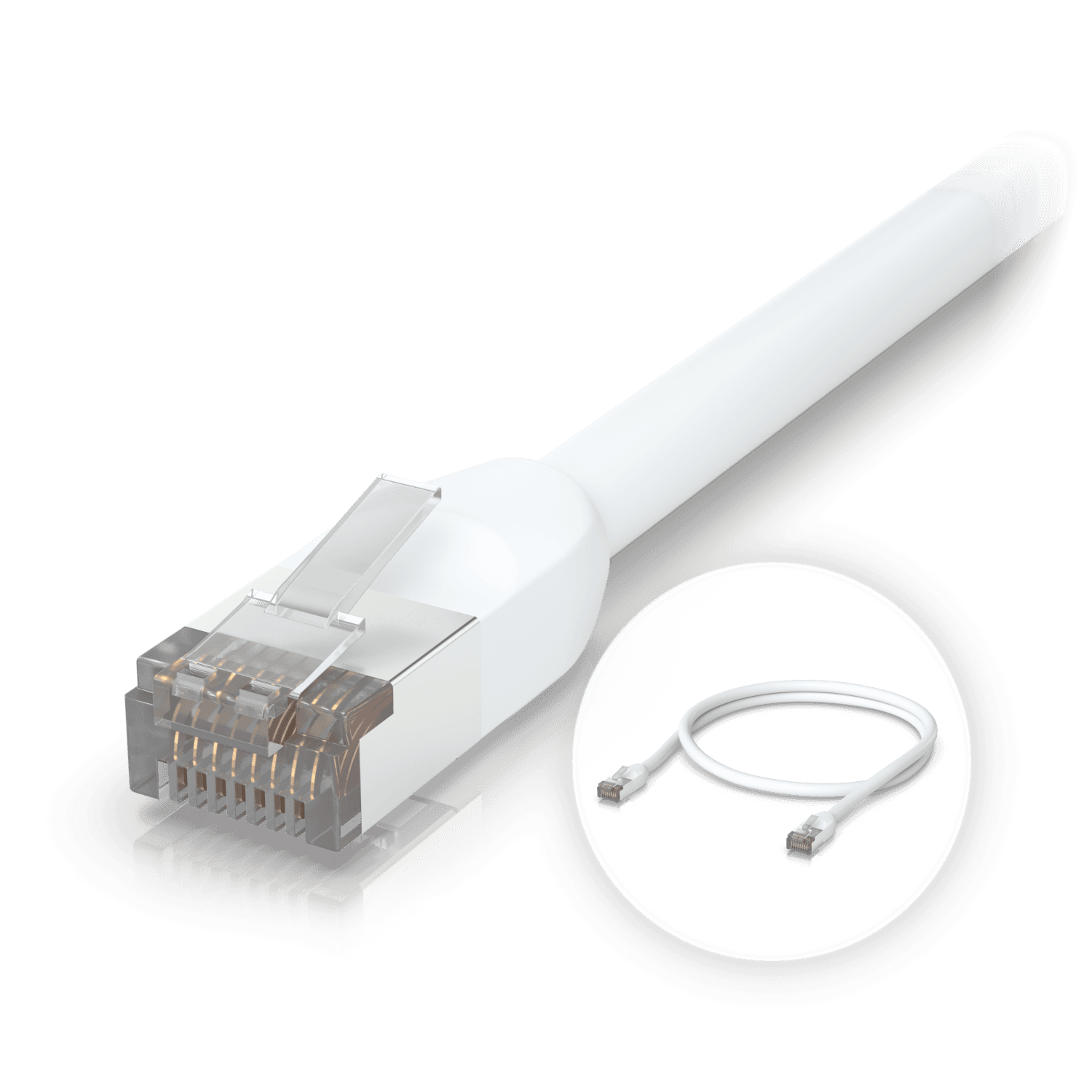

UniFi Patch Cable Outdoor
UACC-Cable-Patch-Outdoor-1M-W
$4.00
Rugged, outdoor patch cable designed to function in the harshest environments.
Shielded RJ45
Insulated, weatherproof jacket
Internal foil shielding and drain wire for increased ESD damage protection
Cable length: 1 to 8 m
$4.00
1
Technical Specification
Overview
Available Lengths
1, 2, 3, 5, 8 m
(3.3, 6.6, 9.8, 16.4, 26.3 ft)
Type
Category 5e
Color
White
Weight
60, 90, 125, 200, 315 g
(2.1, 3.2, 4.4, 7.1, 11.1 oz)
UV Resistance
ASTM G 151/154
Flame Rating
VW-1 (UL1581)
Shielding Type
STP
Conductor Type
Stranded copper
Conductor Wire Gauge
24 AWG
Cable
Jacket Diameter
6.3 mm (0.25")
Jacket Material
Thermoplastic elastomer (TPE)
Bend Radius
Min. 24 mm (0.94")
Storage Temperature
-30 to 75°C (-22 to 167°F)
Installation Temperature
-20 to 60°C (-4 to 140°F)
Ambient Operating Temperature
-40 to 80°C (-40 to 176°F)
Standards
TIA/EIA-568-B.2
ISO/IEC 11801
