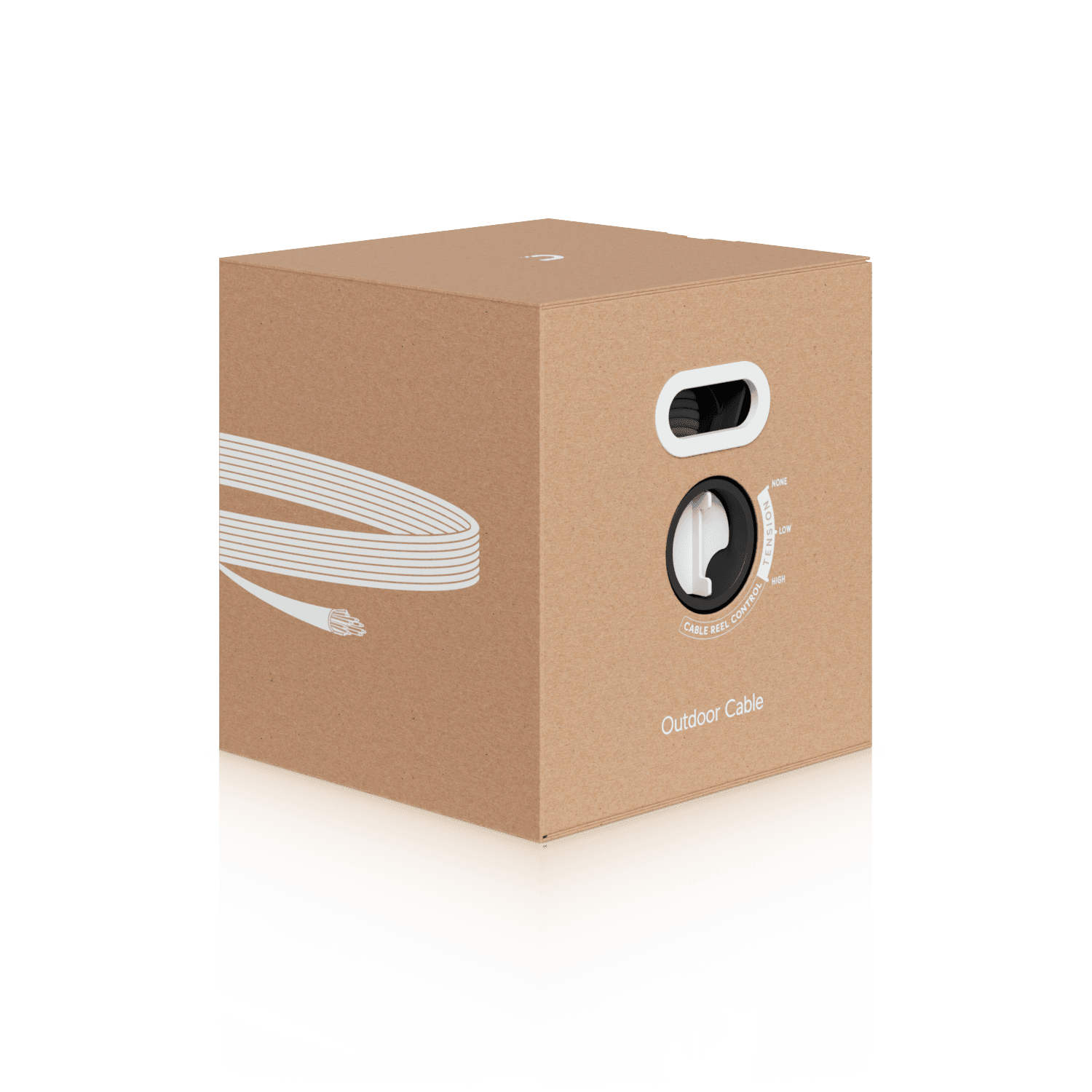

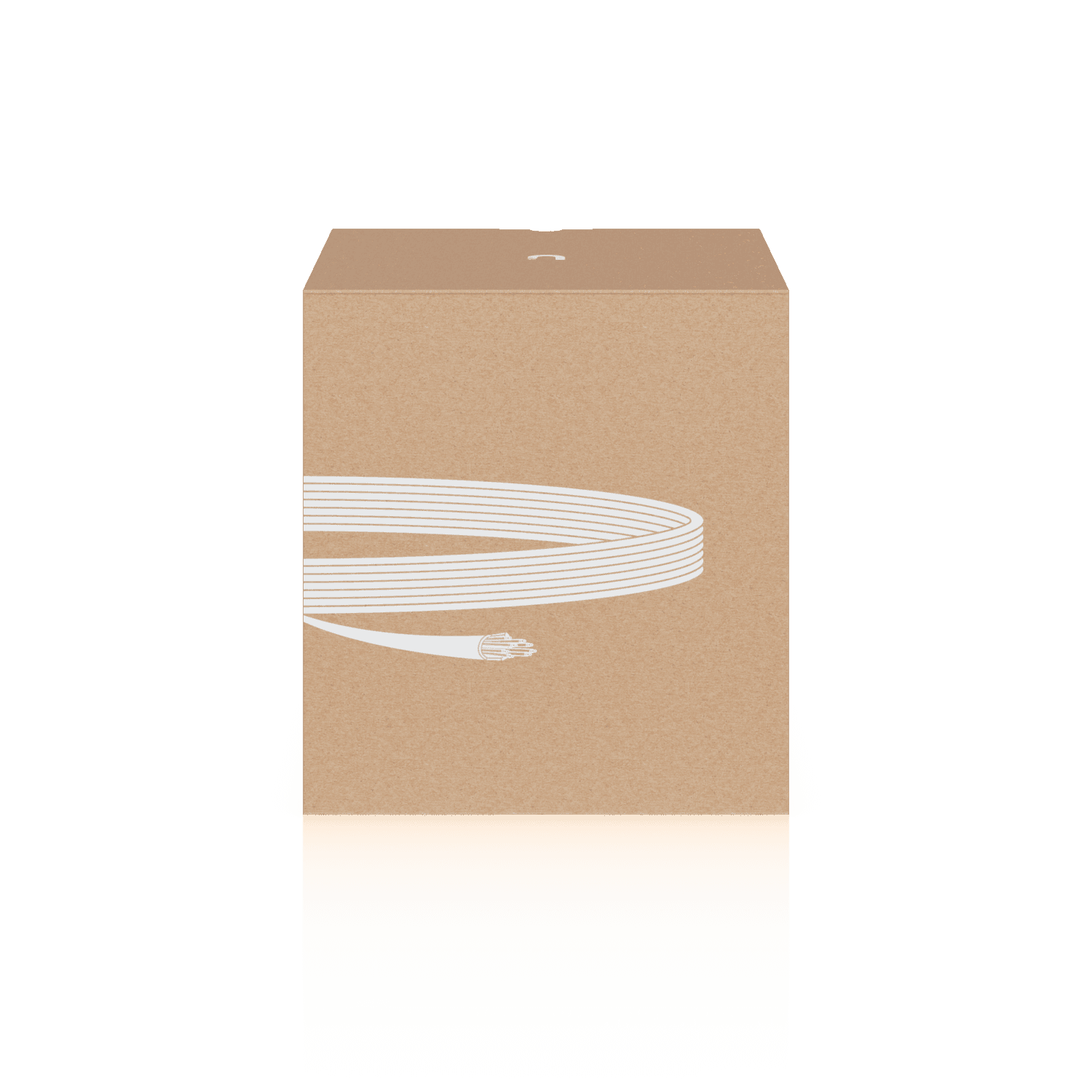

UniFi Outdoor Cable
UACC-Cable-C5e-Outdoor-Pro-305M-W
$149.00
Outdoor Category 5e cable designed to resist harsh weather damage and electromagnetic interference.
Category 5e cable
Insulated, weatherproof jacket
Internal foil shielding and drain wire for increased ESD damage protection
Cable length 305 m
$149.00
1
Overview
Length
305 m (1,000 ft)
Type
Category 5e
Color
White
Box Dimensions
330 x 330 x 340 mm
(13 x 13 x 13.4")
Box Weight
12.6 kg (27.78 lb)
UV Resistance
ASTM G 151/154
Flame Rating
VW-1 (UL1581)
Shielding Type
STP
Conductor Type
Solid bare copper
Conductor Wire Gauge
24 AWG
Cable
Jacket Diameter
6 mm (0.24")
Jacket Material
Thermoplastic elastomer (TPE)
Bend Radius
Min. 24 mm (0.94")
Storage Temperature
-30 to 75°C (-22 to 167°F)
Installation Temperature
-20 to 60°C (-4 to 140°F)
Ambient Operating Temperature
-40 to 80°C (-40 to 176°F)
Ripcord
Yes
Standards
TIA/EIA-568-B.2
ISO/IEC 11801
NDAA Compliant
Yes
