Ethernet Surge Protection
UACC-ETH-SP-Panel-24
$399.00
Available Aug 2025
Ethernet Surge Protection
UACC-ETH-SP-Panel-24
$399.00
Available Aug 2025

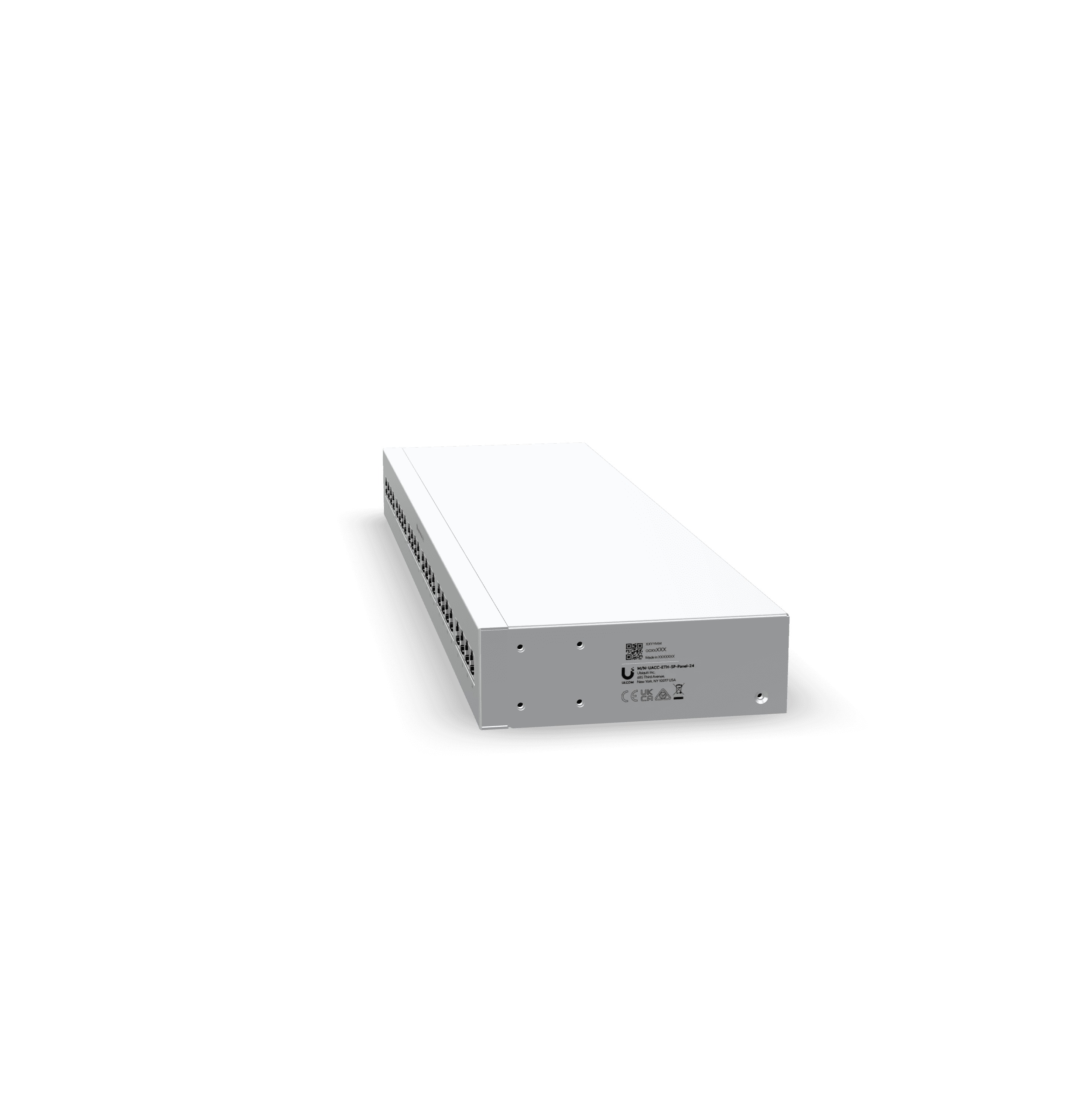

Rack-mount indoor panel supports up to 10 GbE, PoE++, and 20kA surge discharge per port.

24-port integrated

1U rack-mount design

To subscribe to back in stock emails.
Technical
Dimensions
442.4 x 134 x 43.7 mm (17.4 x 5.3 x 1.7")
Weight
2 kg (4.4 lb)
Enclosure Material
SGCC steel
Networking Interface
(48) RJ45 female connectors
ESD/EMP Protection
Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
DC Spark-Over Voltage
90V @ 100V/s
Max. Impulse Spark-Over Voltage
600V @ 1kV/µs
Discharge Current
20kA
Insulation
Max. Resistance: 1G ohm @ 50V
Max. Capacitance
1.0 pF @ 1 MHz
Data Line Protection
Up to 10 Gbps
PoE Support
Ambient Operating Temperature
-40° to +80° C (-40° to 176° F)
Ambient Operating Humidity
10 to 90% noncondensin
