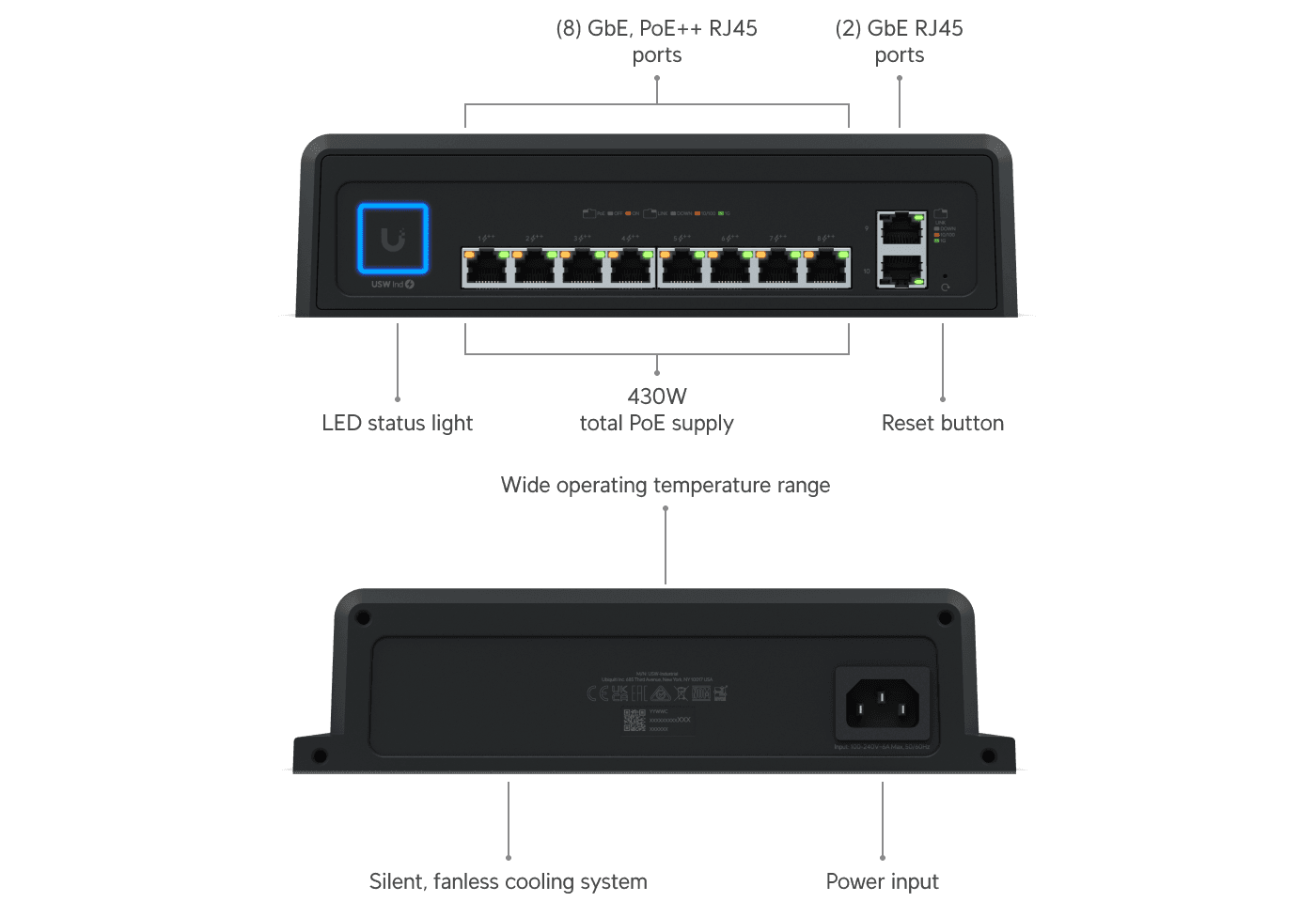

Features:
<ul>
<li>(8) GbE, PoE++ RJ45 ports</li>
<li>(2) GbE RJ45 ports</li>
<li>430W total PoE availability</li>
</ul>
Managed with the UniFi Network application: Version 5.14.12 and later

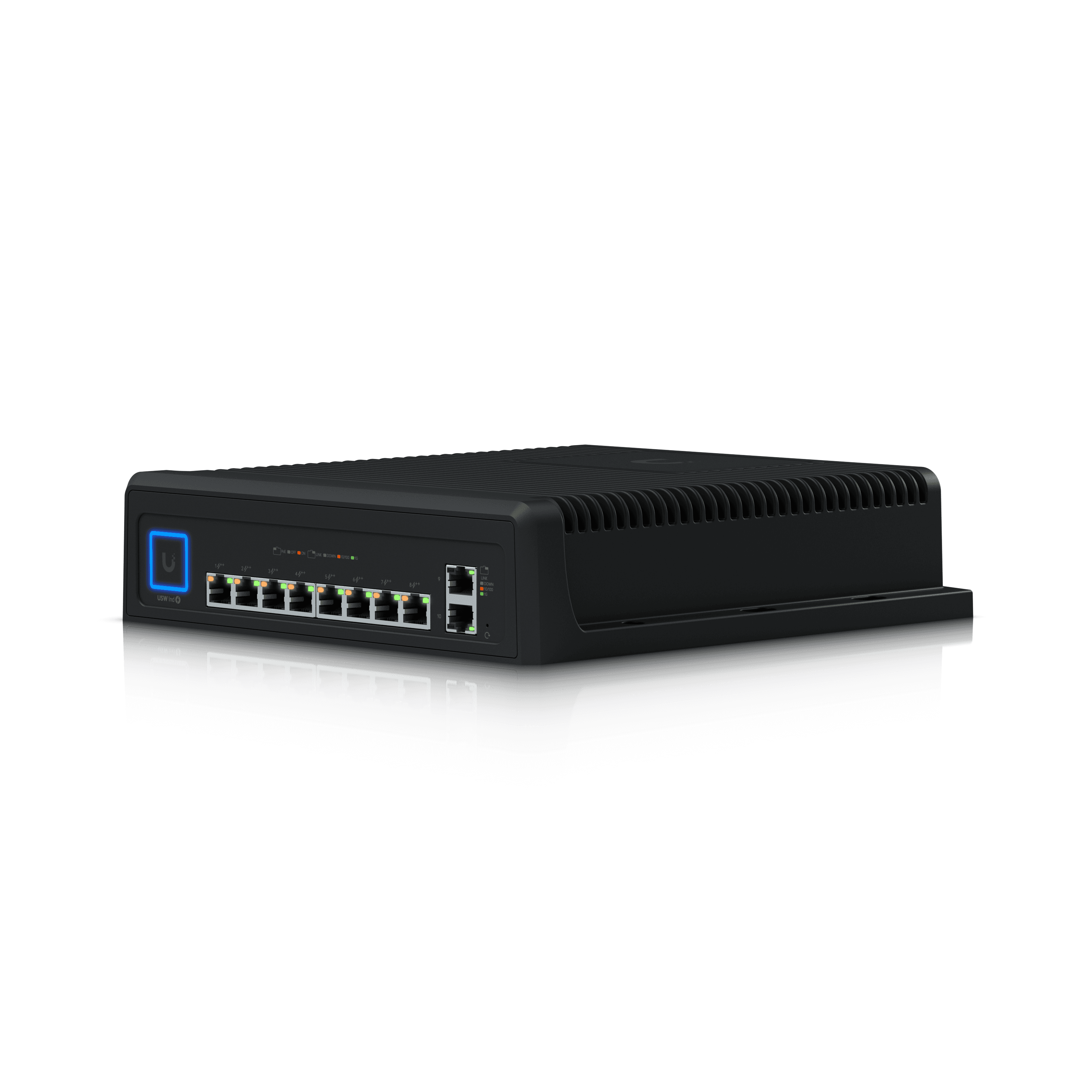

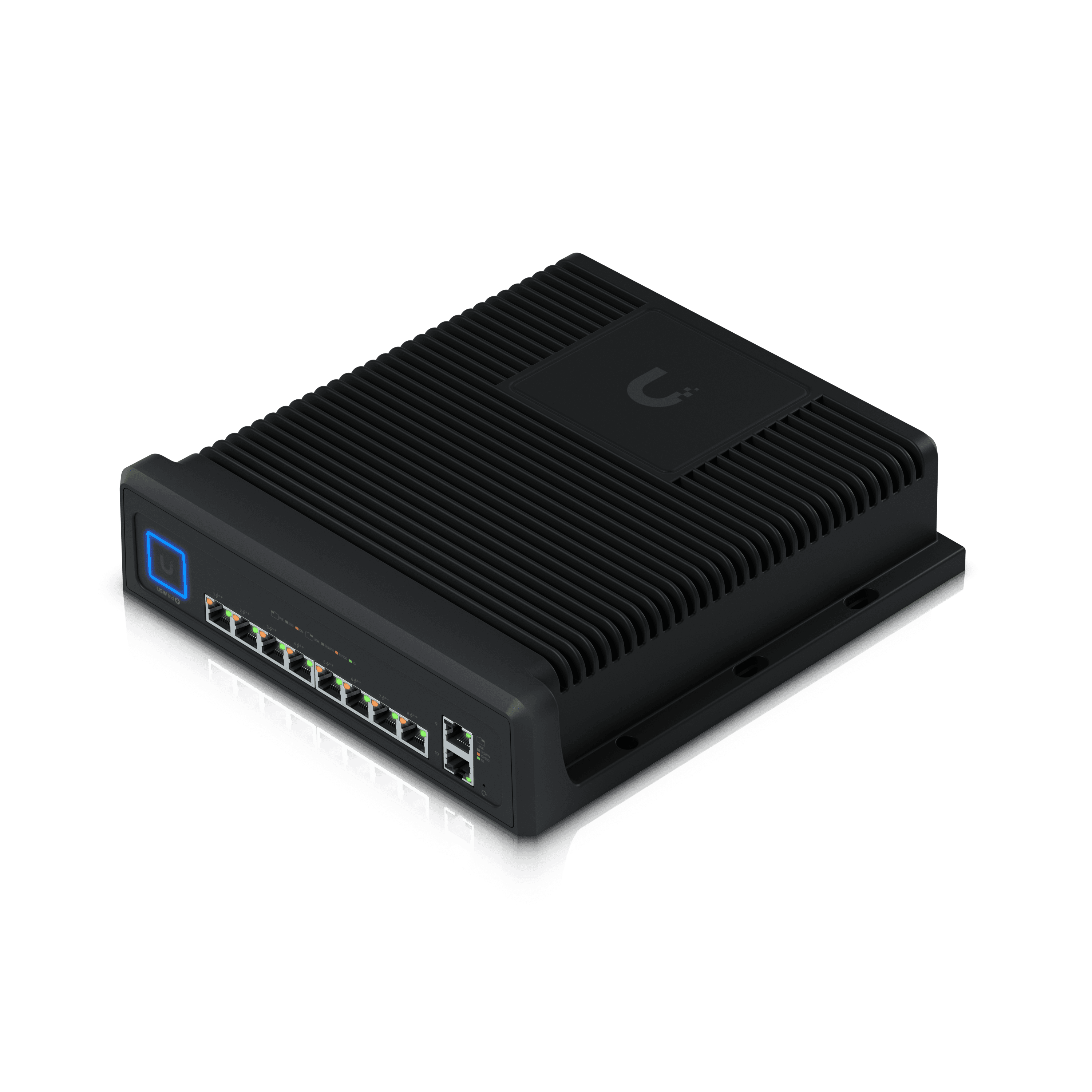

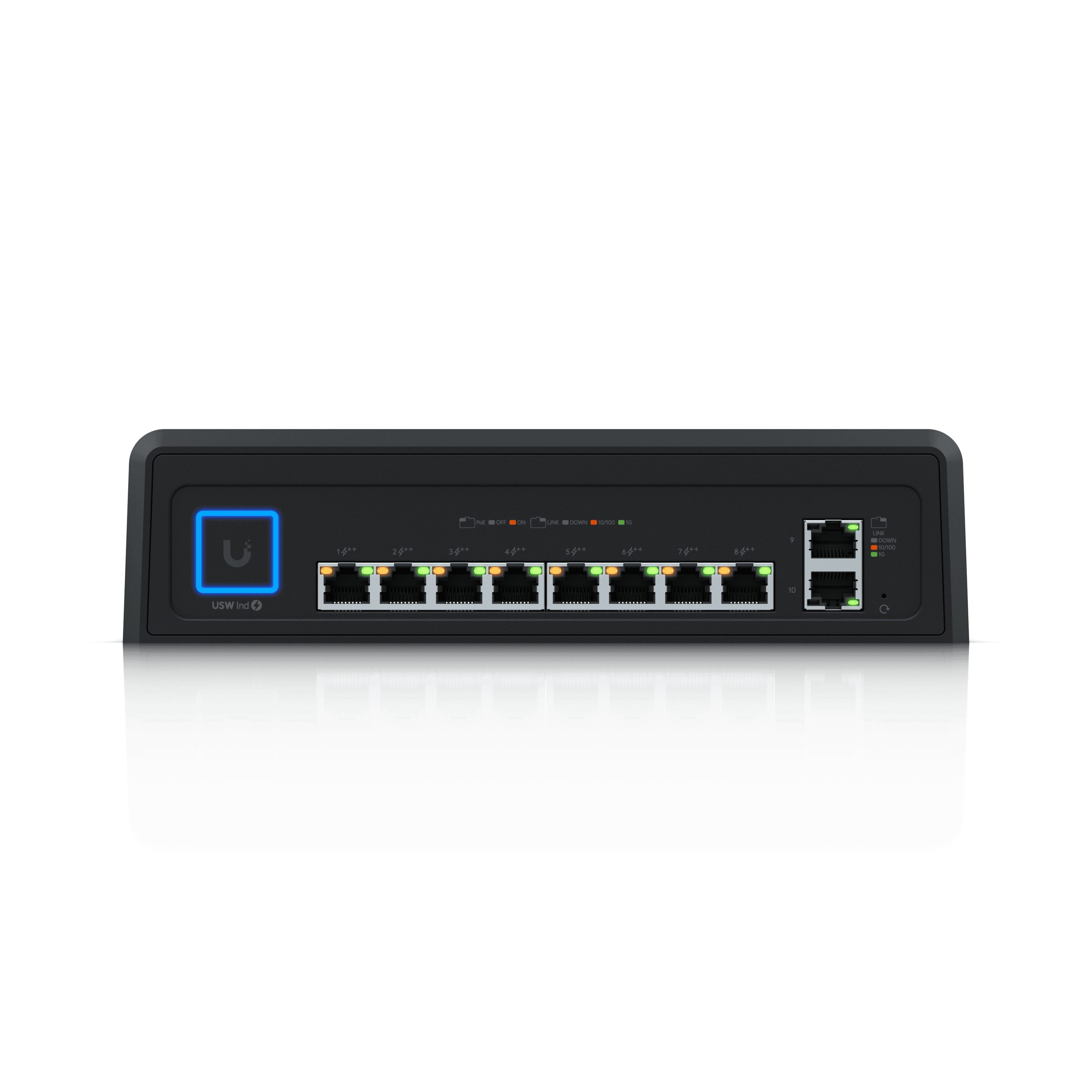

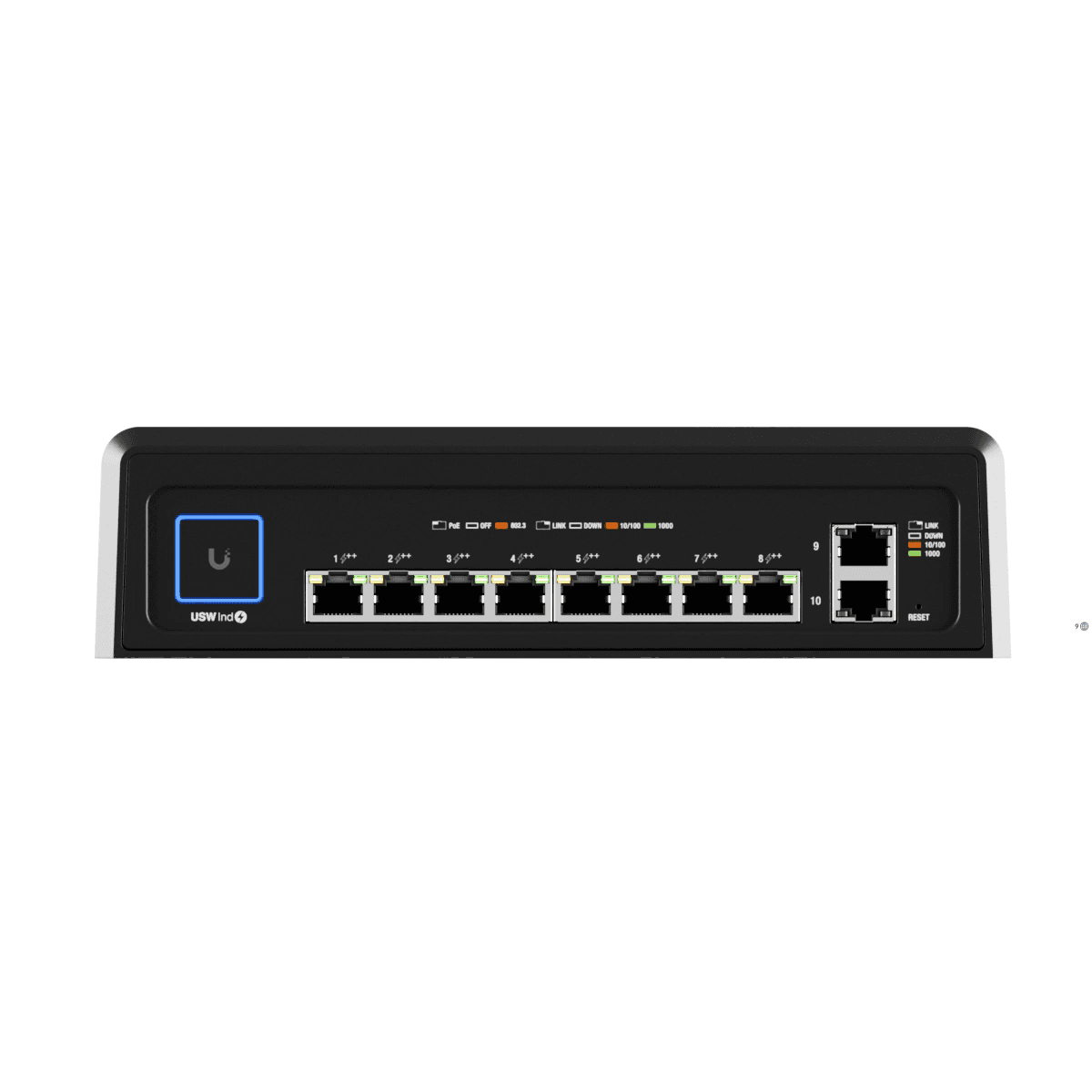

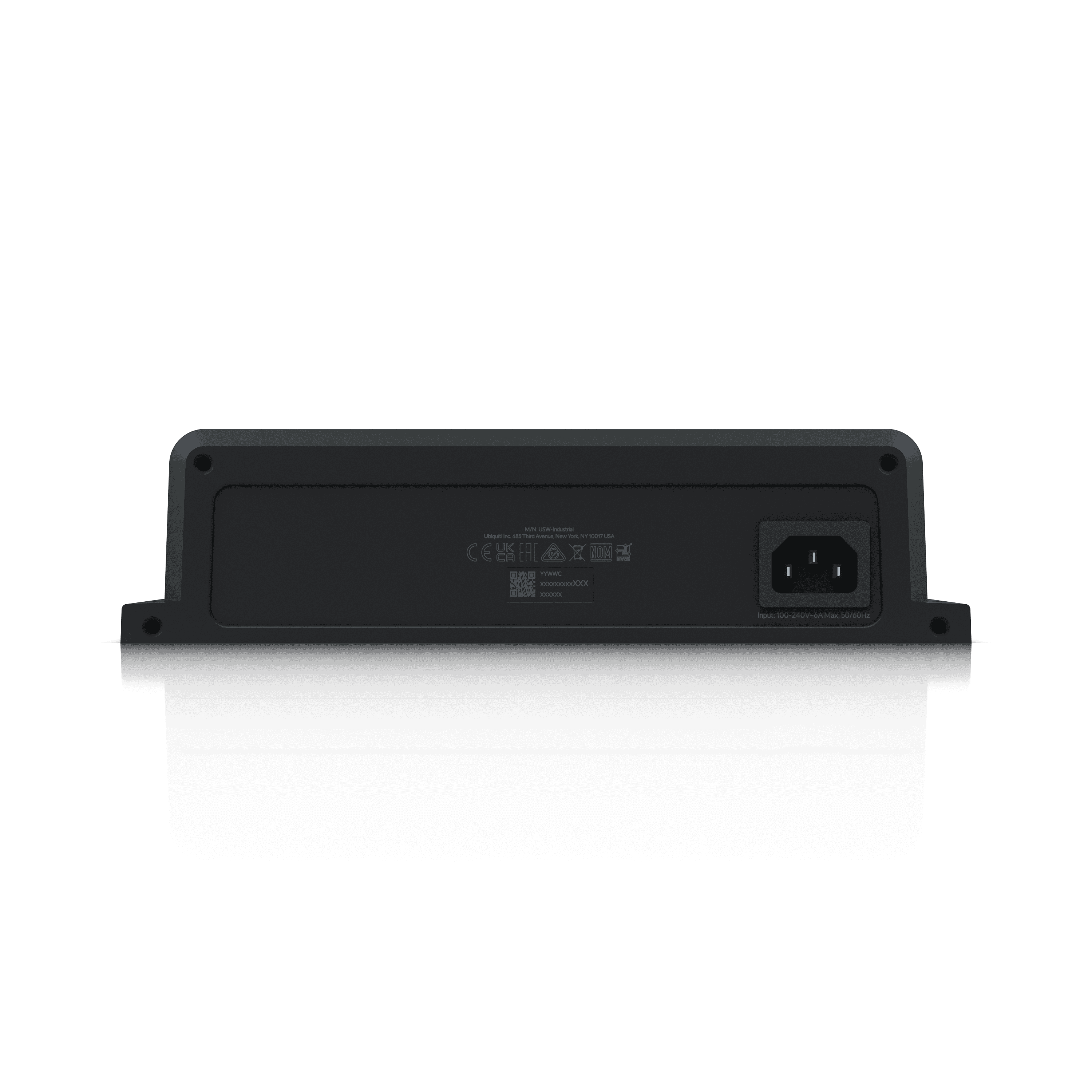

USW-Industrial

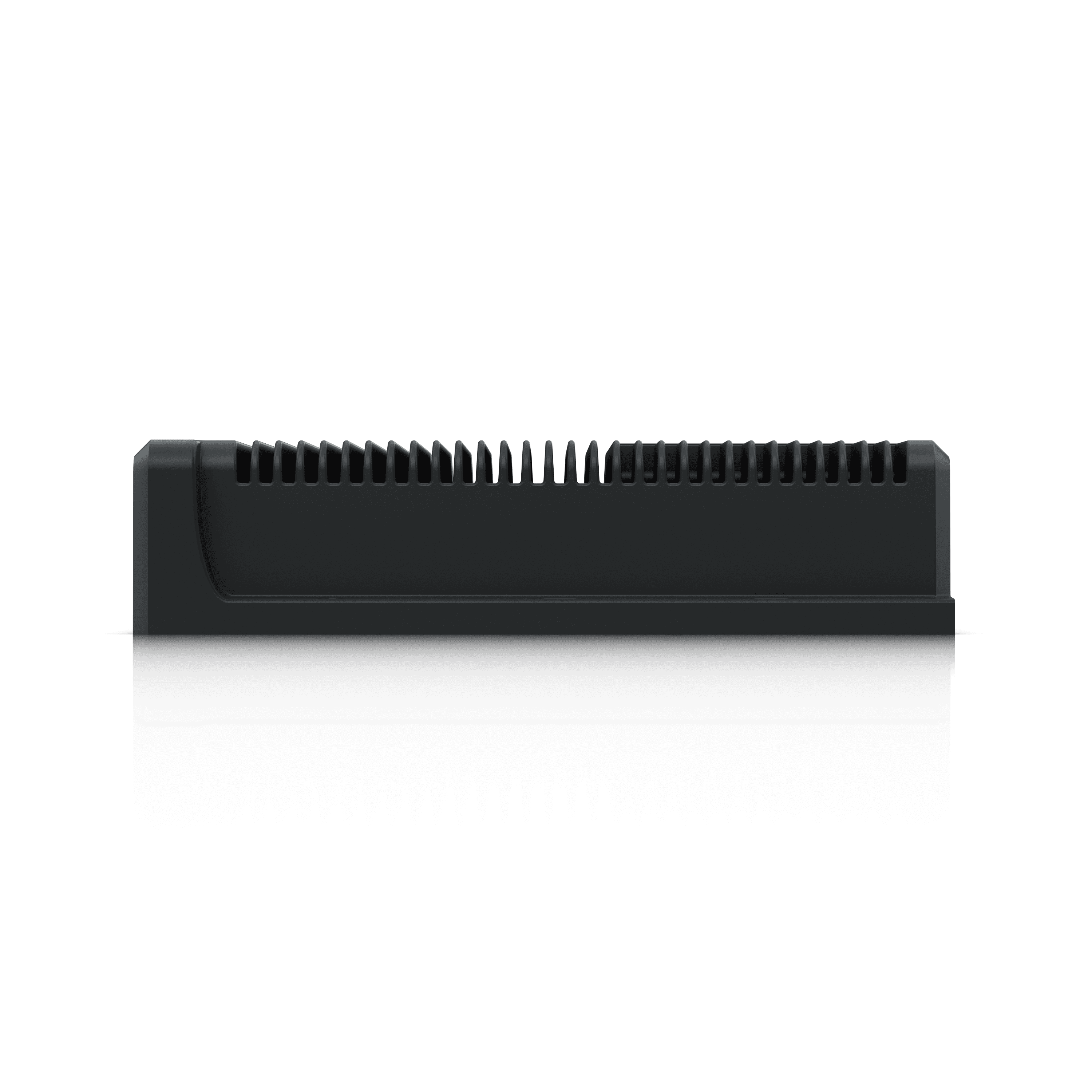

An 8-port, Layer 2 PoE switch with a silent, fanless cooling system.

Switch Industrial

Industrial

Default

Features:
<ul>
<li>Bendable booted RJ45</li>
<li>Ultra-thin OD 3mm</li>
<li>Cable length 0.1 m up to 8 m</li>
<li>Pass TIA-568-B.2 Cat6 Channel test by Fluke</li>
</ul>

UC-Patch-RJ45

Color

White

Blue

Black

Length

0.1 m

0.3 m

0.1 m (50-pack)

Ethernet Patch Cable

UniFi Patch Cable

White / 0.1 m

Blue / 0.1 m

Black / 0.1 m

White / 0.3 m

Blue / 0.3 m

Black / 0.3 m

White / 1 m

Blue / 1 m

Black / 1 m

White / 2 m

Blue / 2 m

Black / 2 m

White / 3 m

Blue / 3 m

Black / 3 m

White / 5 m

Blue / 5 m

Black / 5 m

White / 8 m

Blue / 8 m

Black / 8 m

White / 0.1 m (50-pack)

Blue / 0.1 m (50-pack)

Black / 0.1 m (50-pack)

USW-Lite-16-PoE

A wall-mountable, 16-port, Layer 2 PoE switch with a fanless cooling system.

Lite 16 PoE

Switch Lite 16 PoE

USW-Lite-8-PoE

An 8-port, Layer 2 PoE switch supporting silent fanless cooling.

Lite 8 PoE

Switch Lite 8 PoE

US-8-60W

Pack Type

8 PoE (Gen1)

Switch 8 PoE (60W)

USW-Flex-XG

A compact, 5-port, Layer 2 switch that supports 10 GbE speeds and can be powered with PoE or a 5V USB-C adapter.

Flex 10 GbE

Switch Flex XG

US-XG-6POE

A Layer 3, PoE switch with (4) 10 GbE, PoE++ RJ45 ports and (2) 10G SFP+ ports.

XG 6 PoE (Gen1)

Switch XG 6 PoE

USW-Flex

Pack

Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.

Flex

Switch Flex

USW-Flex-Utility

The Switch Flex Utility is an outdoor weatherproof enclosure designed for use with the Switch Flex.

Flex Utility

Switch Flex Utility

USW-Flex-Mini

A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.

Flex Mini

Switch Flex Mini

USW-Pro-8-PoE

An 8-port, Layer 3 switch with PoE+ and PoE++ output.

Professional 8 PoE

Switch Professional 8 PoE

USW-Enterprise-8-PoE

An 8-port, Layer 3 switch with 2.5 GbE PoE+ output.

Enterprise 8 PoE

Switch Enterprise 8 PoE

US-8-150W

An 8-port, Layer 2 PoE switch with a fanless cooling system.

8 PoE, SFP (Gen1)

Switch 8 PoE (150W)

Single Unit

5-Pack

3-Pack

Mechanical

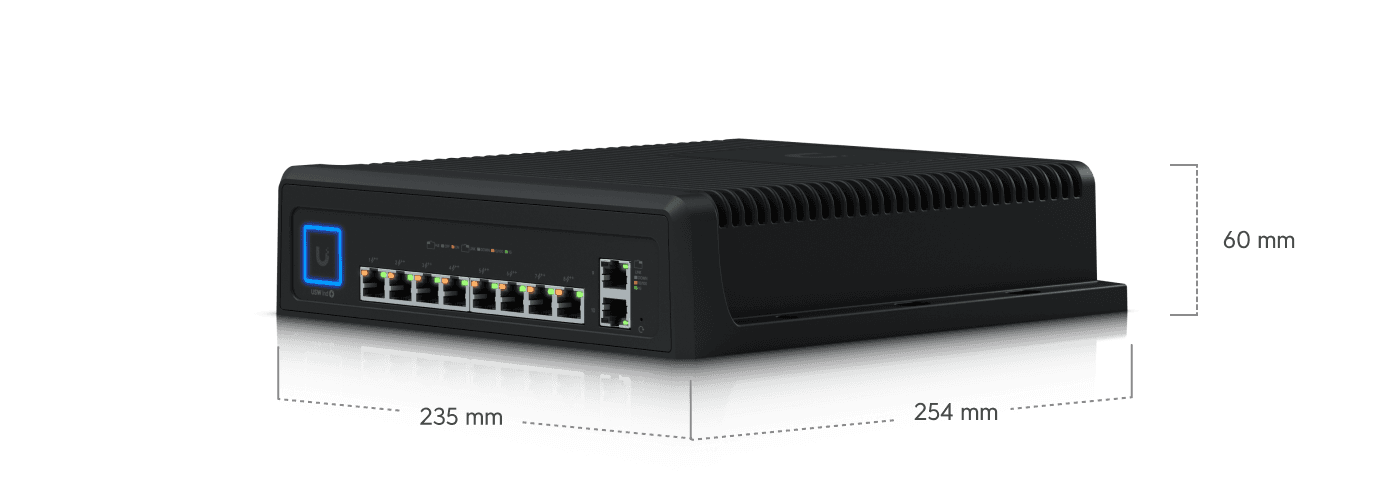

Dimensions	254 x 235 x 60 mm (10 x 9.3 x 2.4")
Weight	3.9 kg (8.5 lb)
Enclosure material	Die-cast aluminum with black powder coated finish
Hardware
Management interface	Ethernet In-Band
Networking interface	(8) GbE, PoE++ RJ45 ports (2) GbE RJ45 ports
PoE interface	(8) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput	10 Gbps
Switching capacity	20 Gbps
Forwarding rate	14.88 Mpps
Power method	Universal input, 100—240V AC, Max. 6A, 50/60 Hz
Power supply	AC/DC, internal, 450W
Supported voltage range	100—240V AC
Max. power consumption	20W (Excluding PoE output)
Total available PoE	430W
Max. PoE wattage per port by PSE	PoE++: 60W
Voltage range PoE mode	PoE++: 50—57V
ESD/EMP protection	Air: ± 24kV, contact: ± 24kV
Shock and vibration	ETSI300-019-1.4 Standard
Operating temperature	Internal AC/DC @ 450W: -40 to 50° C (-40 to 122° F) Internal AC/DC @ 240W: -40 to 60° C (-40 to 140° F)
Operating humidity	5 to 95% noncondensing
Certifications	FCC, IC
LEDs
System	Status
Ethernet	PoE Speed/link/activity
