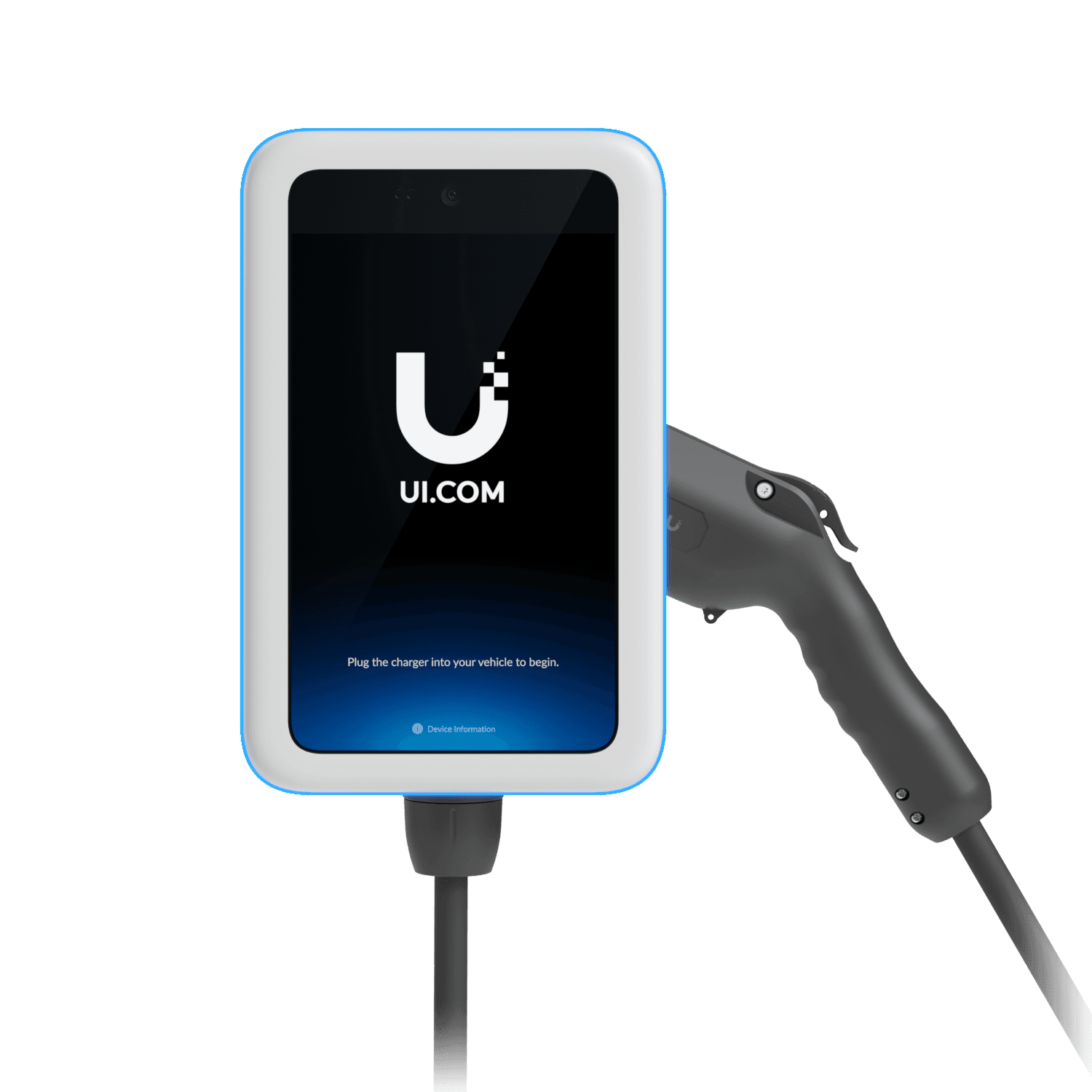

EV Station Pro
UC-EV-Station-Pro
$1,199.00

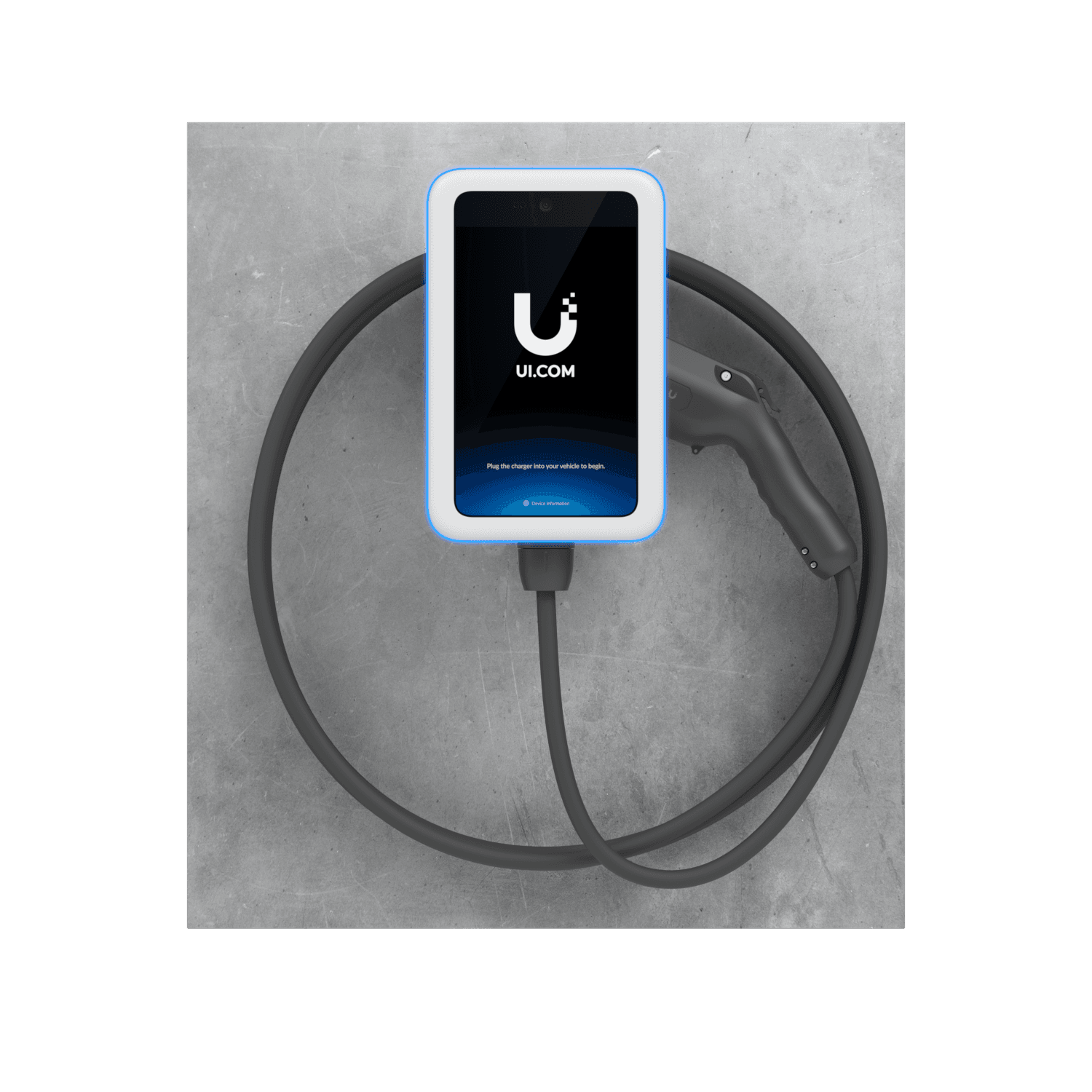

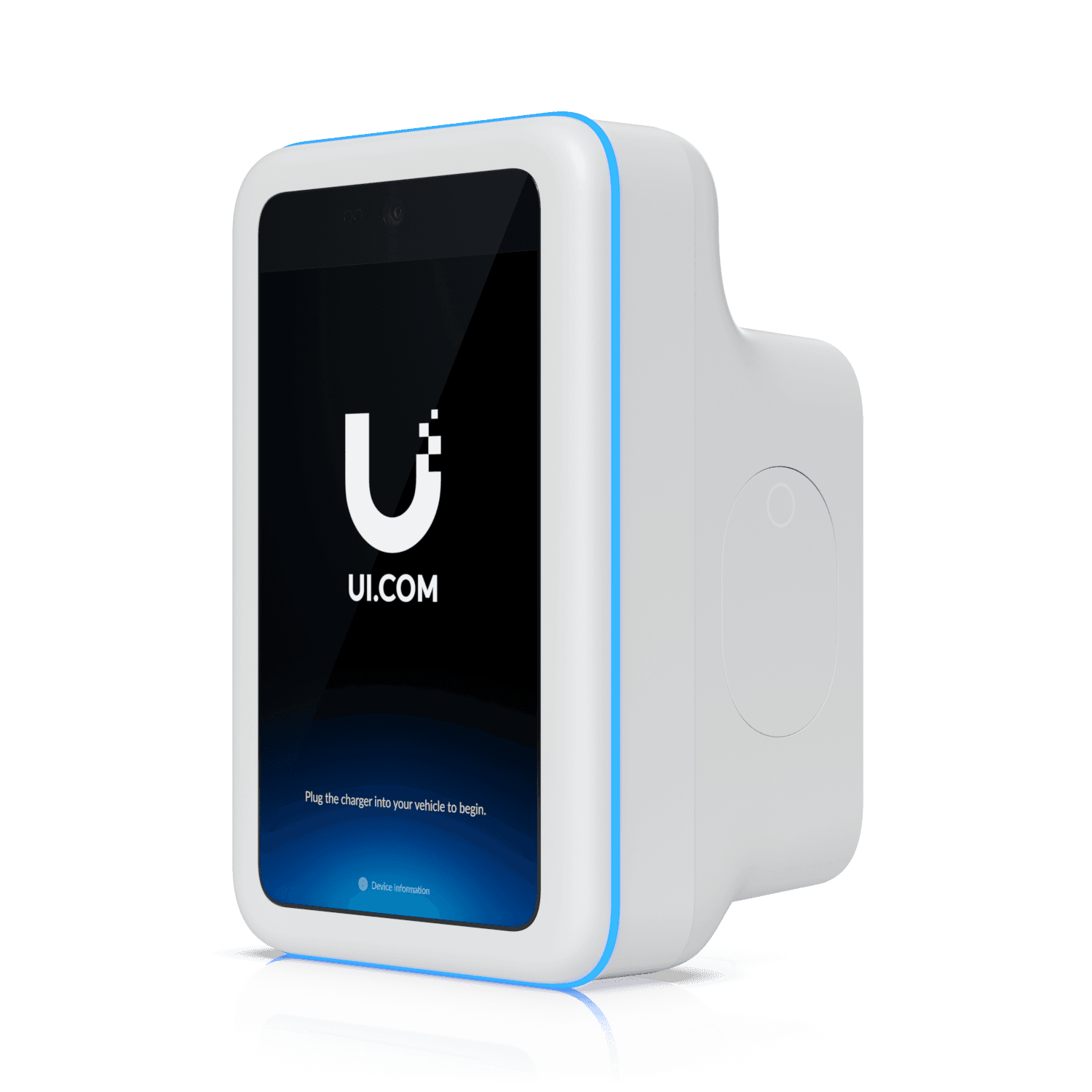

Weatherproof, 11 kW Level 2 electric vehicle charging station with an ultra-bright 10.1" touch display, flexible access control, and payment terminal accessory support.

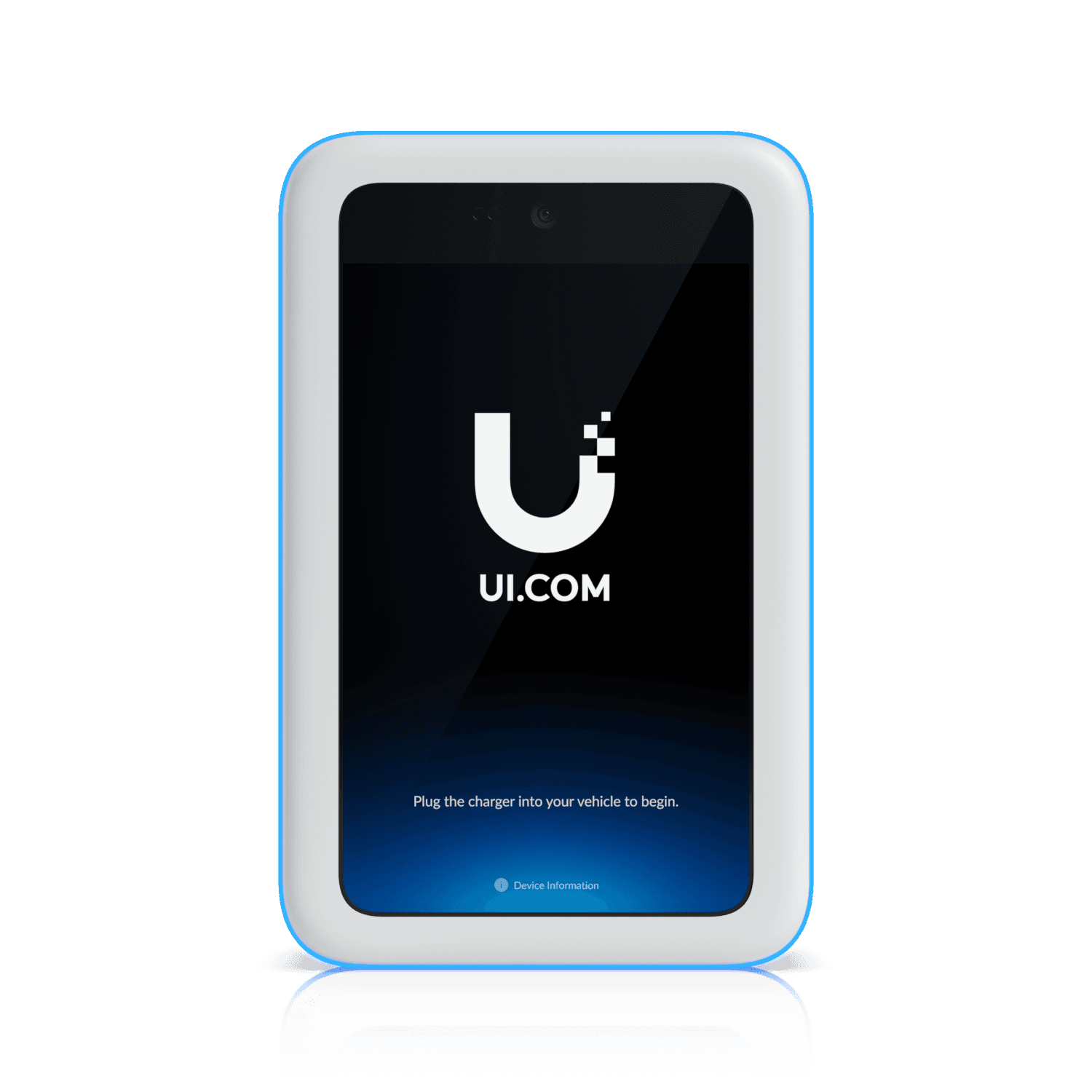

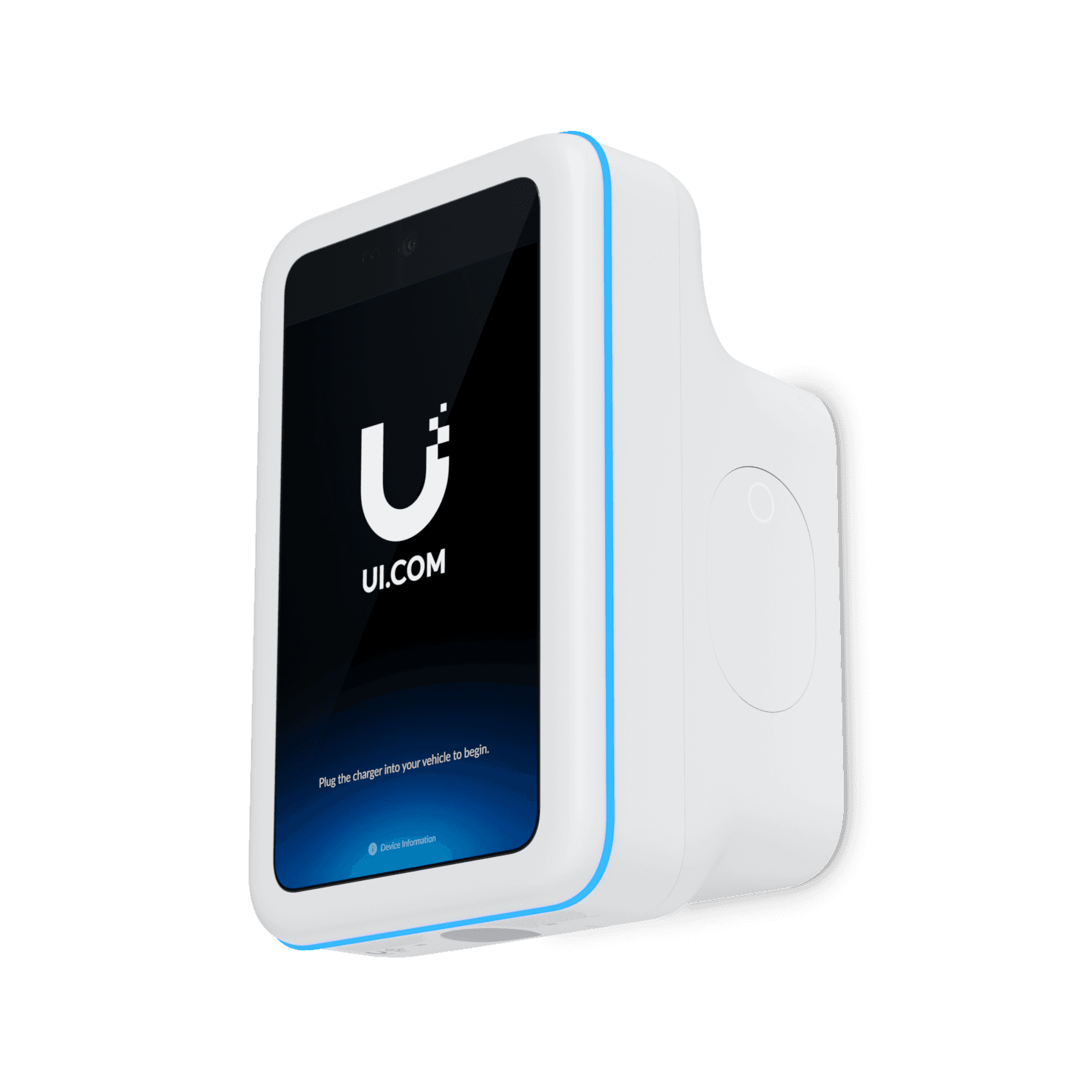

Ultra-bright 10.1" touch display

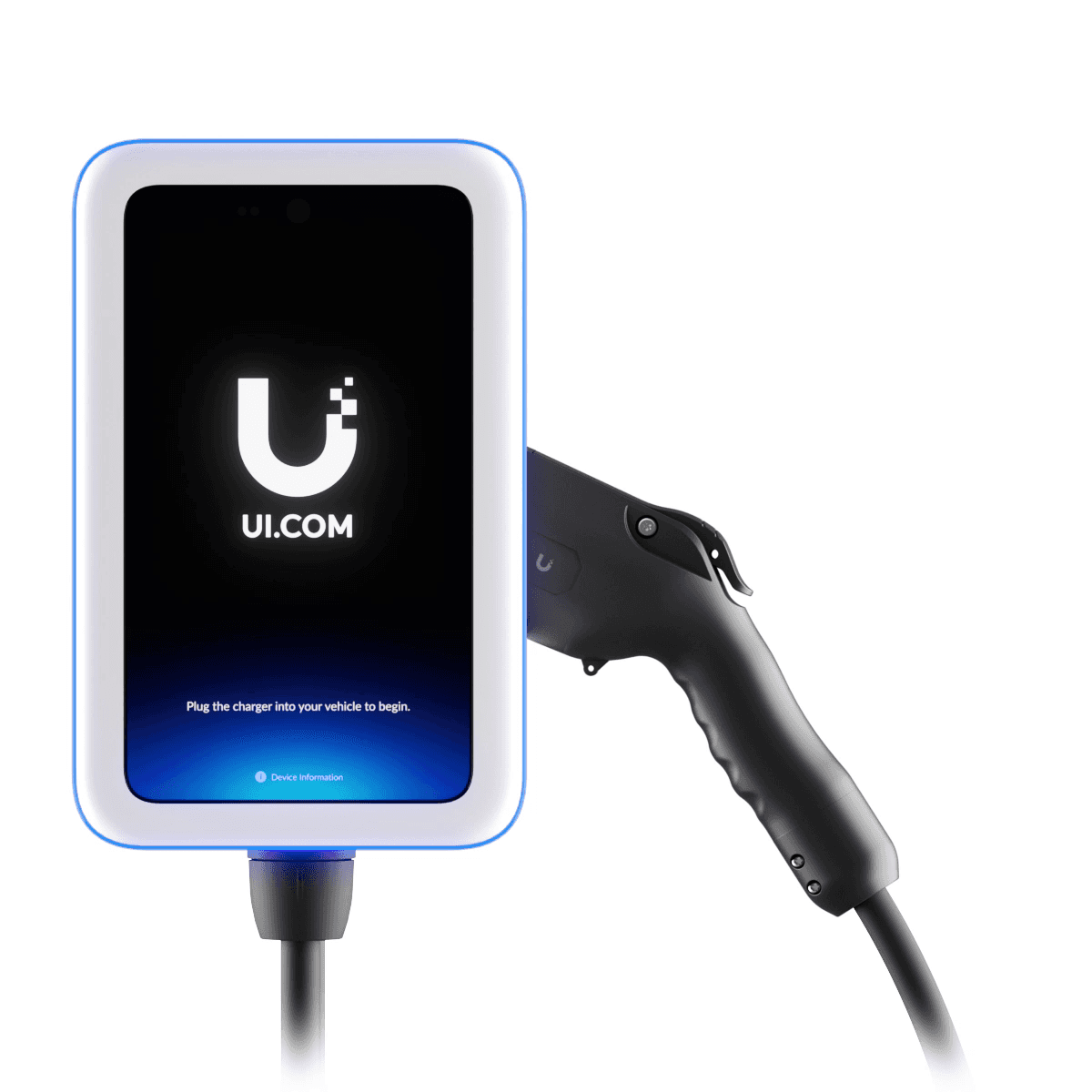

11 kW max charging output with SAE J1772 charging plug

Media content playback for digital signage applications

Access control with QR code scanning, UniFi Identity mobile app, and NFC card*

Payment terminal accessory support for payment processing

Hardwire or use one of the included NEMA 14-50 and 6-50 cables for plug-in installation

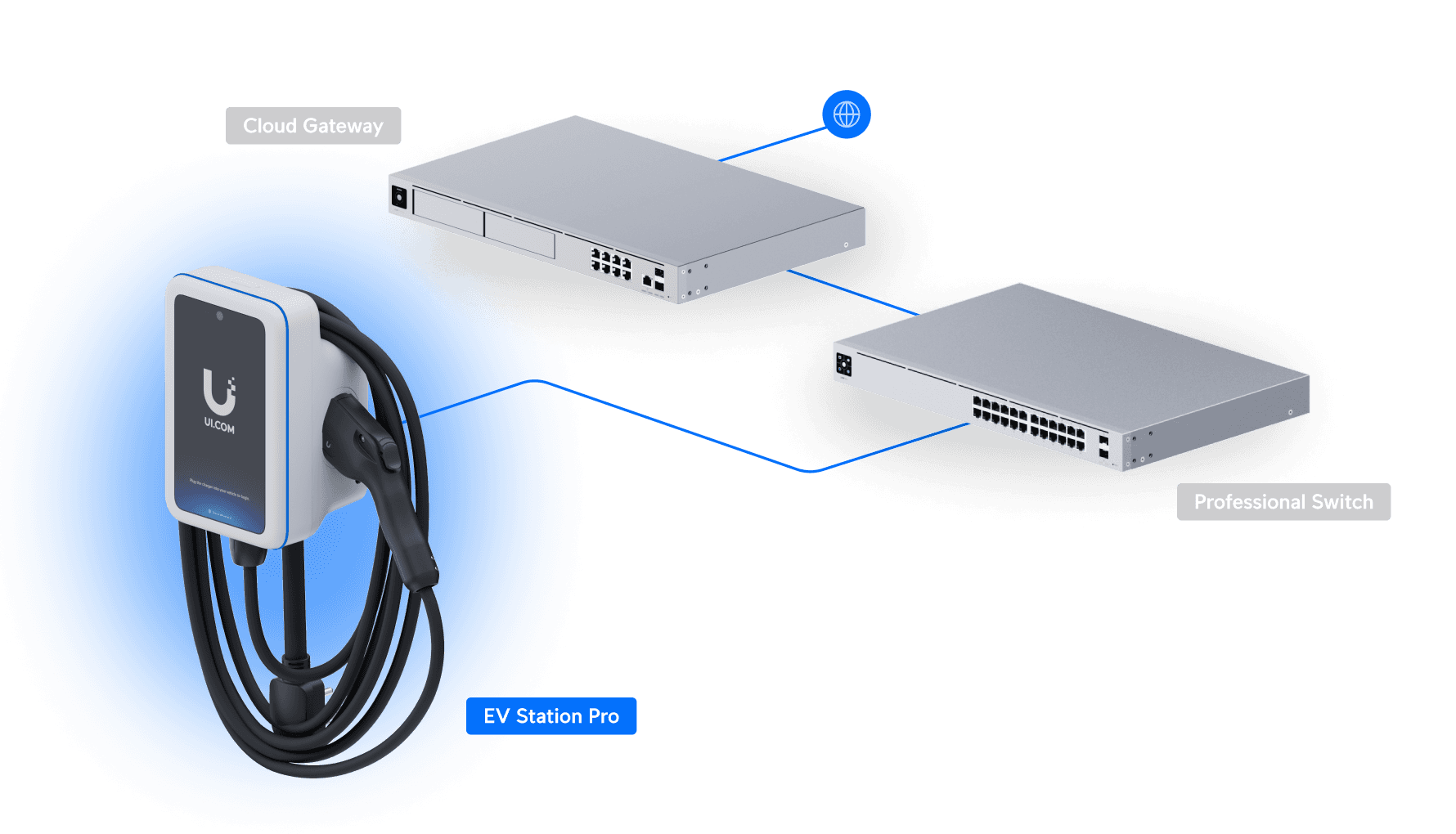

Connected with UniFi WiFi Auto-Link** or Ethernet

UL certified

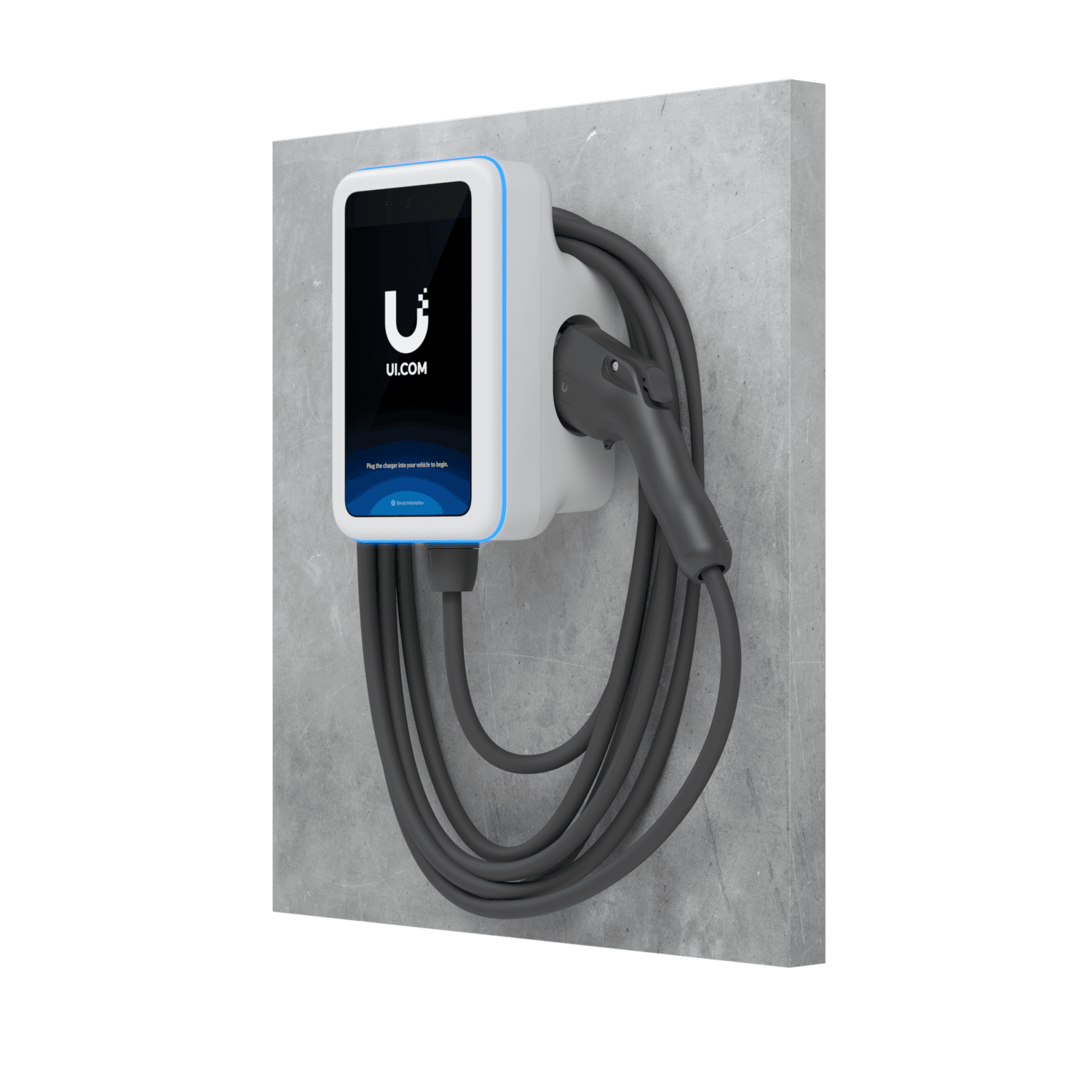

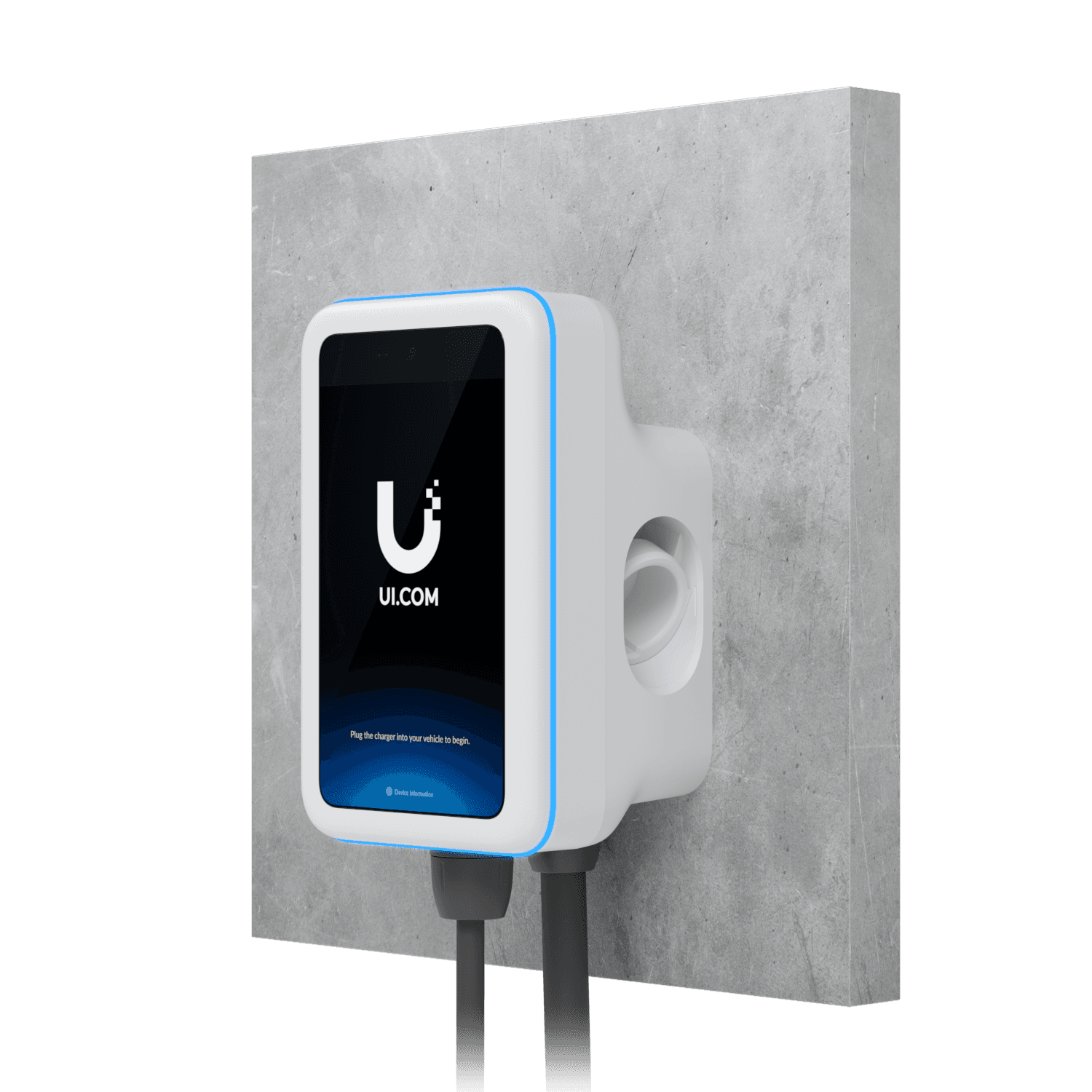

Includes wall mount

*UniFi Access must be running on the same console as UniFi Connect with a Control Hub and Access Reader adopted for NFC card registration.
**UniFi WiFi Auto-Link supported with version 1.0.262 and later. Third-party WiFi configuration is not supported.

EV Station Pro Payment Terminal
$349.00
Sold Out
EV Station Stand
$399.00
Installation Guide
Technical Specifications
Mechanical

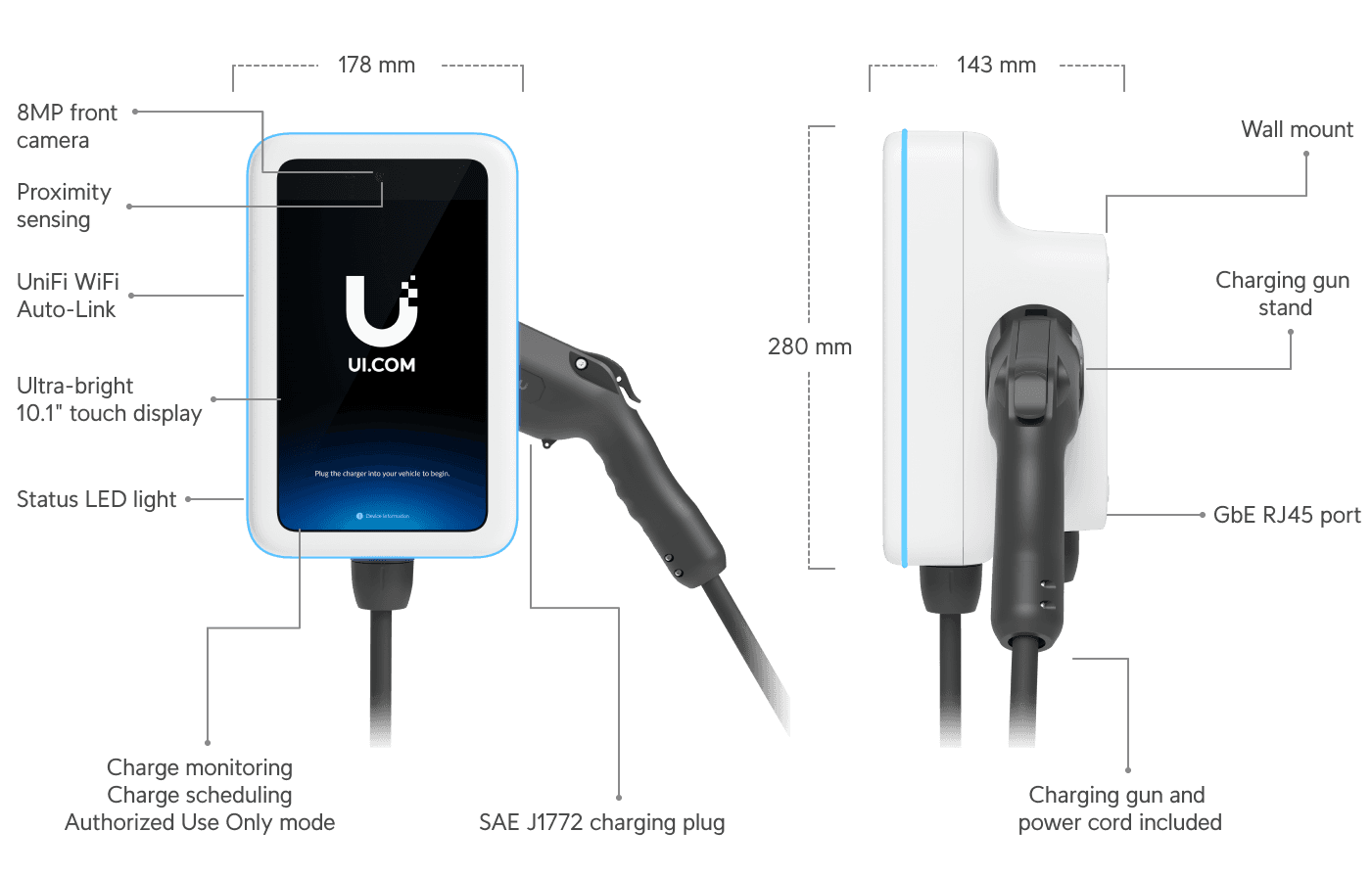

Dimensions280 x 178 x 143 mm (11 x 7 x 5.6”)
WeightWith wall mount/charging gun/power cord: 8.1 kg (17.9 lb)
Enclosure materialFront modules: plastic
Middle module: aluminum, plastic
Mount materialPlastic
Charging cable length7 m (23 ft)
WeatherproofingType 3R

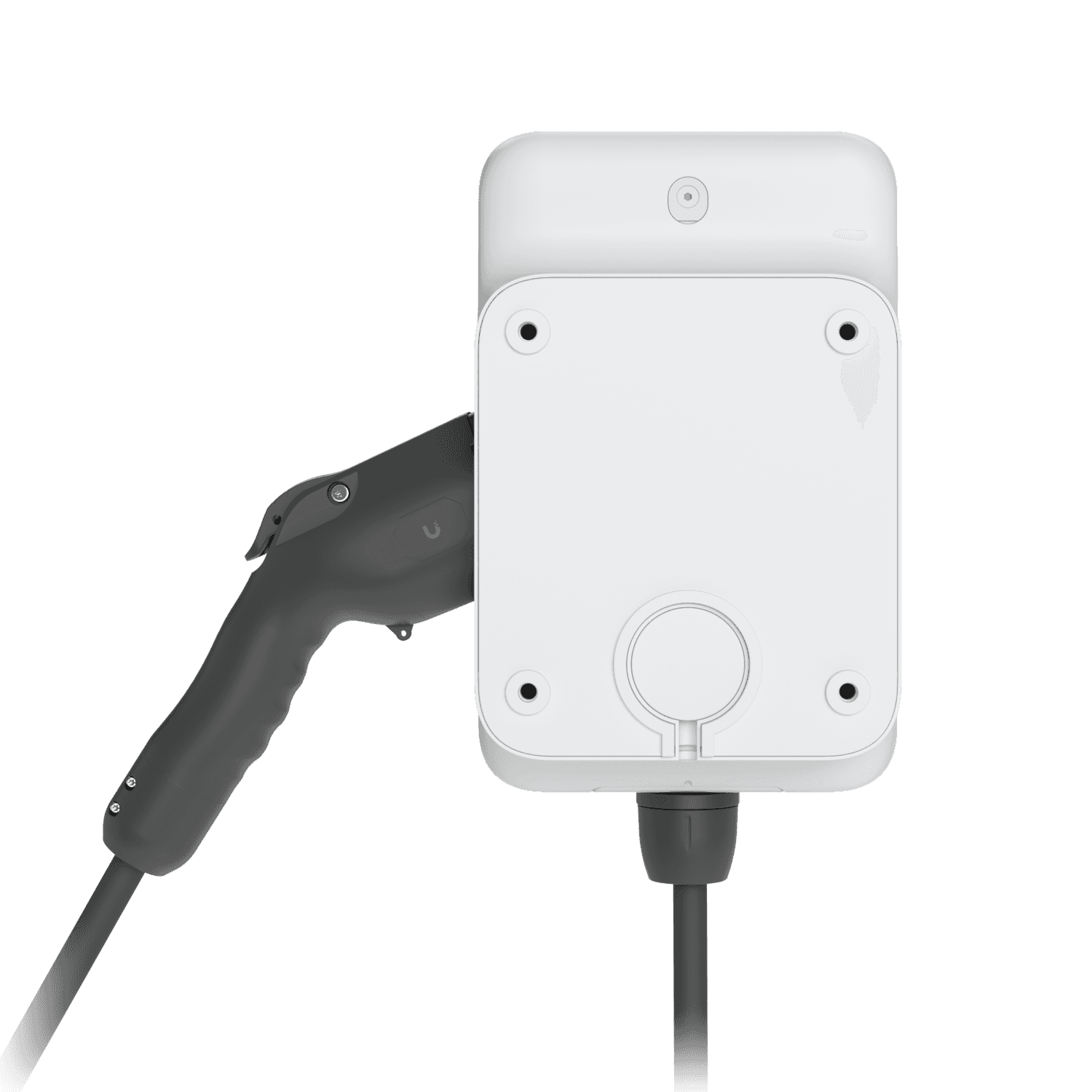

Charging outletSAE J1772
Hardware
Display size257 mm (10.1") diagonal
Resolution800 x 1280 (10:16)
Display luminance800 nits (typical)
Touch screen technologyCapacitive multi-touch
ProcessorOcta-core Arm® Cortex®-A53, 2.2 GHz
MemoryStorage: 32GB
RAM: 3GB
Power input200–240V ~ 50A, 50/60Hz, 1φ
Power output200–240V ~ 50A, 50/60Hz, 1φ
Circuit breaker for charging output
Circuit rating Max. load Plug-in Hardwired
70A 50A No Yes
60A 48A No Yes
50A 40A Yes Yes
40A 32A Yes Yes
30A 24A Yes Yes
20A 16A Yes Yes


The circuit must be rated for 125% of the maximum load.

Note. The EV Station can be wired to support higher amperages. Please consult your electrician codes for breaker and wire sizing requirements. The field-wiring terminal is rated up to 105° C, and is compatible with wiring up to 16 mm2 (6 AWG).

Connectivity(1) GbE RJ45 port
(1) USB-C port for payment terminal accessory
Bluetooth® 4.2
SensorsALS + PS (ambient light sensor + proximity sensor)
Embedded front camera8 MP
WiFi standards802.11 a/b/g/n/ac
MountingWall mount and stand
Ambient operating temperature-40 to 50° C (-40 to 122° F)
Ambient operating humidity5 to 90% noncondensing
CertificationsFCC, IC, UL
Software
Management applicationUniFi Connect web: Version 3.2.4 and later
UniFi Connect iOS™ and Android™: Version 2.2.1 and later
