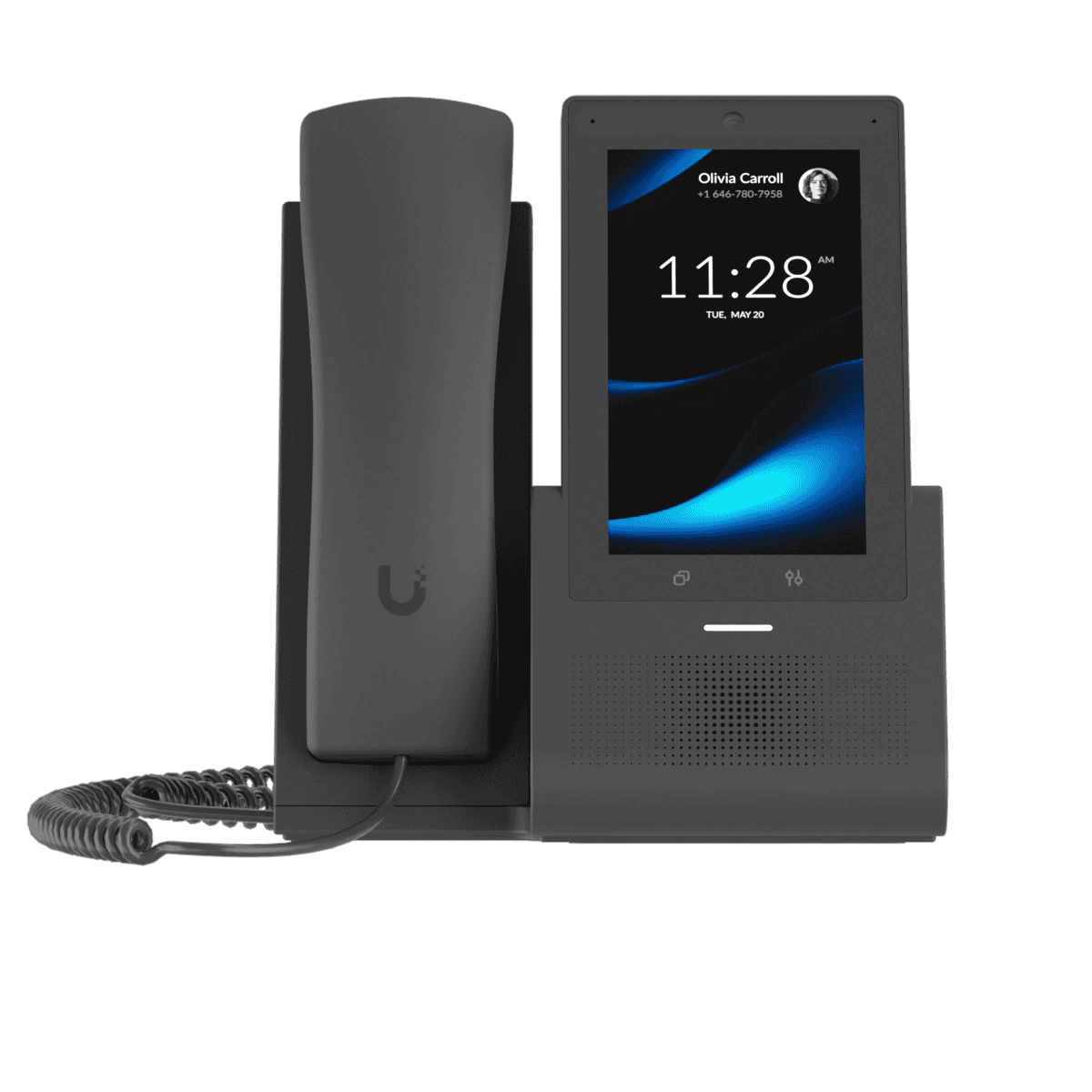

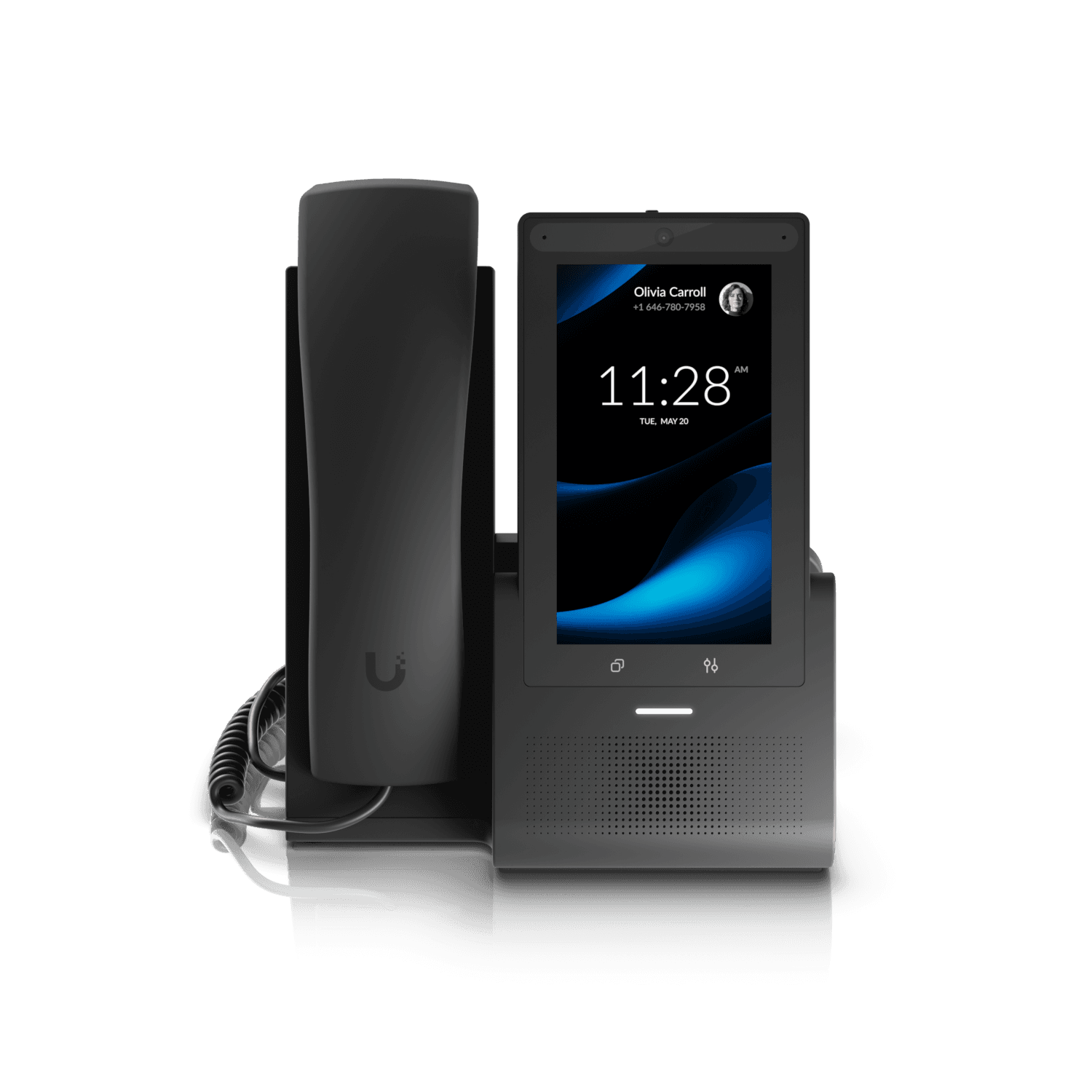

Phone Touch

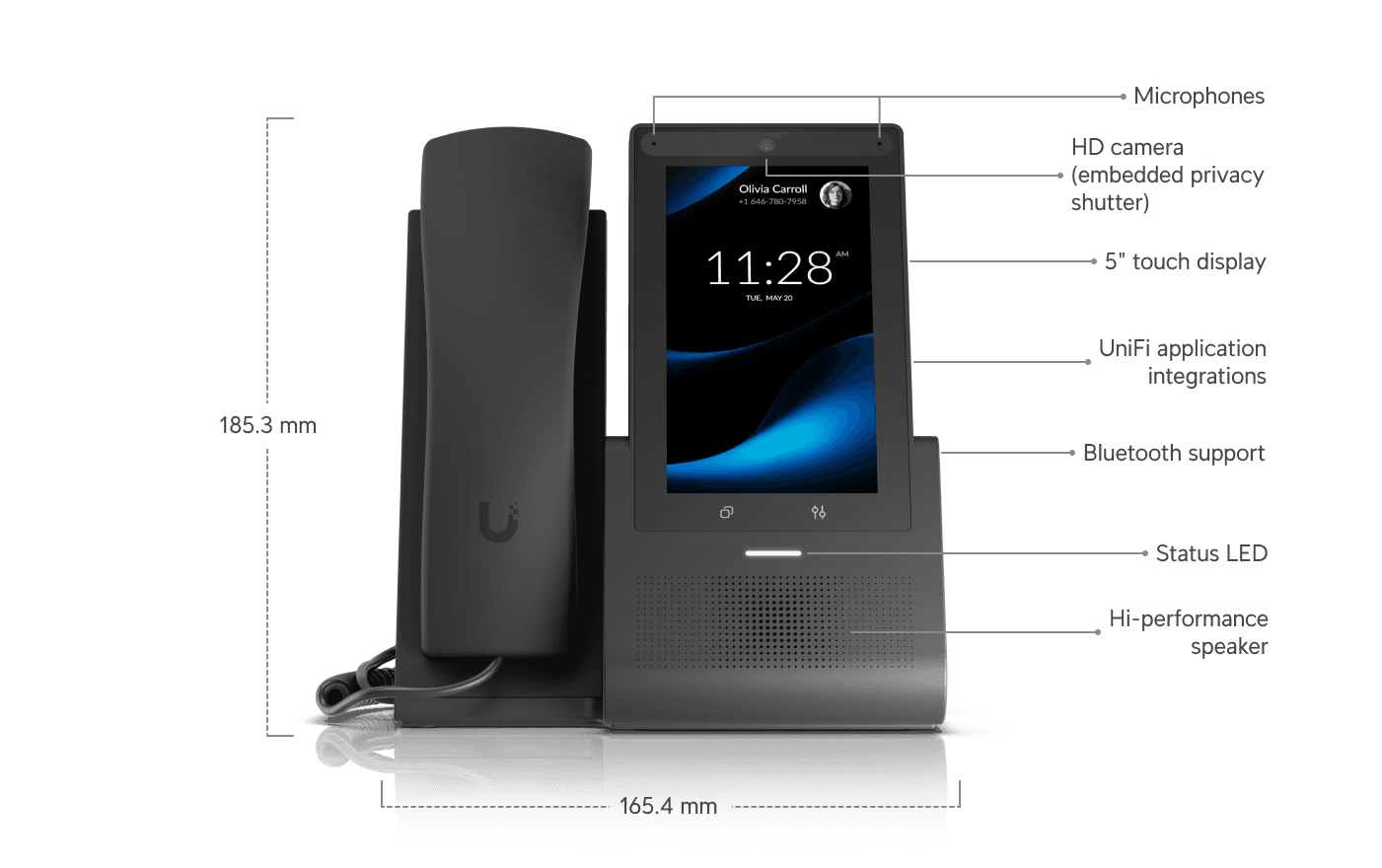

Versatile desktop smartphone that eliminates the learning curve.

5" touch display

Ergonomic handset with mute button


Bluetooth support

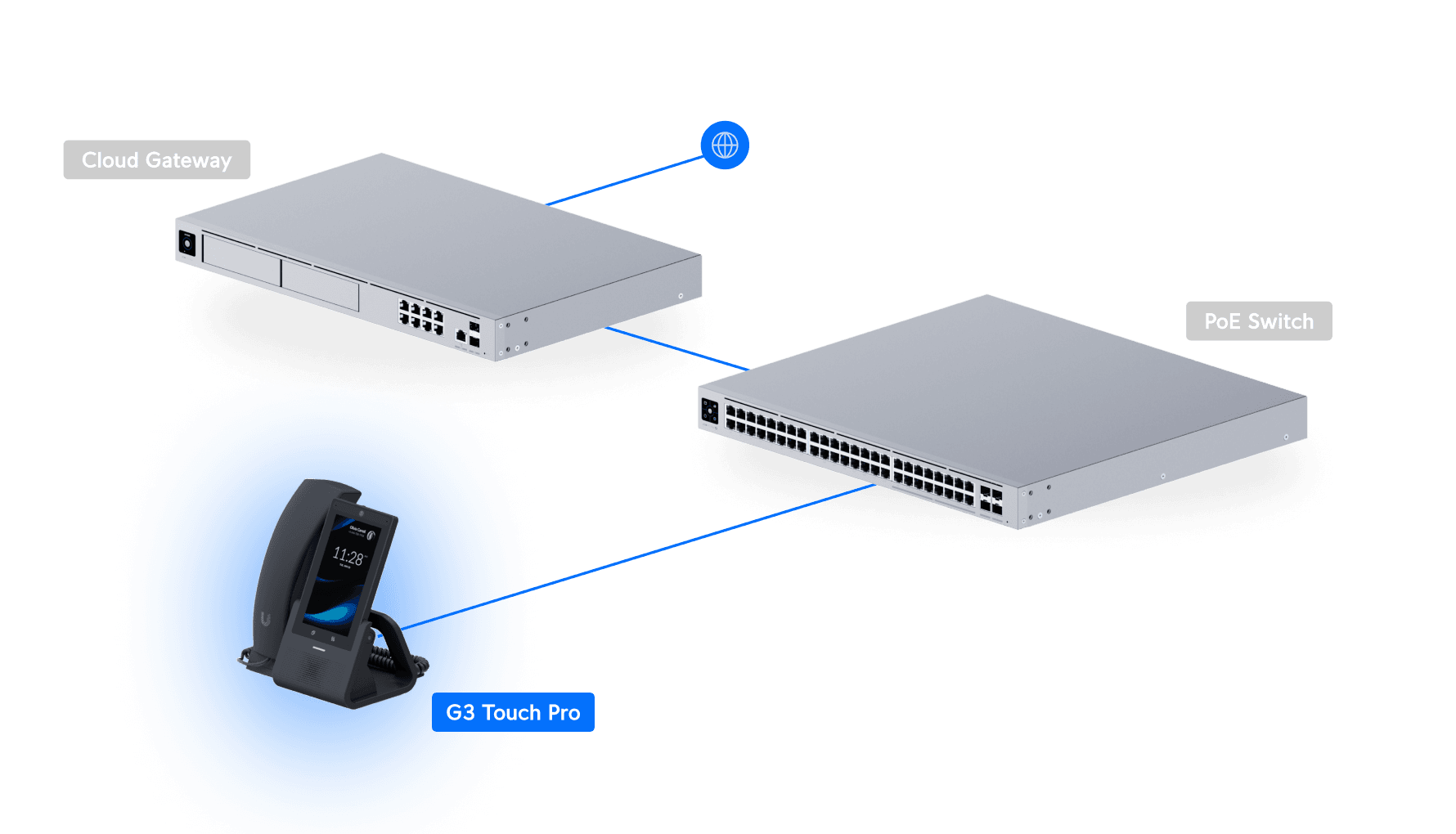

PoE in

In Canada, managed with the UniFi Talk application version 1.21.0 and later

Note. Subscription Locked phones must be assigned to a user with a unique, personal UniFi Talk phone number and have an Internet connection to function. We recommend Subscription Unlocked phones for configurations where users only share numbers with a group and are not assigned a unique, personal UniFi Talk phone number.

UniFi Talk will be available in the UK in Q3 2023 and in Germany in Q4 2023.

Installation Guide
Technical Specifications
Dimensions166 x 140 x 183 mm (6.5 x 5.5 x 7.2")
Weight1.10 kg (2.43 lb)
Enclosure materialsPlastic, aluminum (base)
Display size127 mm (5") diagonal
Resolution720 x 1280 HD (16:9)
Screen technologyG+F Multi-touch
Camera sensor5 MP
Resolution2592 x 1944
Handset dynamic receiver16 ohm
SPL 116 dB at1 KHz, 30mW, 0 m
Handset microphoneOmnidirectional electret microphone
SNR 70 dB
Sensitivity -38 ± 3 dB
CodecStandalone Hi-Fi audio codec IC
Smart speaker amplifier
Hands-free speakerMono, 4 ohm
Nominal power: 2W
Max. power: 3W
SPL 80 dB at 1W, 0.5 m
Hands-free microphoneDual omnidirectional MEMS microphones
SNR 64 dB
Sensitivity -26 dBFS
Digital microphone
ProcessorOcta-Core ARM® Cortex® A53, 1.8 GHz
MemoryStorage: 32 GB
WiFi standards802.11 a/b/g/n/ac
Power inputPoE
Power outputType-C port (charging only)

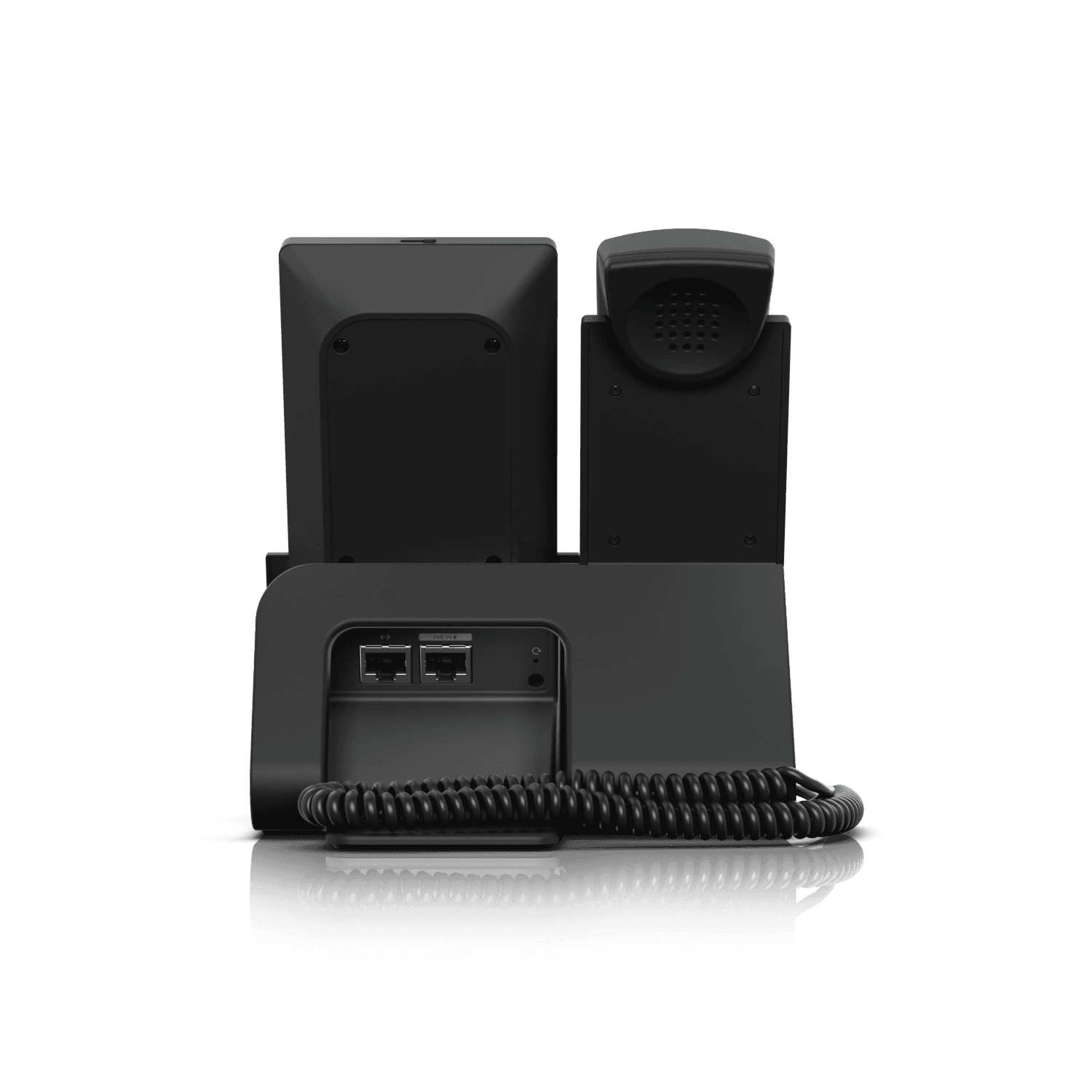

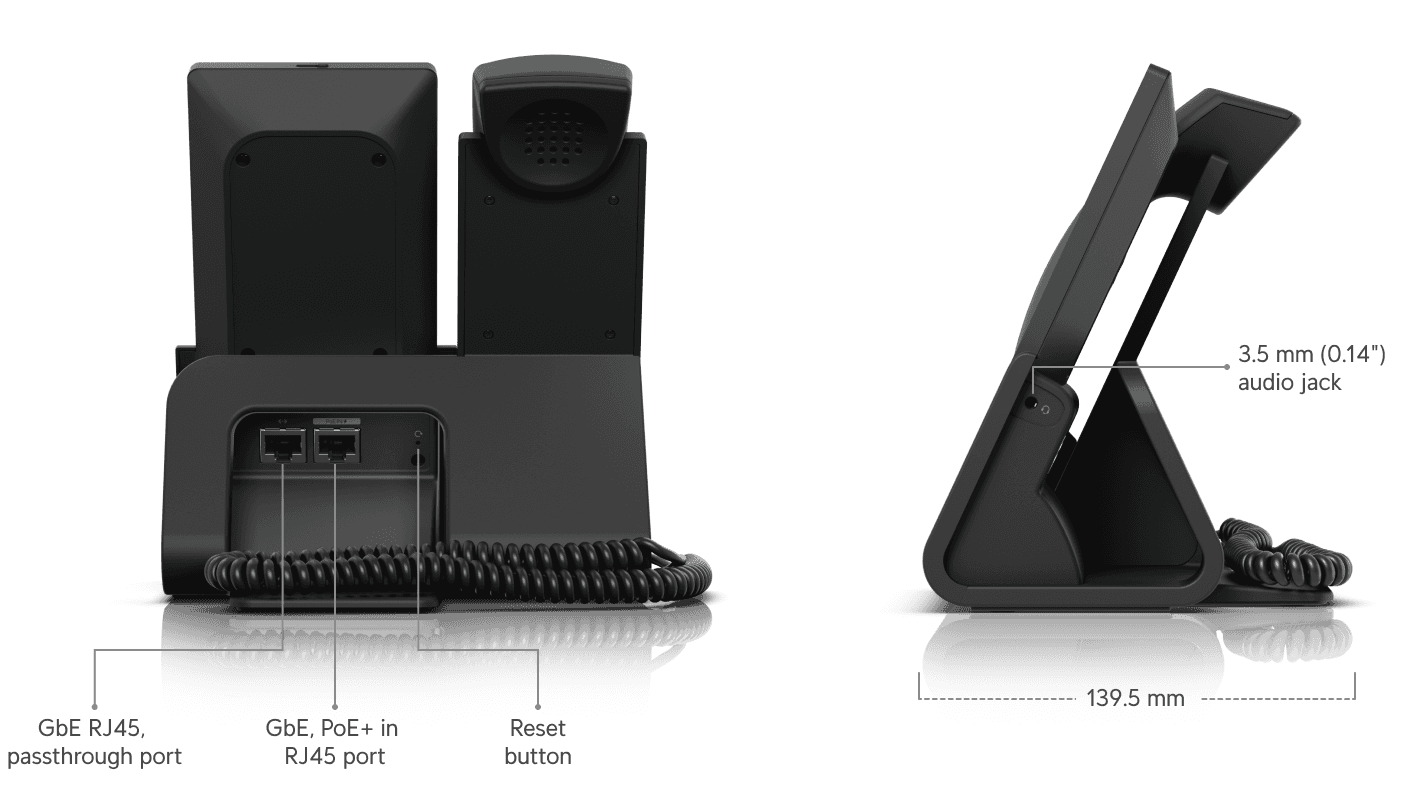

Connectivity(2) 10/100/1000 MbE RJ45
Bluetooth® 4.2
WiFi 2.4 GHz b/g/n, 20/40 MHz
WiFi 5 GHz a/n/ac, 20/40/80 MHz, slave DFS
Headset support3.5 mm (0.14") audio jack
Operating temperature0 to 40° C (32 to 104° F)
Operating humidity10 - 90% noncondensing
CertificationsFCC, IC, CE
LEDPower status
Audio DSP algorithmActive echo cancellation, noise suppression, blind source separation
Number of supported phone linesMultiple
UniFi OS applicationUniFi Talk
Minimum software requirementsWeb browser (Chrome™ recommended)
