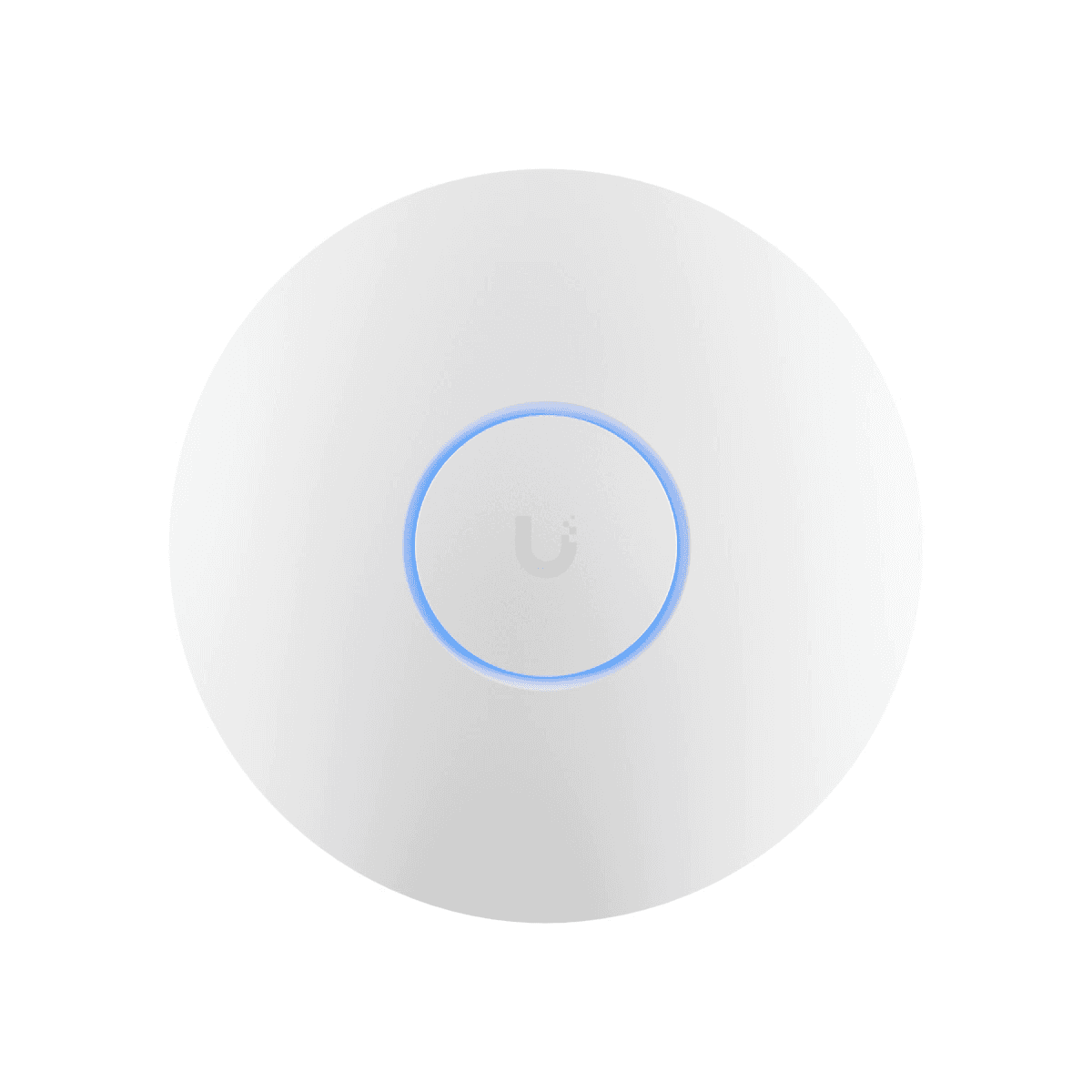

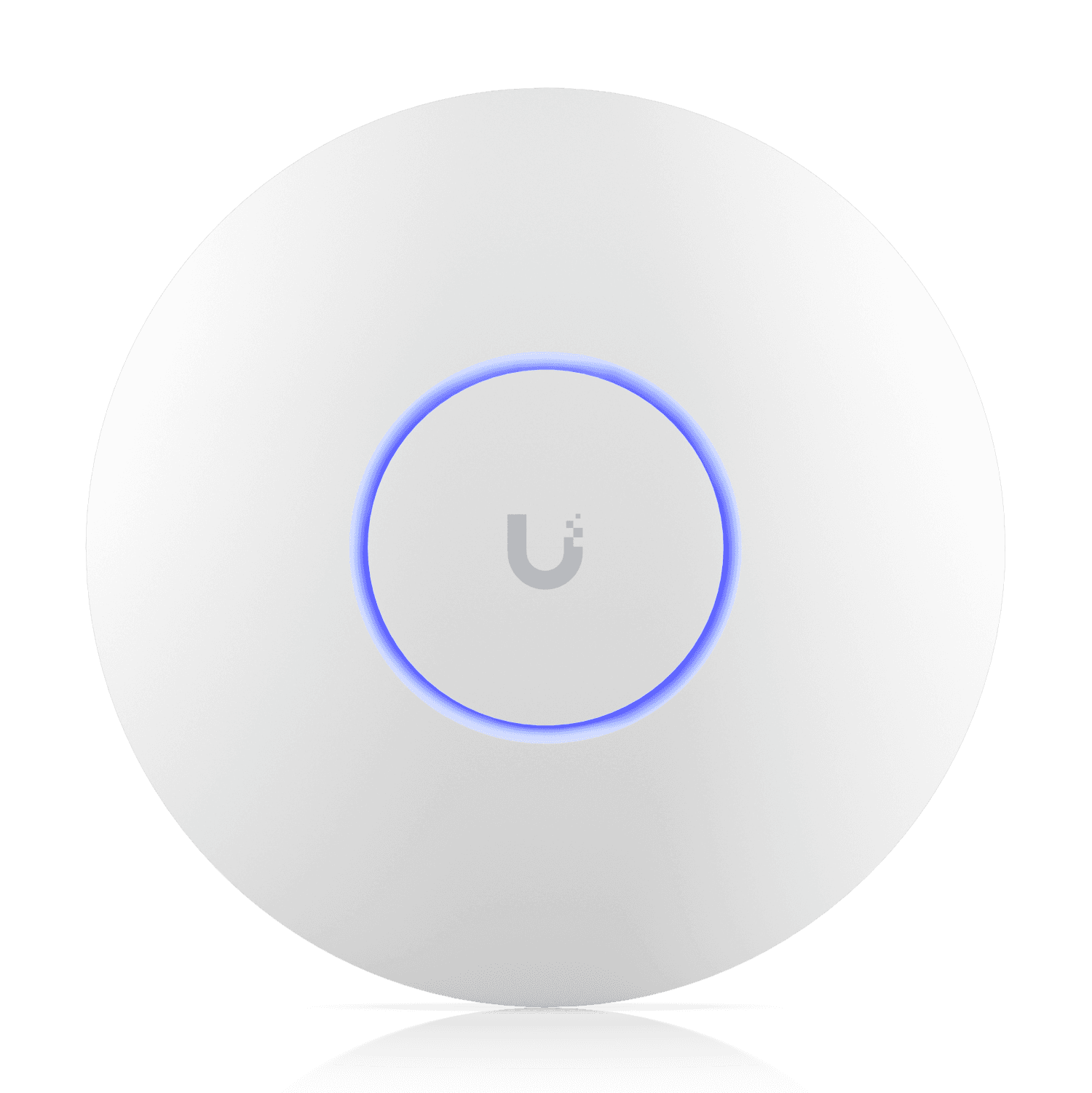

Access Point AC Long-Range

AC Long-Range
UAP-AC-LR
$109.00
Sold Out

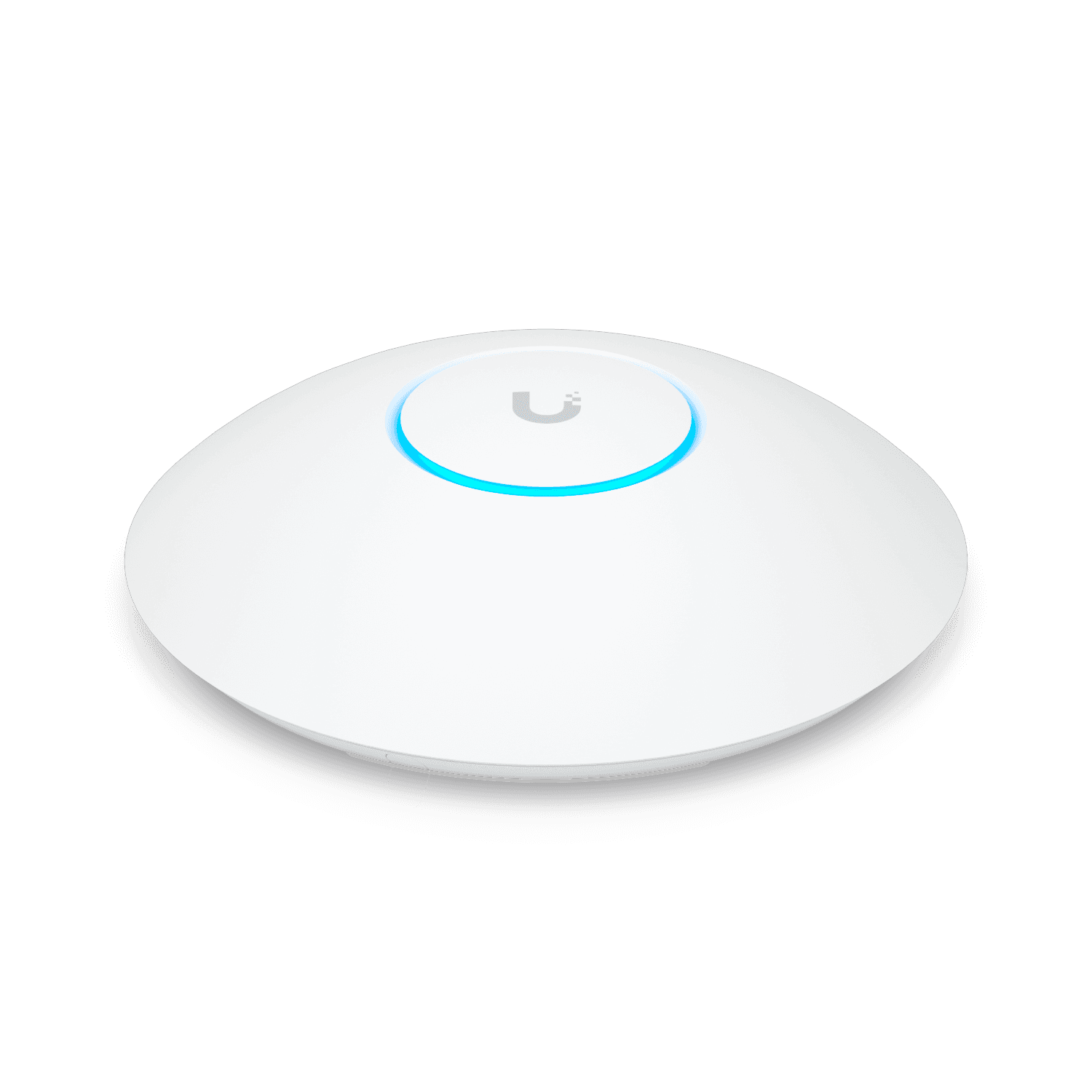

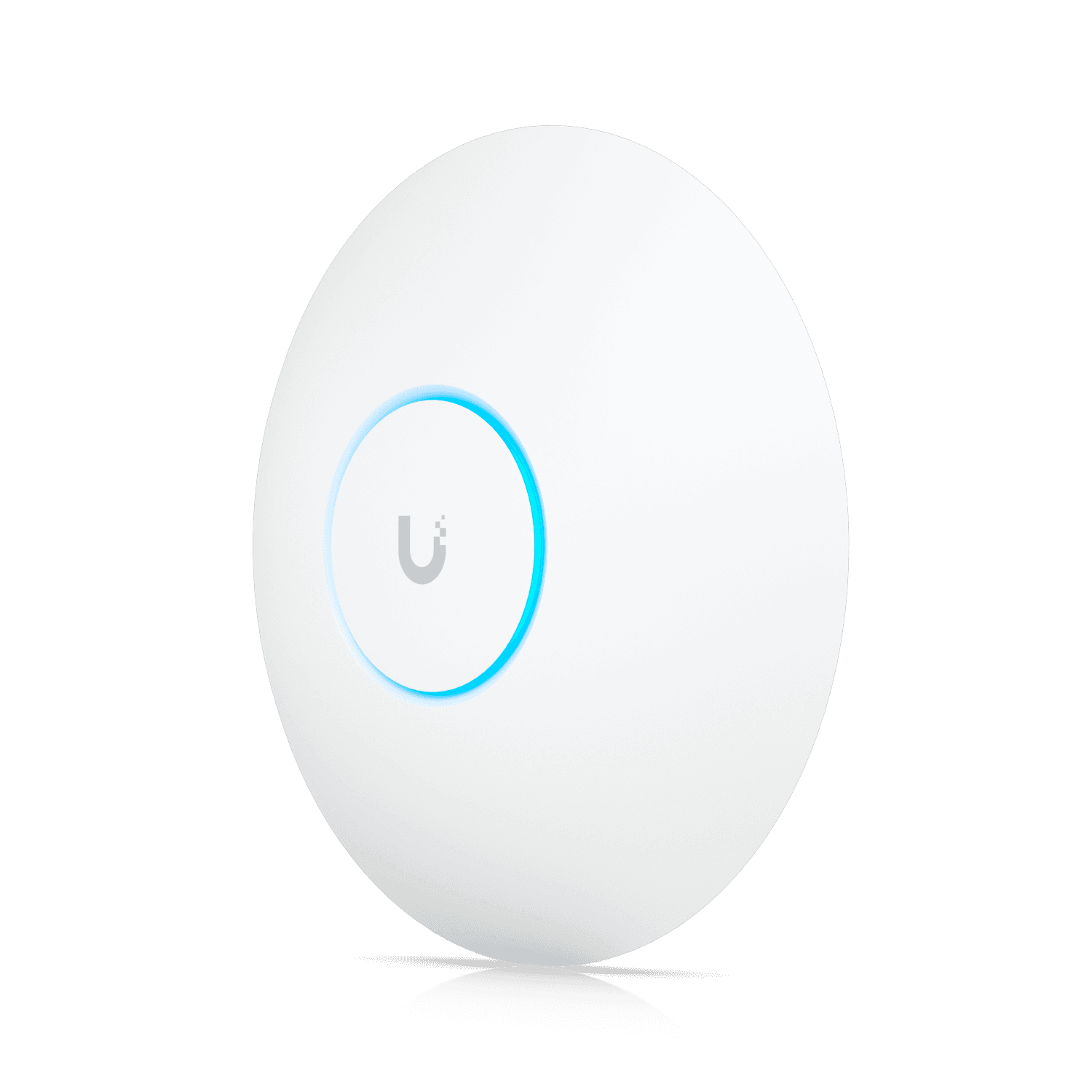

Ceiling-mounted WiFi 5 AP with 5 spatial streams and extended signal range.

WiFi 5

5 spatial streams

185 m² (2,000 ft²) coverage

250+ connected devices

Powered using PoE*

GbE uplink

*PoE power adapter included with single unit purchases.

To subscribe to back in stock e‑mails.
Installation Guide
Technical Specifications
Mechanical

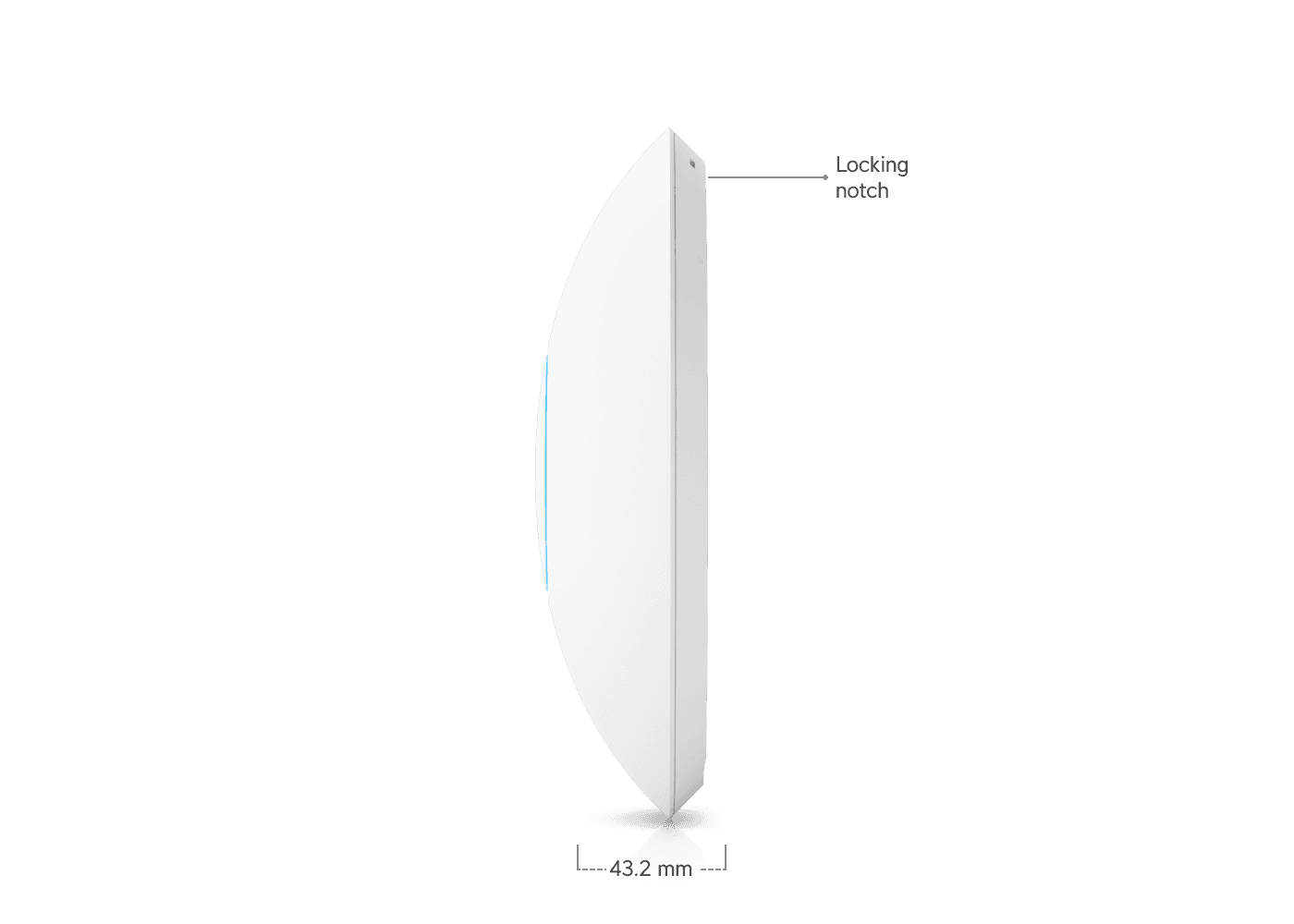

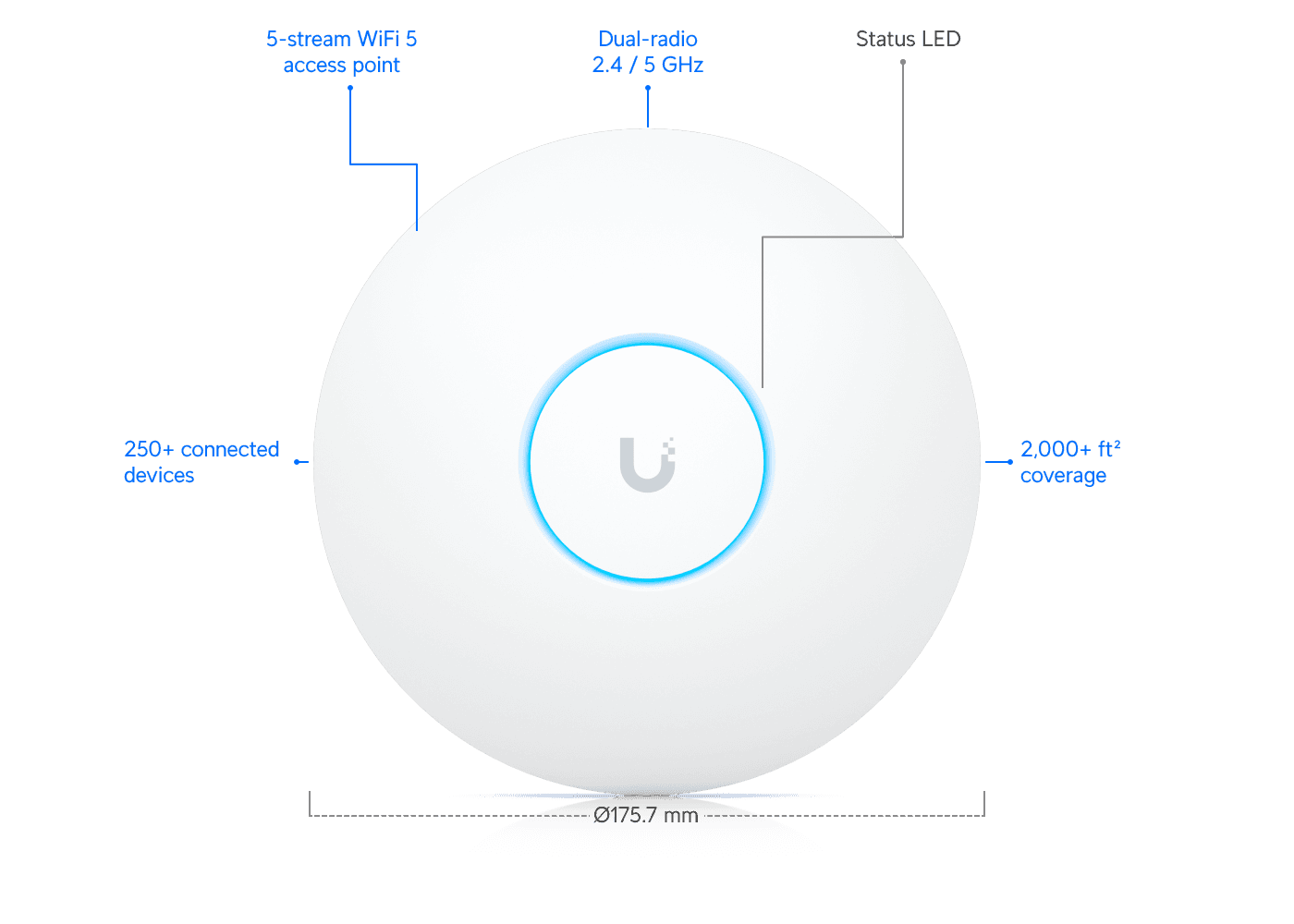

Dimensions Ø175.7 x 43.2 mm (Ø6.9 x 1.7")
Weight Without mount: 240 g (8.5 oz)
With mount: 315 g (11.1 oz)
Hardware

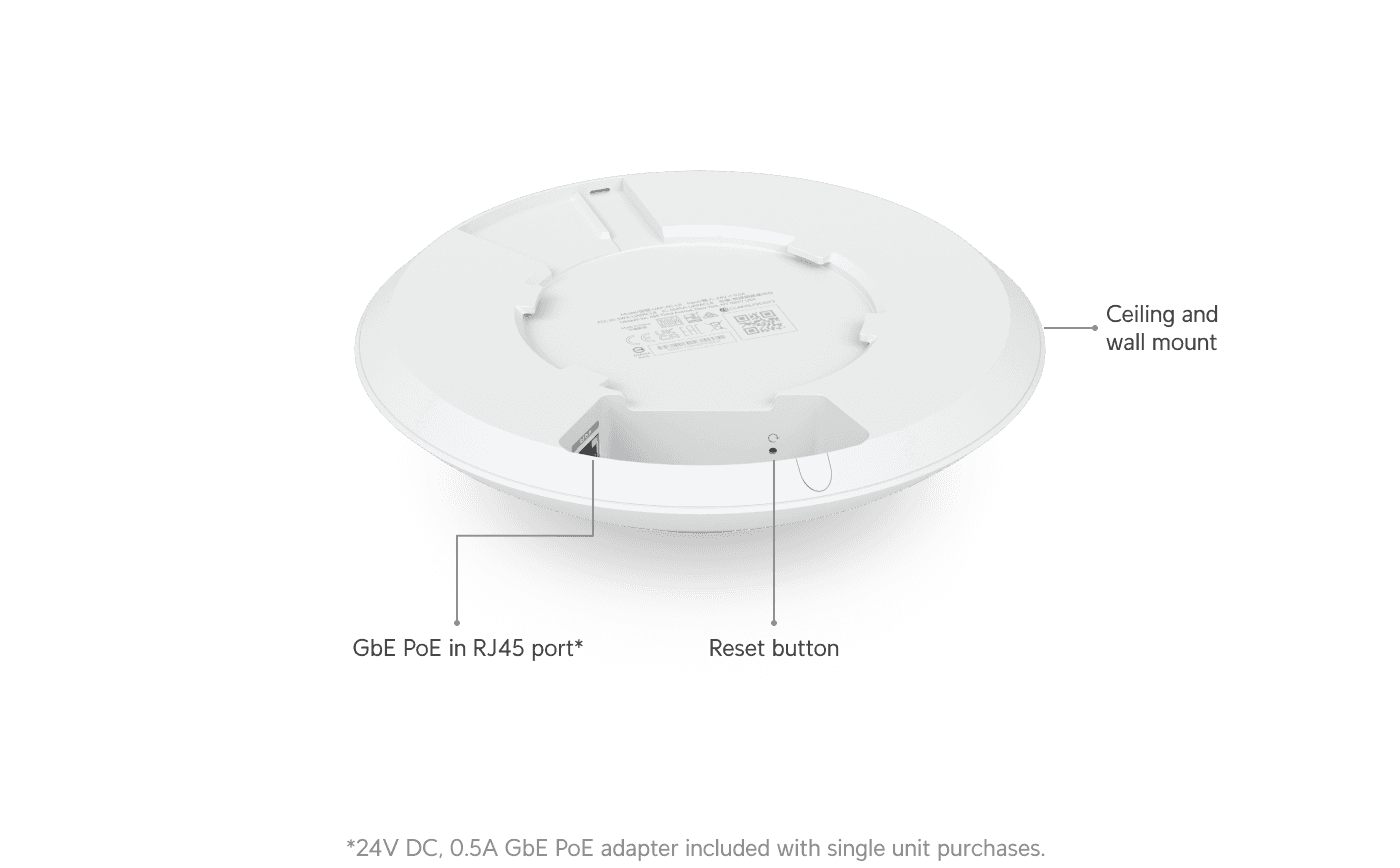

Networking interface (1) GbE RJ45 port
Management interfaceEthernet

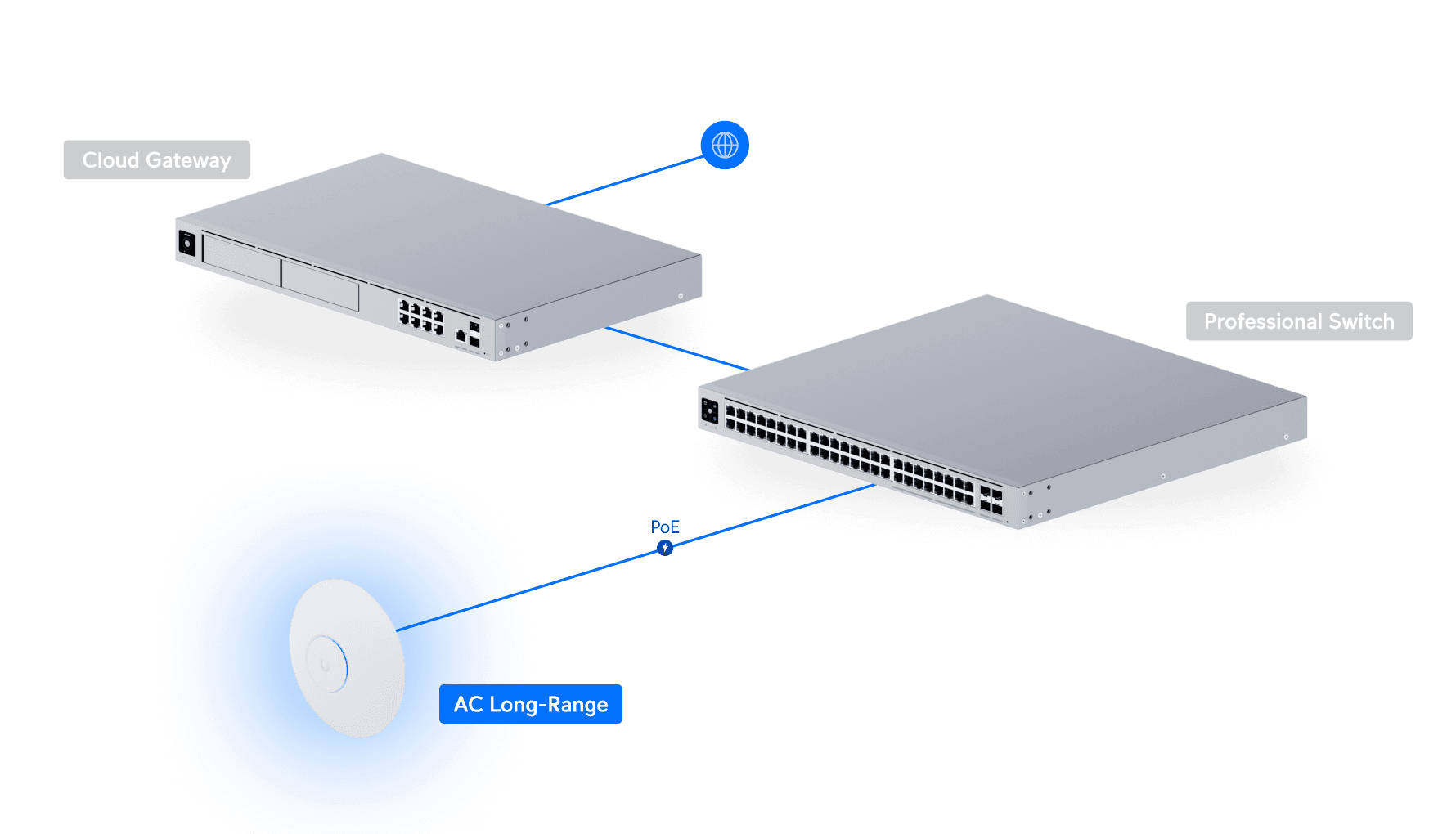

Power method PoE
Passive PoE, 24V (Pairs 4, 5+; 7, 8 return)
Power supply UniFi PoE switch
24V, 0.5A Gigabit PoE adapter*
*5-packs do not come with PoE adapters.
Max. power consumption 6.5W
Max.TX power
2 GHz
5 GHz
6 GHz

24 dBm
22 dBm
MIMO
2.4 GHz
5 GHz
6 GHz

3 x 3
2 x 2
Throughput rate
2.4 GHz
5 GHz
6 GHz

450 Mbps
867 Mbps
Antenna gain
2.4 GHz
5 GHz
6 GHz

3 dBi
3 dBi
Button Factory reset

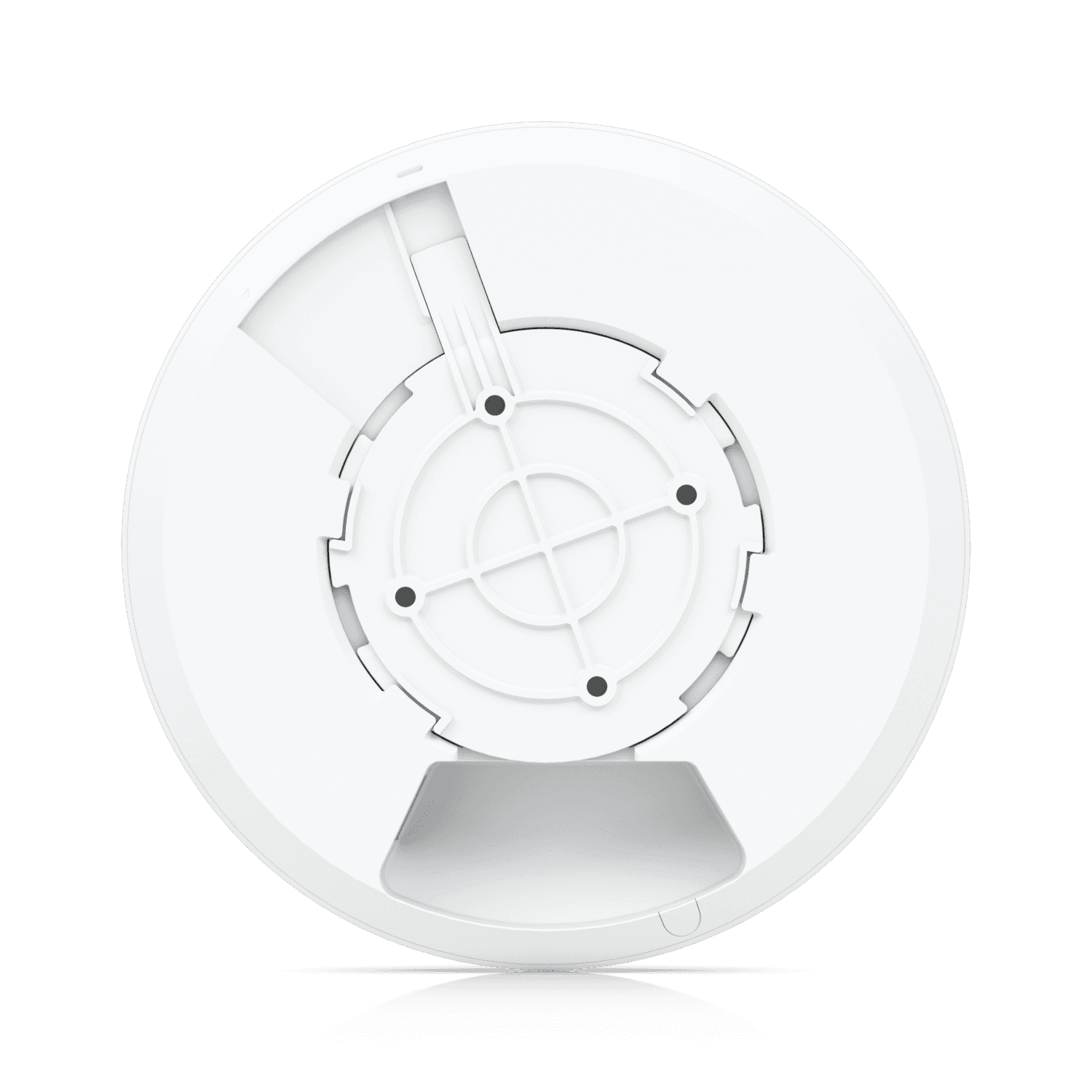

Mounting Wall, ceiling (Included)
Ambient operating temperature -10 to 70° C (14 to 158° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11 a/b/g/n/r/k/v/ac
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Power save Supported
WMM Voice, video, best effort, and background
Concurrent clients 250+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
