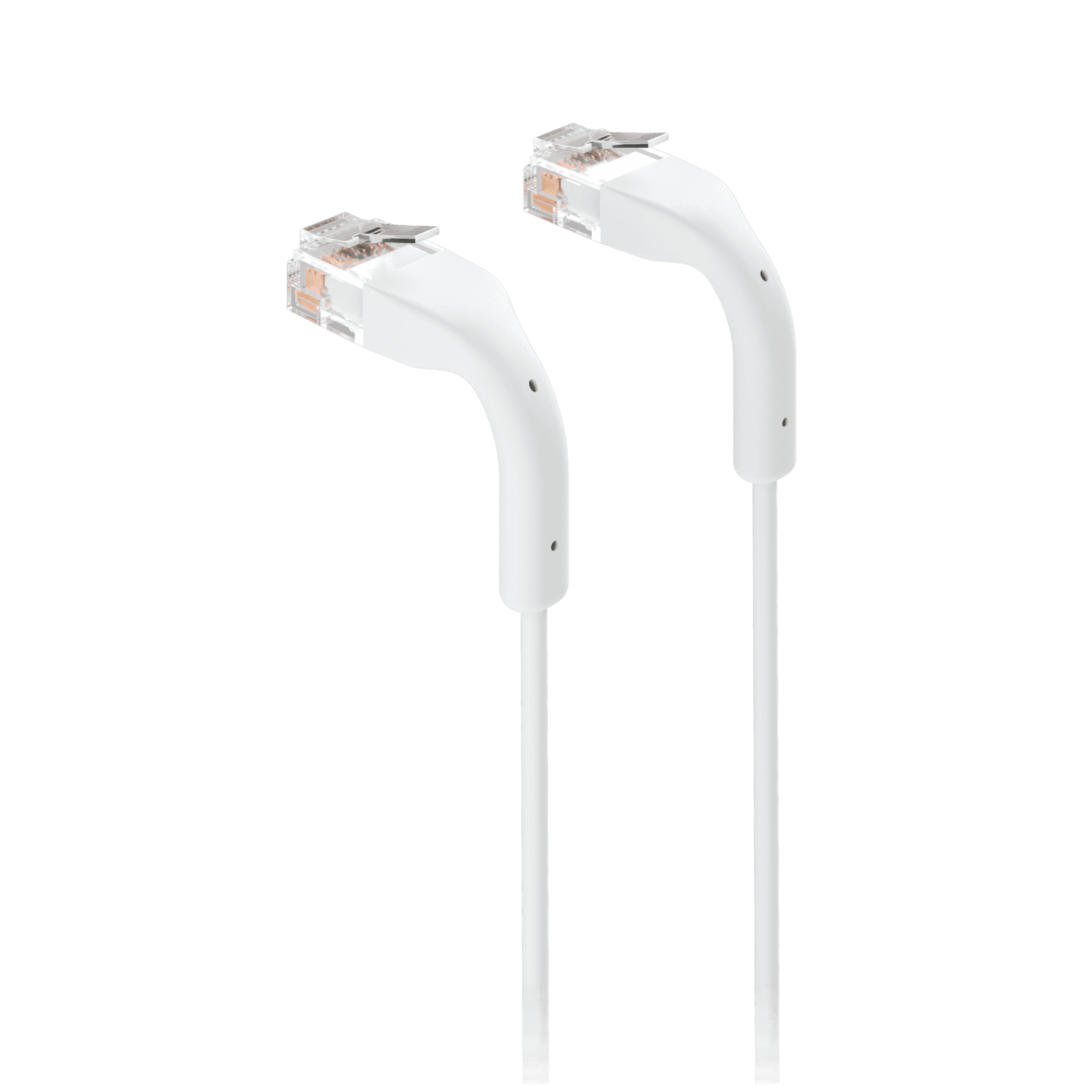

UniFi Patch Cable
UACC-Cable-Patch-0.2M-W
$2.49
UniFi Patch Cable
UACC-Cable-Patch-0.2M-W
$2.49
Ultra-thin patch cable with up to 10 GbE support and flexible, bendable boots for enhanced installation versatility.

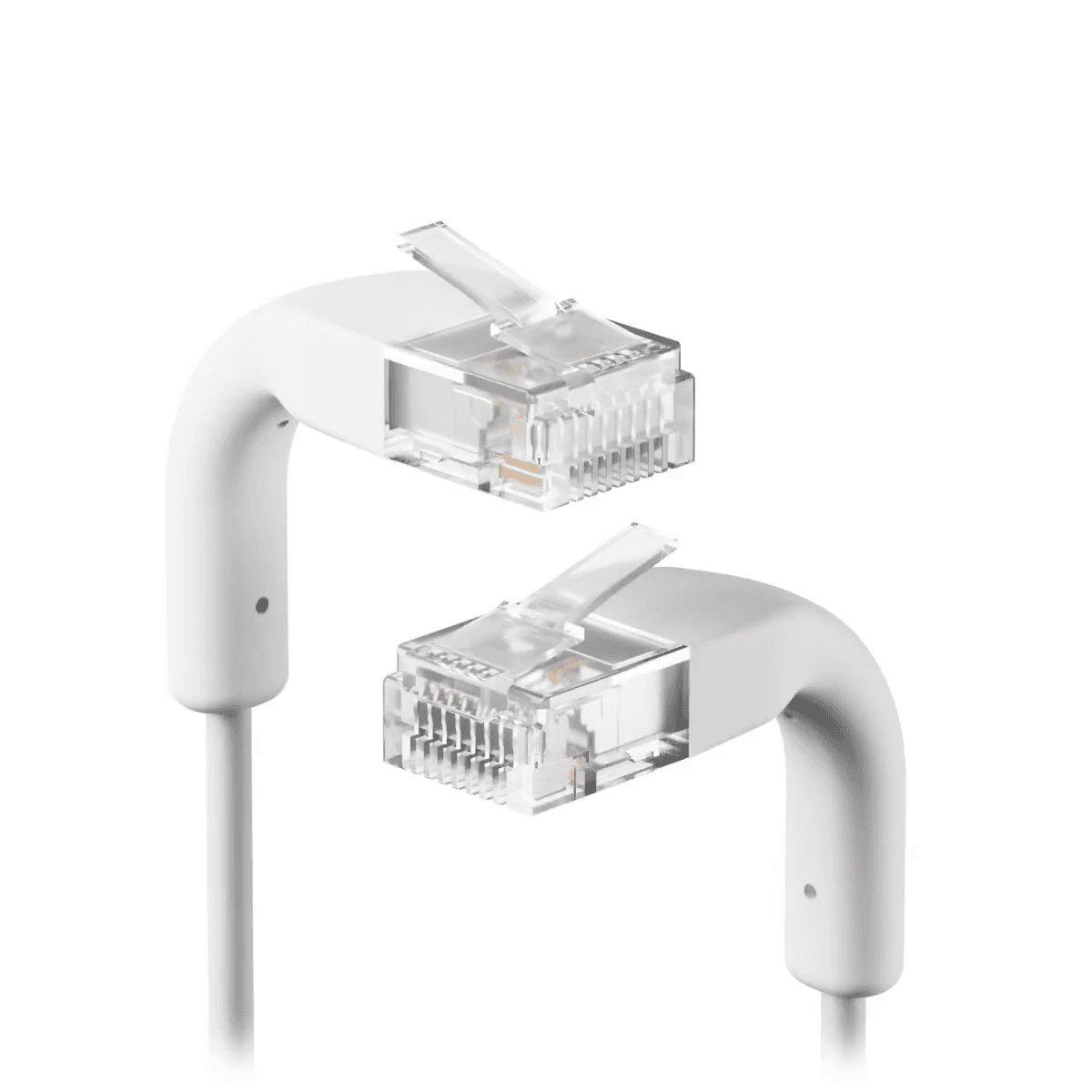

Bendable booted RJ45
2.5/2.9 mm outer diameter
Cable length: 0.2 to 15 m
Color: White
$2.49
1
Technical
Available Lengths
End-to-end: 0.2, 0.4, 1, 2, 3, 5, 8, 12, 15 m
(0.7, 1.3, 3.3, 6.6, 9.8, 16.4, 26.2, 39.4, 49.2 ft)

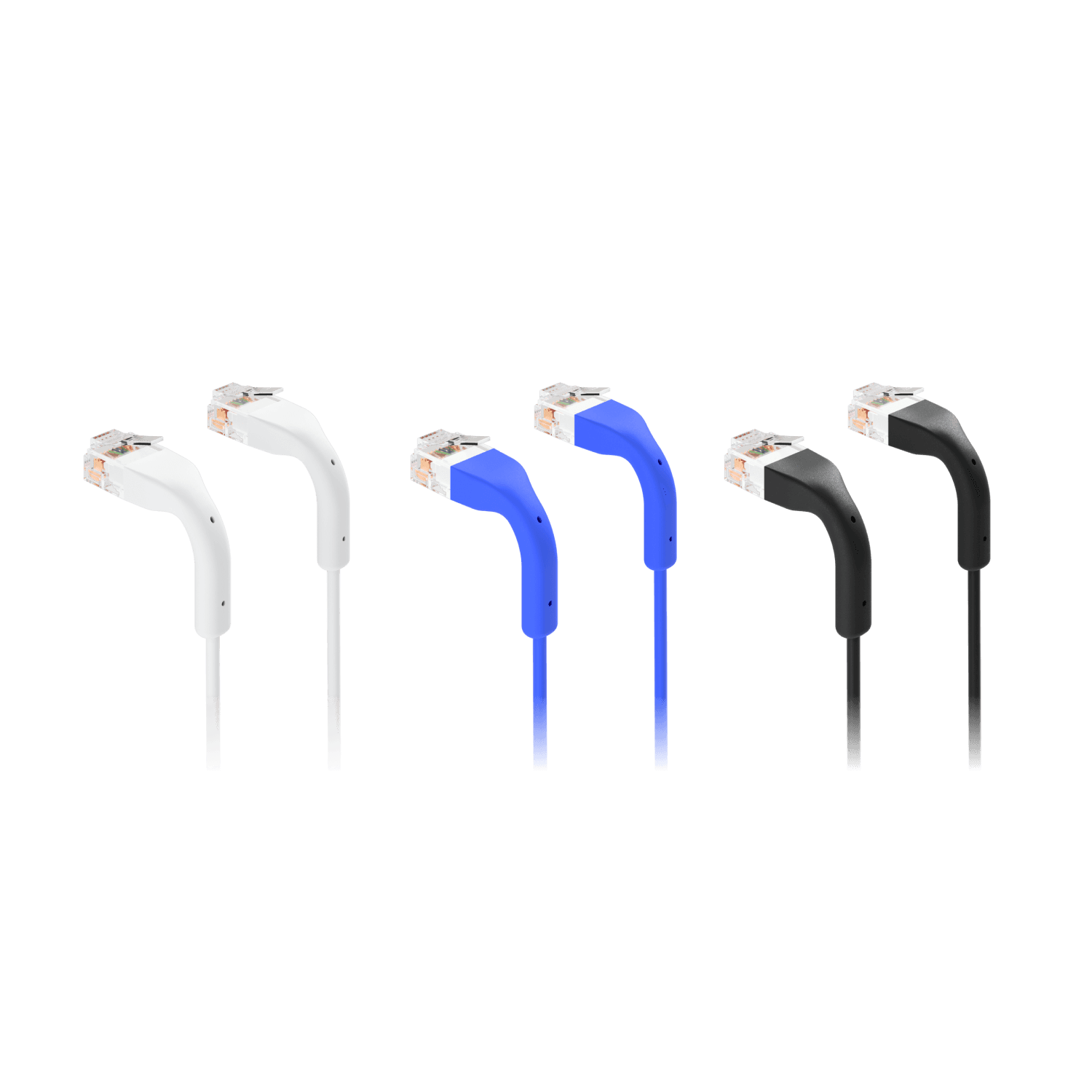

Available Colors
White, Blue, Black
Pack Options
Single Unit (0.2, 0.4, 1, 2, 3, 5, 8, 12, 15 m)
10-Pack ( 0.2, 0.4, 1, 2, 3 m)
24-Pack (0.2, 0.4, 1, 2 m)
50-Pack (0.2, 0.4 m)
Supported Data Rate
10 GbE
Supported PoE Type
Up to PoE+++
Connector
(2) Bendable booted RJ45
Operating Environment
Indoor
Cable
Jacket Diameter
0.2–8 m (0.7–26.2 ft): 2.5 mm (0.1")
12–15 m (39.4–49.2 ft): 2.9 mm (0.11")
Jacket Material
Thermoplastic elastomer (TPE)
Shielding Type
UTP
Conductor Type
Stranded copper
Conductor Wire Gage
0.2–8 m (0.7–26.2 ft): 34 AWG
12–15 m (39.4–49.2 ft): 32 AWG
Bendable Boot
Max. ±90° / ±45° (vertical/horizontal)
Bend Radius
0.2–8 m (0.7–26.2 ft): Min. 21 mm (0.83")
12–15 m (39.4–49.2 ft): Min. 24 mm (0.94")
Flame Rating
VW-1 (UL1581)
Standards
TIA/EIA-568-B.2
ISO/IEC 11801
Installation Temperature
-20 to 60°C (-4 to 140°F)
Ambient Storage Temperature
-20 to 75°C (-4 to 167°F)
Ambient Operating Temperature
-20 to 60°C (-4 to 140°F)
NDAA Compliant
✓
