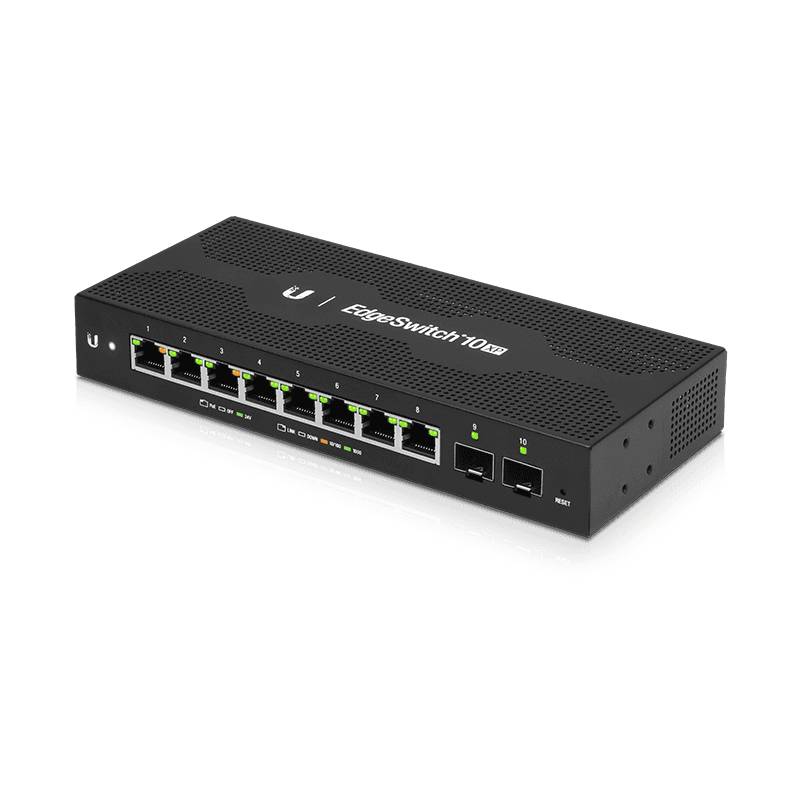

EdgeSwitch 10XP

EdgeSwitch 10XP
Sold Out
Compact WISP switch sporting (8) Gigabit RJ45 ports, each equipped with a 24V passive PoE output, and (2) SFP ports.

(8) GbE RJ45 ports

(2) 1G SFP ports

24V passive PoE support on all RJ45 ports

To subscribe to back in stock e‑mails.
EdgeMAX Universal Rack-mount Kit
Sold Out
Installation Guide
Technical Specifications
Dimensions207 x 31.1 x 90 mm (8.2 x 1.2 x 3.5")
Weight500 g (1.1 lb)
Networking interface(8) 10/100/1000 Mbps RJ45 ports
(2) 1 Gbps SFP ports
Management interfaceEthernet In-Band
PoE interface24V DC passive PoE (Pins 4, 5+; 7, 8-)
Total non-blocking throughput10 Gbps
Switching capacity20 Gbps
Forwarding rate14.88 Mpps
Power method24V DC, 2.5A power adapter (Included)
Supported voltage range9–30V DC
Max. passive PoE wattage per port15W
24V passive PoE voltage range24V
Max. power consumption
8W (Excluding PoE output)
LEDsSystem: status
RJ45 ports: link/speed/activity, PoE
SFP ports: link/activity
ESD/EMP protectionAir/contact: ± 24 kV
Shock and vibrationETSI300-019-1.4 Standard
Ambient operating temperature-10 to 50° C (14 to 122° F)
Ambient operating humidity5 to 95% noncondensing
CertificationsCE, FCC, IC
